If the swiveling arm on your guitar's wall mount is hanging down and isn't responding to pressure like it normally does, this quick guide will show you how to fix it. Wall mounts are a stylish and secure way to display your stringed instruments, but less so if there's a risk of your favorite bass or guitar falling off the wall!

All that you need is a Phillips #2 screwdriver and a few minutes of your time.

  1. RmVqOLYEOycFVBfj
    RmVqOLYEOycFVBfj
    VApqGNUcYSDrLAvN

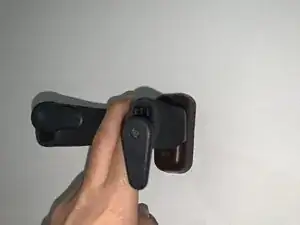

    • If the swivel mechanism on the arm of your guitar wall mount is hanging down and isn't responding to pressure, odds are the arm has become disengaged from the gears.

  2. LcmvPLXUNOCRYkaA
    LcmvPLXUNOCRYkaA
    jndQaFVE4tkEu4lN
    itJW6DCaTVXMDEBR

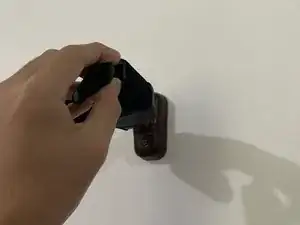

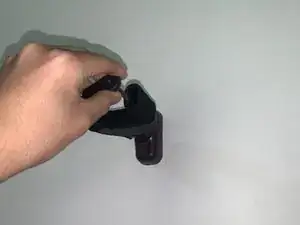

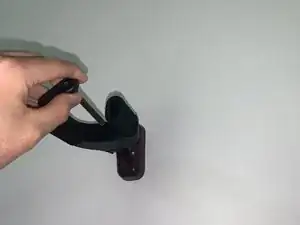

    • Remove the loose arm.

  3. exOr3JArESPGOBNJ
    exOr3JArESPGOBNJ
    gtO56pZghgWhsBNr

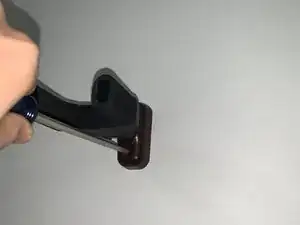

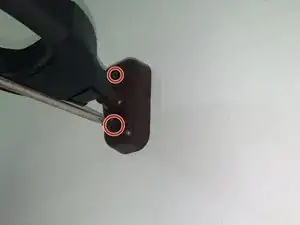

    • Remove the two 6.5 mm screws from the mount with a Phillips #2 screwdriver.

    • Remove the whole mount from the wall.

  4. UkOU1usHELycwIcn
    UkOU1usHELycwIcn
    EtkOOXWJjVRJWnV6

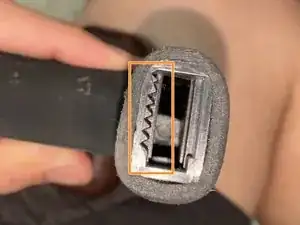

    • Insert the arm's shaft inside the marked circle.

    • Make sure that the gears in the bracket are aligned.

  5. R55bLlNaCNpkWgZr
    R55bLlNaCNpkWgZr
    dhvNw6K5vxNGViGJ

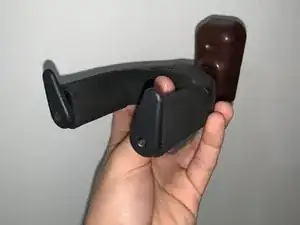

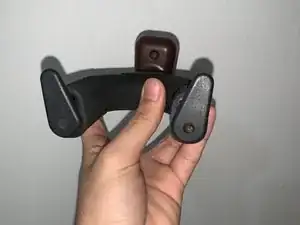

    • The mount should look like this after correctly inserting the loose arm piece.

  6. JARjJCbnOjH5bIAi
    JARjJCbnOjH5bIAi
    ZXlnVOOHaCIHYGAS
    BqHLcfuKPlOlMcoZ

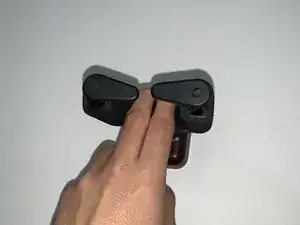

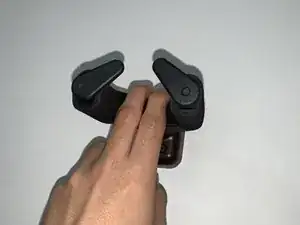

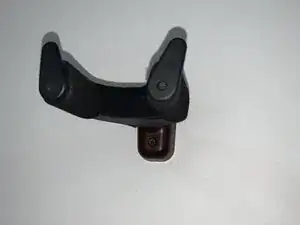

    • Make sure the arms swivel appropriately with pressure and without pressure.

Abschluss

Screw your mount back onto the wall, and you're good-to-go!
