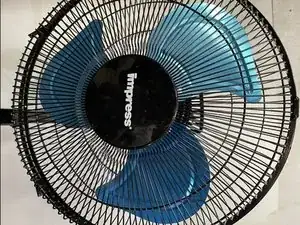

Your Impress Mighty Mite oscillating fan(more specifically known as Impress Mighty Mite Fan (model# IM-714B) might be making a lot of noise due to it becoming loose, this can be annoying when you most need your fan in days of extreme heat. This is due to a big knob that holds the fan unscrewing itself due to its consistent usage. This knob needs to be reached by disassembling the fan in order to tighten it. To do this procedure not much experience is needed just a good amount of patience, an ability to follow instructions, and knowing how to handle a screwdriver.
Make sure the fan is not connected to the power before commencing this procedure.
Werkzeuge
-
-

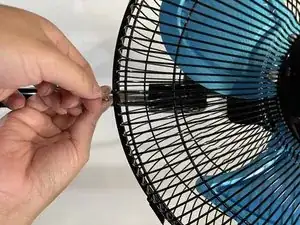

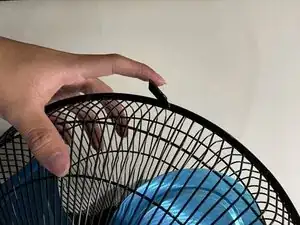

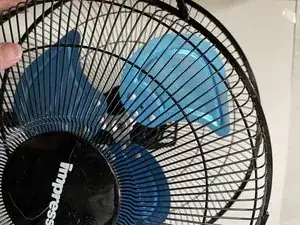

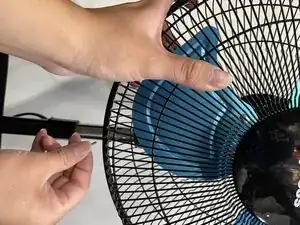

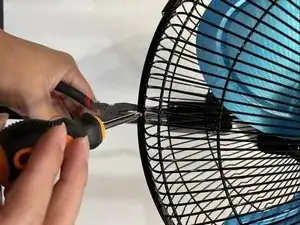

Remove the single 0.8 mm screw using a Phillips #2 screwdriver. Use a pair of pliers to hold the hexagon nut so that it makes the process easier.
-
-
-

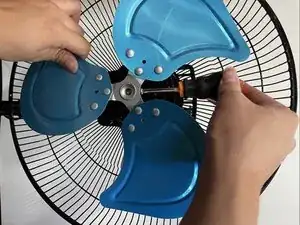

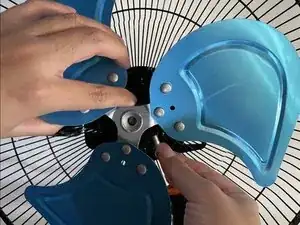

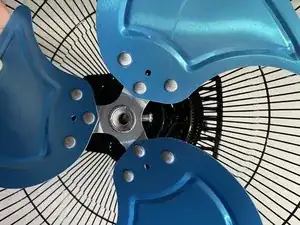

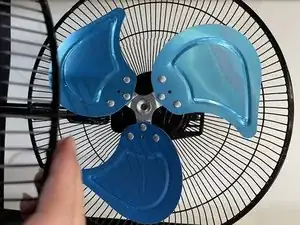

Use the Phillips #2 screwdriver to remove the 1.4 mm screw that holds the fan blades to the fan.
-
-
-

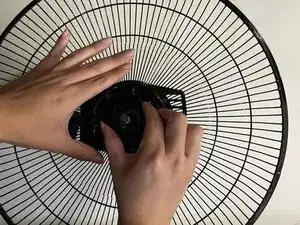

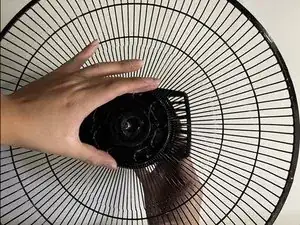

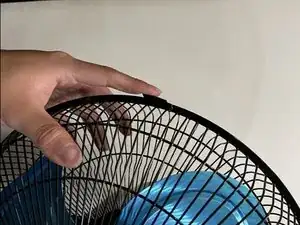

Position the fans back cover correctly aligned with its placeholders.
-

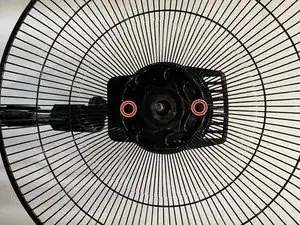

The placeholders are small and black which are not too visible on camera. There are two placeholders and they are shaped like cylinders.
-
-
-

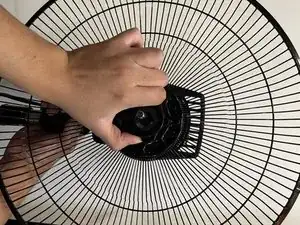

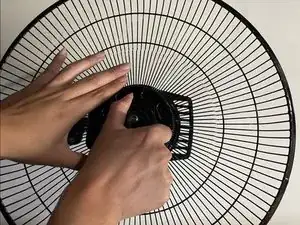

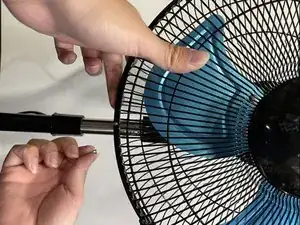

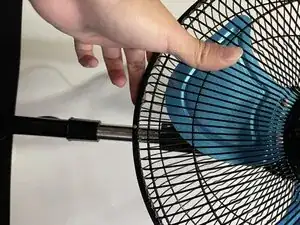

Twist the big knob clockwise, that holds the back cover, until it is tight and you can no longer twist.
-
-
-

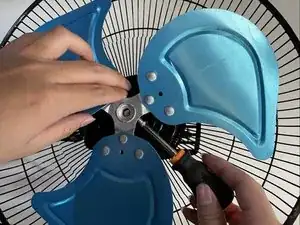

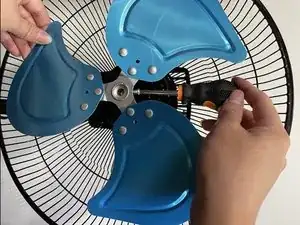

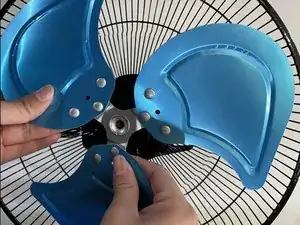

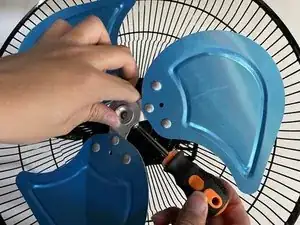

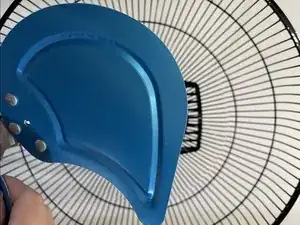

Place the fan blades back onto the fan and start screwing the 1.4 mm cross head screw into the clockwise direction until it is flat and can no longer screw.
-
-
-

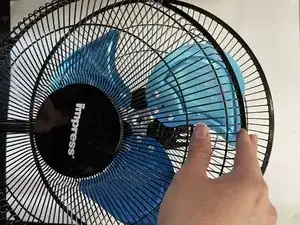

Place the front cover back onto the fan with the punch-holes aligned so that the small bolt can go through.
-

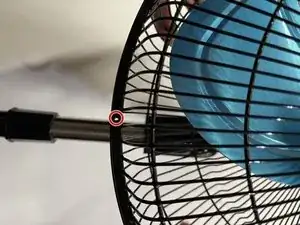

These punch-holes should be aligned and you should be able to see through it.
-
-
-

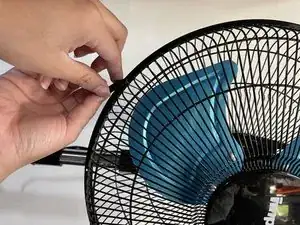

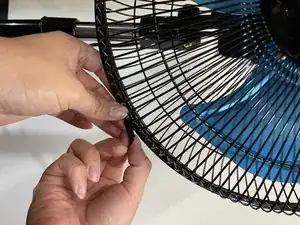

Place the .8 mm cross head screw back inside the punch-hole and start screwing the hexagon nut by hand so that this process is easier.
-
To repeat the process start from step 1.
