How to Repair a Portable Fan

Geschrieben von: Isaac MacMillan
  • Kommentare: 5
How to Repair a Portable Fan

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

This fix will restore your fan's original power and quiet operation. This fix does not require new parts, but does require a #1 Phillips head screwdriver, an 8mm wrench or socket, and a medium or low viscosity lubricant.

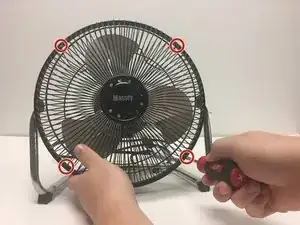

  1. v3c2gDmcrHBXCOij
    v3c2gDmcrHBXCOij
    OglHO1CwMLUPVNTU

    • Unplug the power cord before beginning.

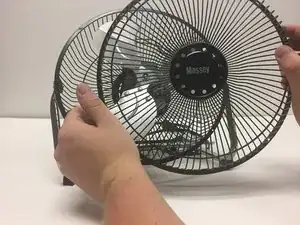

    • Loosen the 4 phillips screws around the rim and remove the front of the cage

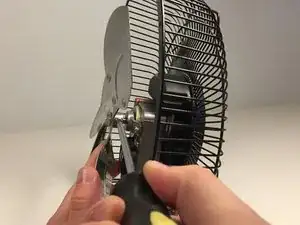

  2. dTDKv2Foof4HeYyL

    • Remove the fan blade by loosening the screw on the shaft while pulling up.

    • The screw does not need to be fully removed before the blade will slide free.

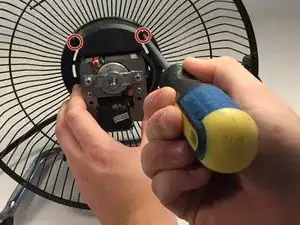

  3. LV4lbYBhpsqxmJHY

    • Remove the wiring cover located above the fan motor.

    • There are 2 more screws holding the back mounting plate and cage together. They will be removed in a later step

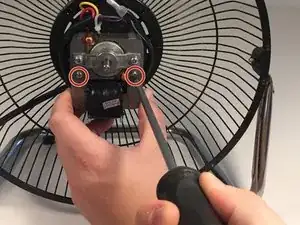

  4. 4VbaScNoxAaPSphc

    • Remove the motor from the mounting plate by loosing the 2 smaller screws on the front.

  5. WsoTygF4xVE2rhlR

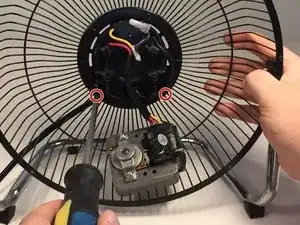

    • Remove the final 2 screws holding the mounting plate to the cage.

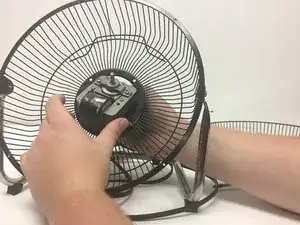

  6. o2cTuVFvfwbiq3S3

    • Carefully pass the motor through the opening at the back of the cage.

    How do I change the speed control switcj

    Ron Nobriga -

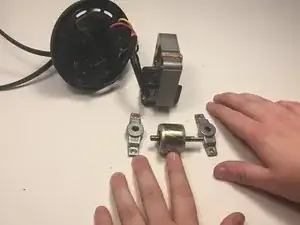

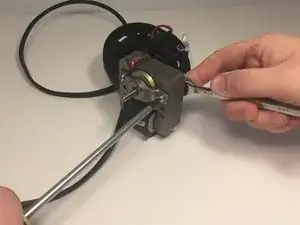

  7. ZkpFwNkJUFYZ4Qdf
    ZkpFwNkJUFYZ4Qdf
    u2BLi2Im4yvMLMYg

    • Using an 8mm wrench and phillips screwdriver, remove the magnet mounts from the body of the motor.

    • The magnet will slide out of the motor . Inspect the magnet and motor for anything that may cause a hang-up.

    • Do not over-tighten the magnet mounts during reassembly. Over-tightening may cause the motor to bind.

    The 8 mm nut is on very tight. I used an 8 mm socket (1/4” drive).

    Peter Wakamatsu -

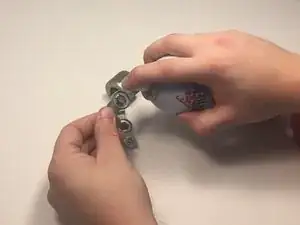

  8. WOS1mtj6JcuDEuRu
    WOS1mtj6JcuDEuRu
    gVvC1DPOBIQ2G4kU

    • Clean and lubricate the magnet shaft and mounting brackets

    • Any medium or low viscosity lubricant will do.

Abschluss

To reassemble your device, follow these steps in reverse order.

Tinte & Feder

Isaac MacMillan

Mitglied seit: 02/10/17

185 Reputation

3 Kommentare

What are the chances the exact fan that I need to repair would be here? I'm about to put it back together… Let's see if it worked! 9/3/19, 10:45 pm.

Clark Nova -

OK. It's back together but the fan doesn't spin. I feel the motor doing… Something. It vibrates softly. So, now to figure out why it's not spinning.

Clark Nova -

hello…my fan wouldn't work until I tilt the head upwards..what could be wrong pls???

adewale ogunbona -
