For this guide, we outline the process of replacing a leaking set screw tub spout. Sometimes when a shower diverter becomes too old, it can’t block the water flow to divert the water to the showerhead. Replacing a leaky tub spout leads to an enormous amount of water and energy savings. Furthermore, a leaky tub spout can cause an expensive water bill as well. The heavier the leak, the more money you will have to end up paying.

  1. M32PqVThw3iqnDf2
    M32PqVThw3iqnDf2
    PD13yII2s3kEYIZG

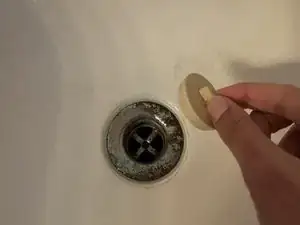

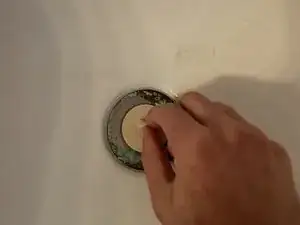

    • Cover the shower drain with a plug or a piece of cloth to prevent the screw from falling in.

    • Make sure the water is turned off.

  2. AUhAp6QJHUG2ZAyD
    AUhAp6QJHUG2ZAyD
    PafSOLRvh5IOegoT
    Wimj3FGpkA4RNZZl

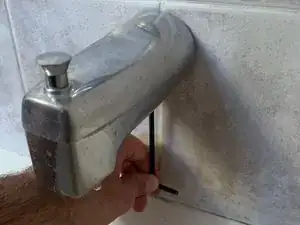

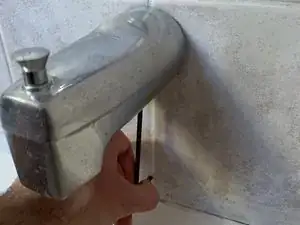

    • Using an 5/32" Allen key, loosen the screw located under the spout.

    • You should not remove the screw. But instead, untighten the screw until it's loose.

  3. H1rNvFxdkMXuKk5T
    H1rNvFxdkMXuKk5T
    vGPXfE2nNRLrrmeC
    fPvdJmHl3CGuJTNq

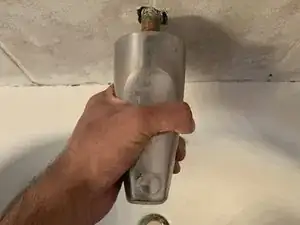

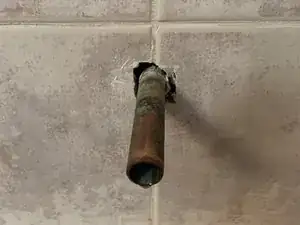

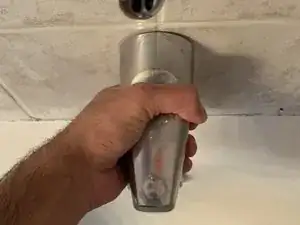

    • Gently pull out the spout using your hand and set it aside somewhere.

    • Protip: Wiggle the spout side to side to help pull it out.

  4. GqbhxnspYCrB6nfa
    GqbhxnspYCrB6nfa
    J3Cp1CMYj4JFUCMN
    OINCoxvUwRWrJJIq

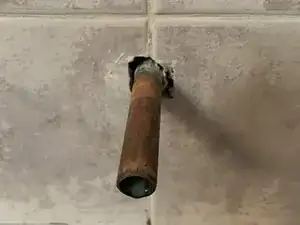

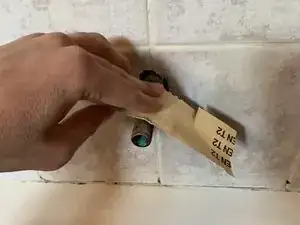

    • Using sandpaper or a sponge, gently rub and clean the pipe.

    • This allows for the new set screw tub spout to easily slip on.

    • Once you have finished cleaning the pipe, wipe off the dust with a piece of cloth or paper towel.

  5. Skt4C3jqLyDCFMFq
    Skt4C3jqLyDCFMFq
    B6NQTQGmsoPvwQim
    46vIxKrnBOEviDDQ

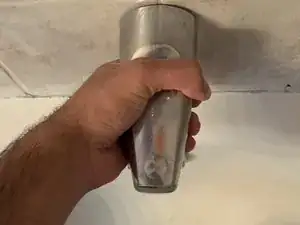

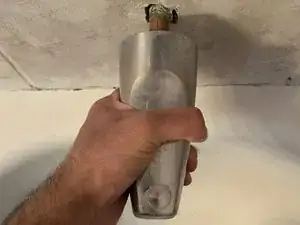

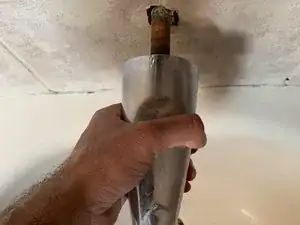

    • Take your new set screw tub spout and slide it in gently into the wall.

    • Protip: Wiggle the spout side to side to help push it back in.

  6. vnudHElK5caBOaPc
    vnudHElK5caBOaPc
    gXx1ox1IWZucvmDH
    KUKRAtNILjtI5E45

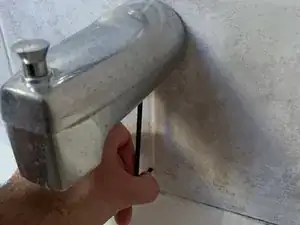

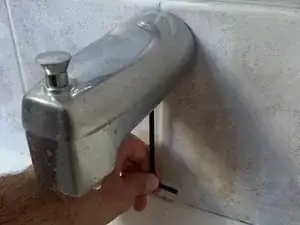

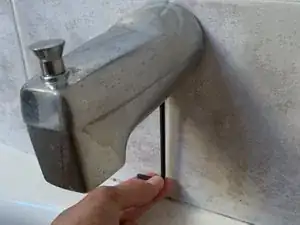

    • Retighten the set screw using the 5/32" Allen key.

Abschluss

Turn on the bath water to ensure the set screw tub spout has no leaks and is working as intended.
