How to Replace the Adhesive for Your Motorola Phone

Geschrieben von: Spencer Day
  • Kommentare: 0
How to Replace the Adhesive for Your Motorola Phone

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 30 Minuten

Einleitung

Follow this guide to replace the back cover adhesive on your Motorola phone. This process is a general procedure that applies to a Motorola phone with a plastic back cover.

If your back cover comes off without the camera bezel, follow this guide.

  1. RctiZa53worXe1HI
    RctiZa53worXe1HI
    yLKgrJTLhedYmMEb
    4lkUETWJEiB1nKRQ

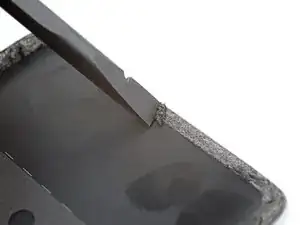

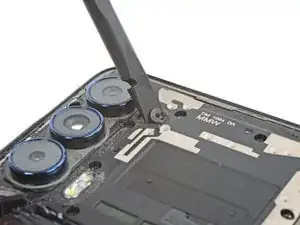

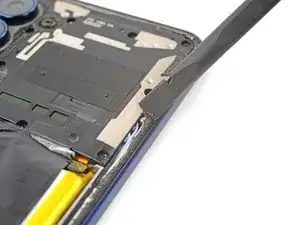

    • Use the flat end of a spudger or your fingernail to scrape and remove the old adhesive from the phone body and back cover.

    • Pay attention to areas around the cameras and outer edge of the phone. Any remaining chunks will prevent your part from aligning properly.

  2. YMuZUE3Ji6BIoJVY
    YMuZUE3Ji6BIoJVY
    DSTBEbbe124KPJdX

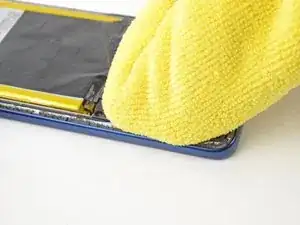

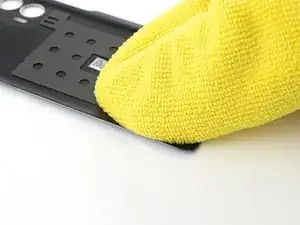

    • Apply a few drops of high-concentration (90% or higher) isopropyl alcohol to any remaining adhesive.

    • Use a microfiber cloth to remove the remaining adhesive.

    • If you are having trouble removing the adhesive, apply a few drops of alcohol to the adhesive and scrape it with a spudger.

  3. 33AbJiID4mNZMBAA

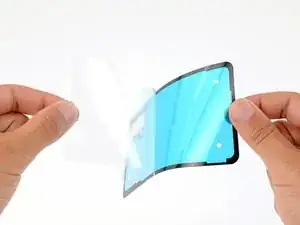

    • Remove the clear protective film from the new adhesive.

  4. CwaFxymmdjCXqeL1
    CwaFxymmdjCXqeL1
    Ahpq5FVplD4g1GNH

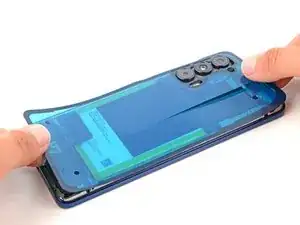

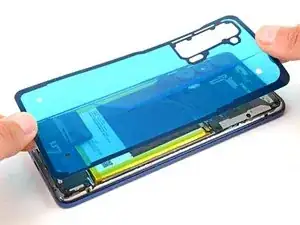

    • Be very careful during this step! The adhesive is very sticky, and can't be repositioned once it sticks. Misaligned adhesive can lead to an improper seal.

    • Before placing the adhesive on the frame, use the cameras to ensure the adhesive's proper alignment.

    • Lay the adhesive on the frame.

    • Press down firmly on the adhesive along the perimeter of the midframe to secure it to the phone.

  5. PnFWLXnNXF5vsiLq
    PnFWLXnNXF5vsiLq
    uIjpglD1KplMk1x6

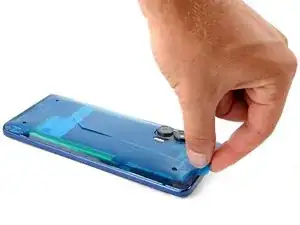

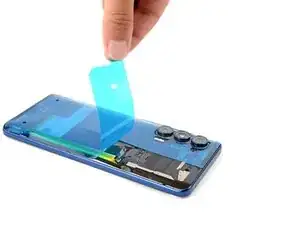

    • Grab the blue protective film's pull tab on the top of the phone and pull towards the bottom of the phone.

    • Pull carefully so the adhesive does not separate from the phone.

  6. 1TJFTRAB4GGQemkq

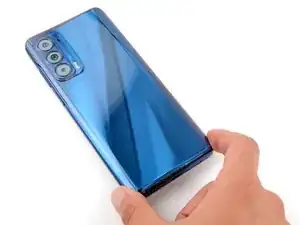

    • If your phone has a rear fingerprint sensor, make sure to secure it in its cutout on the back cover before proceeding.

    • Align the back cover over the back of the phone.

    • Press down firmly for one minute along the perimeter of the back cover and camera bezel to secure it with the new adhesive.
