How to Replace the Propane Tank on a Toyota Forklift 8FGCU15

Geschrieben von: Dai-John-nae Williams
  • Kommentare: 0
How to Replace the Propane Tank on a Toyota Forklift 8FGCU15

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 15 Minuten

Einleitung

If you need to replace the propane tank in your Toyota Forklift Truck (Model: 8FGCU15), follow this guide.

This style of forklift is quite common in warehouses, and the gas tanks frequently run dry. This is an OSHA compliant step by step guide to safely replace an empty propane tank.

While changing the tank, you will need to wear the the  appropriate Personal Protective Equipment (PPE). Please be sure to acquire a pair of goggles and a pair of propane resistant gloves before beginning this project.

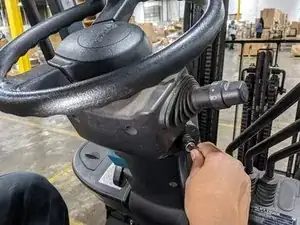

  1. vZjRkQMGd23Ld3gZ
    vZjRkQMGd23Ld3gZ
    1bCc2WWdVpmEZOXZ
    kSbfmUIaVmwbhu1E

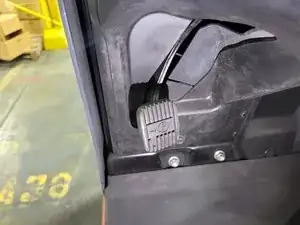

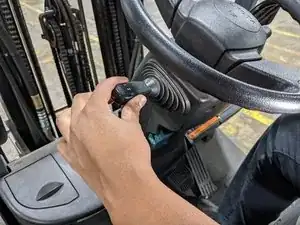

    • Put the shifter in neutral, turn the engine off, and engage the emergency brake.

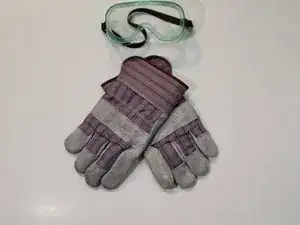

  2. TkaDGQRq4kSgZcIi
    TkaDGQRq4kSgZcIi
    KZKxBE1NIu6MsHig

    • Put on the gloves and goggles.

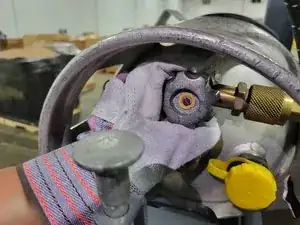

    • Turn the shut off valve clockwise to close the empty tank.

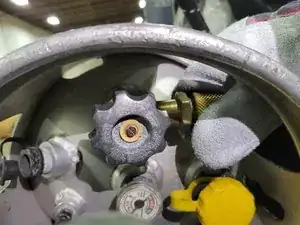

  3. OAPD6YVFv4OtYRGx
    OAPD6YVFv4OtYRGx
    wRu3CIOQ15EfZXRH

    • Disconnect the truck’s gas hose from the tank’s forklift adapter.

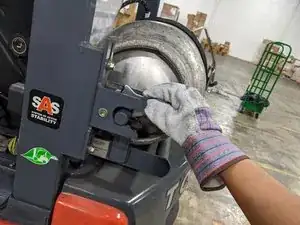

  4. rc2MKpHDDqfAqYdc
    rc2MKpHDDqfAqYdc
    E2bEELqCGGHEZLOL
    MgocYjZFRKAKHQuS

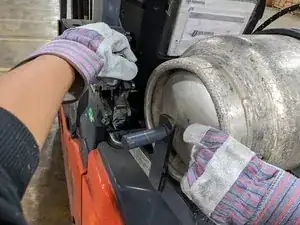

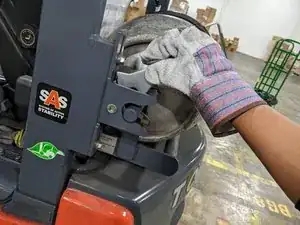

    • Look at the rack securing the tank to the truck.

    • Push in the latch on the left-hand side while simultaneously pulling the entire rack back towards you.

    • This allows the rack to swing out from the truck, creating space for you to release the much larger latch holding the tank to the rack.

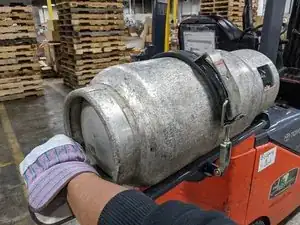

  5. MFtKyMd5CXT2LkDM
    MFtKyMd5CXT2LkDM
    LRS1SGXvyuA5N2Jr
    btrN1VTC4wRRCScG

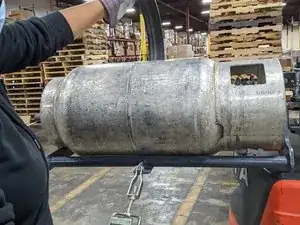

    • Release the latch holding the tank to the rack.

  6. DZBQPu3hJgFU1WRJ
    DZBQPu3hJgFU1WRJ
    WubB6XfLiyCjcCJy
    jbAQFRyBIZmNcLmE

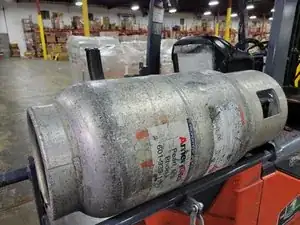

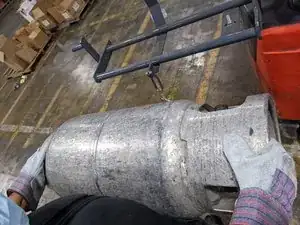

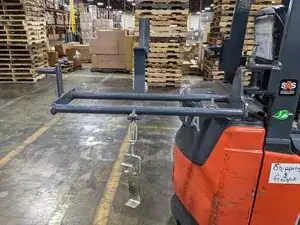

    • Remove the empty tank.

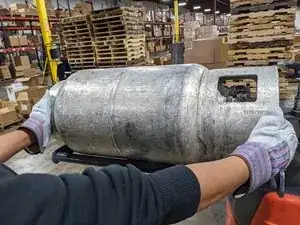

  7. IRQMEOSJjZfsTGAb
    IRQMEOSJjZfsTGAb
    6JC1CITyVRLU1WJO

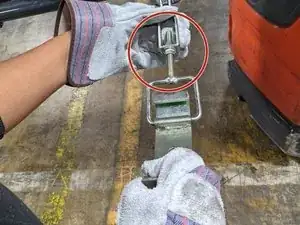

    • Position the new tank in the rack so that the forklift adapter is facing away from you.

    • This is to make sure the adapter and gas hose will line up once the rack is reconnected to the truck.

    • If needed, rotate the latch clockwise/counterclockwise before closing to loosen/ tighten the latch.

    • Some tanks may vary in width.

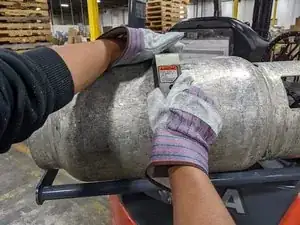

  8. A4Z23Se1WldtT5Hx
    A4Z23Se1WldtT5Hx
    1GqE6Cg6kSGJJPpV
    gdyZZRuKdTrtdiHa

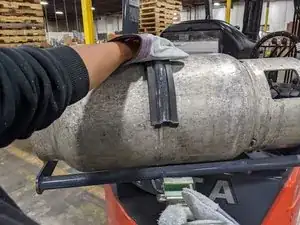

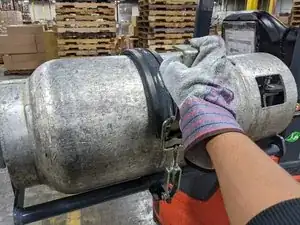

    • Clamp the tank to the rack.

  9. ltgYdfNlhJid3Kgs
    ltgYdfNlhJid3Kgs
    5EPAQ2owFQ5XWODT

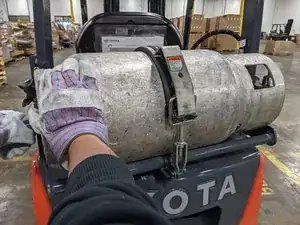

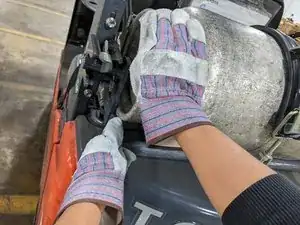

    • Secure the rack to the truck.

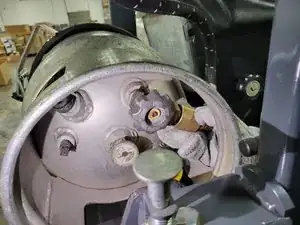

  10. yhOblQm542ww2gPD
    yhOblQm542ww2gPD
    gxBstBbolssvSEqV
    WuDhCjk1fvDN5aOS

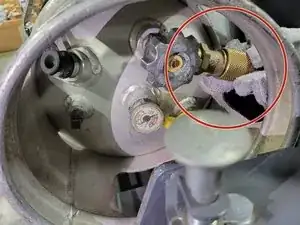

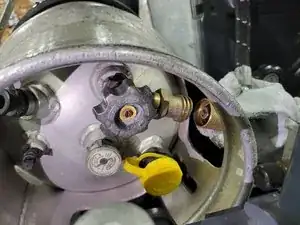

    • Carefully screw the gas hose onto the forklift adapter.

    • It is important to keep the hose and adapter straight while tightening. If the alignment is askew, the hose will not tighten all the way and may cause liquid propane to leak from the tank once opened. This can potentially cause frostbite if in prolonged contact with bare skin.

    • Please be sure to wear the required PPE to protect your hands and eyes in case of leakage.

  11. jELTnebhZ24LmEGP

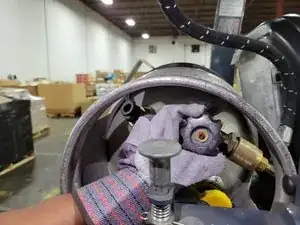

    • Once you are sure the connection is secure, turn the shut off valve counterclockwise to open the tank.

  12. VvtPsDWKldZYfowW

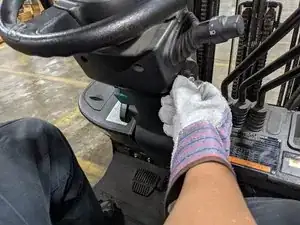

    • Crank up the forklift.

Abschluss

If done properly, there should be no drips or hissing, and little to no smell of propane. The engine should start at once.
