If your Samsung NP300V5A-A08US Laptop is not connecting to your Wi-Fi or experiencing intermittent internet connections you may have a faulty Wi-Fi card. Use this guide to replace the Wi-Fi card. Before beginning, make sure to completely power down your laptop and remove any external devices and chargers.
Ersatzteile
-
-
Unplug all power cords and USB devices that are connected to the computer.
-

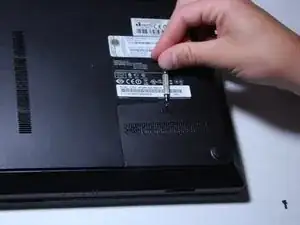

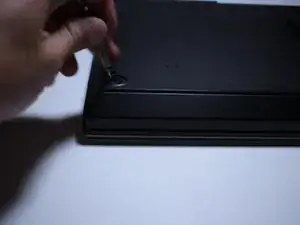

Using a Phillips #00 screwdriver, remove the 4.5mm screw on the panel located at the bottom right of the computer.
-
-
-

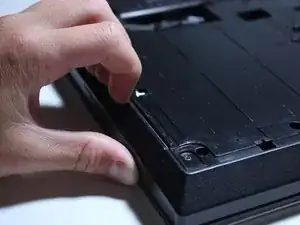

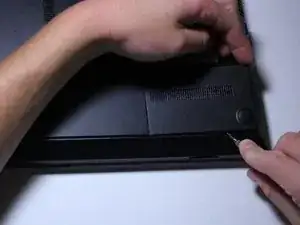

Pry apart the plastic clips near the screw hole using a plastic opening tool.
-
Use your finger and the opening tool to pry up the plastic cover.
-
-
-

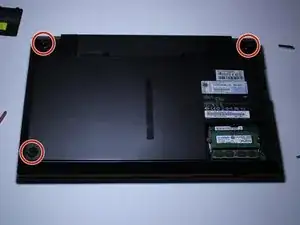

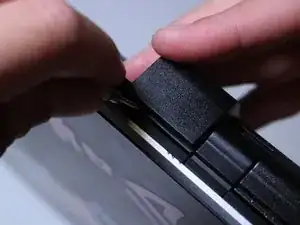

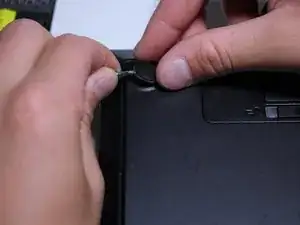

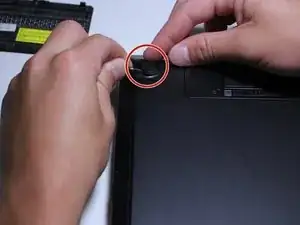

Pry off the rubber pads on the remaining three corners of the computer using the tip of the opening tool.
-
-
-
Remove the battery by sliding the small tabs in the directions of the arrows printed on the computer.
-
Push the battery in a forward motion to slide it out. Make sure to keep the tabs held in the direction of the arrows.
-
-
-

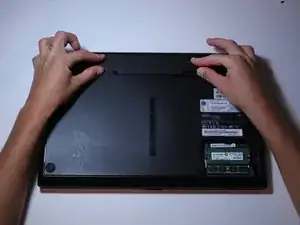

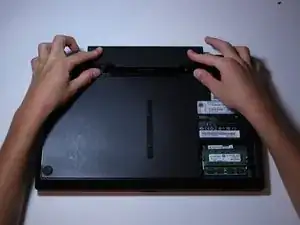

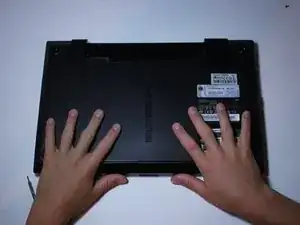

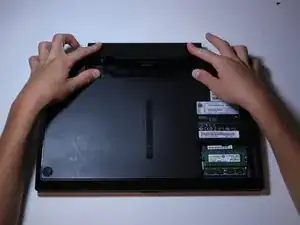

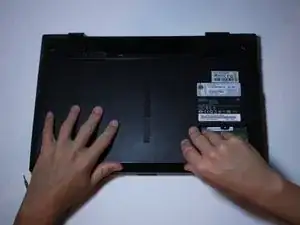

Put your hands on the back panel and use pressure to slide the panel down a few millimeters (as shown in the photo).
-

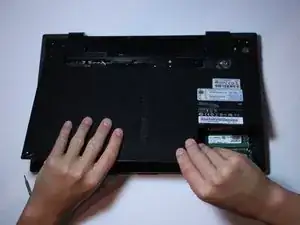

Slide the back panel down and then lift it off.
-
-
-

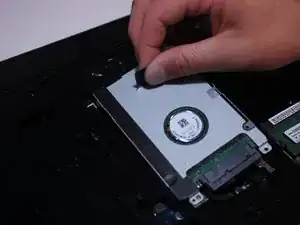

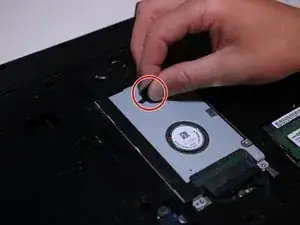

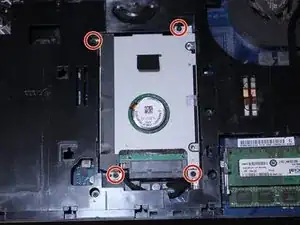

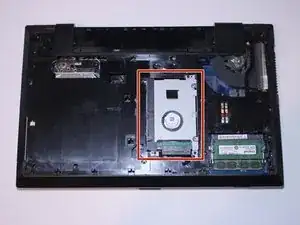

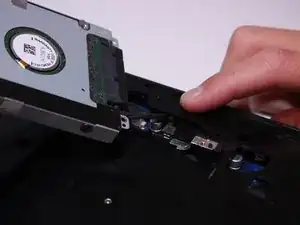

While holding onto the black plastic tab, pull up and to the right to remove the hard drive.
-
-
-
Gently pull on the wire harness to get it out of the crevasse.
-

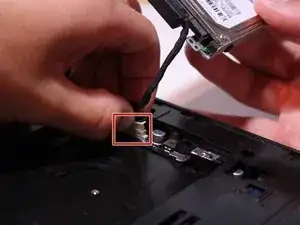

Carefully wiggle the white plastic connector on the computer back and forth until you are able to disconnect the wire harness.
-
-
-

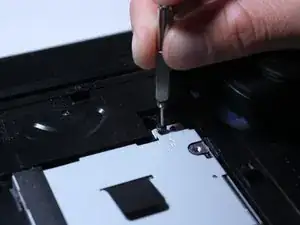

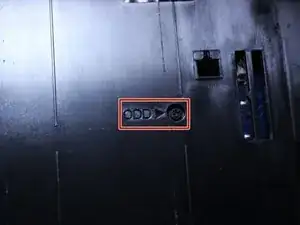

Using a Philips #00 screwdriver, remove the 6.5mm screw located next to the "ODD" print as indicated in the photo.
-
-
-

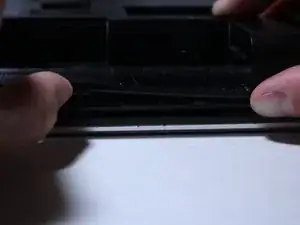

Stick your fingernails between where the optical disk drive slides out and the plastic frame of the computer.
-

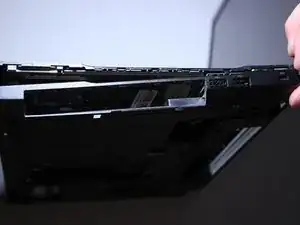

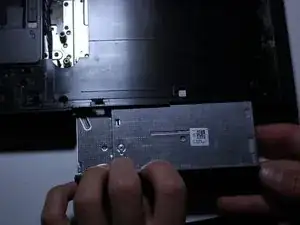

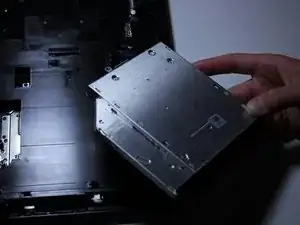

Using your hand (you might need to use both), pull outwards to slowly remove the optical disk drive from the computer.
-
-
-

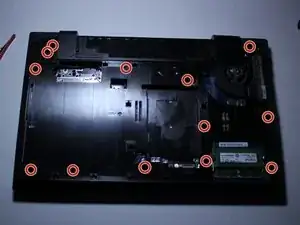

Using a Phillips #00, remove the thirteen 6.5mm screws.
-

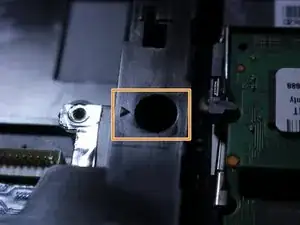

Each screw location is designated by an arrow icon as shown in the second picture.
-
-
-

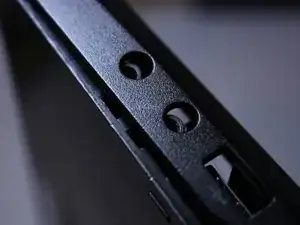

Locate the discrete line between the two pieces of plastic on the side of the keyboard.
-

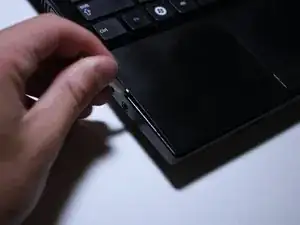

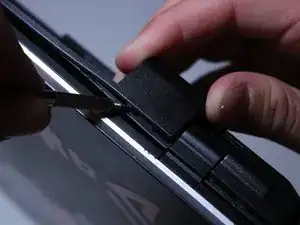

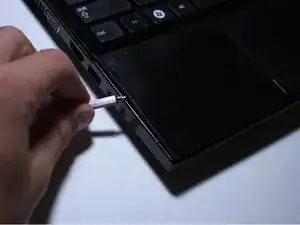

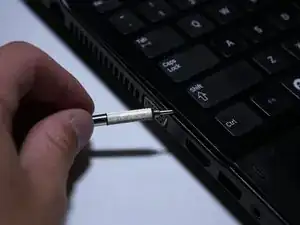

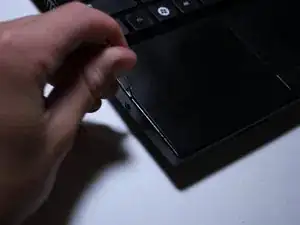

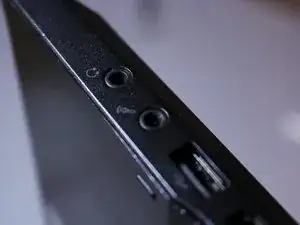

Starting near the headphone jack, use a plastic opening tool to pry apart the two pieces of plastic.
-
-
-

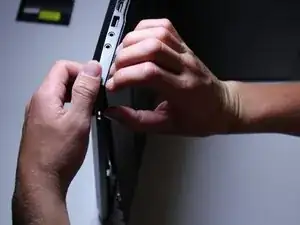

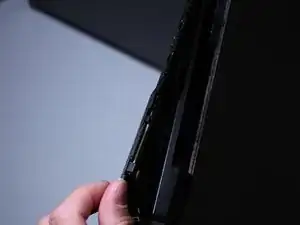

Slowly start making your way around the edge of the keyboard, prying the two pieces apart.
-
-
-

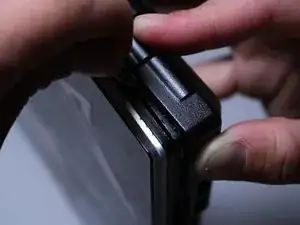

You also have to get the skinny area where the battery port is.
-
This is easiest to get to by closing the computer shut.
-
-
-
Open the computer back up and work your way around to the other side of the computer where the Optical Disk Drive was.
-
-
-

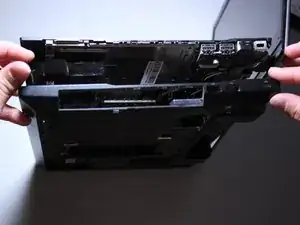

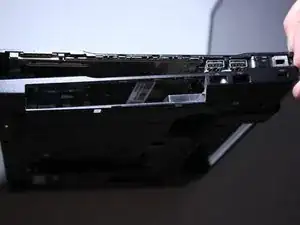

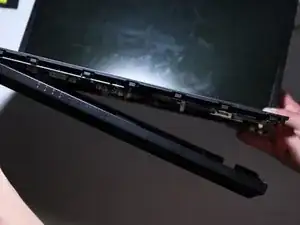

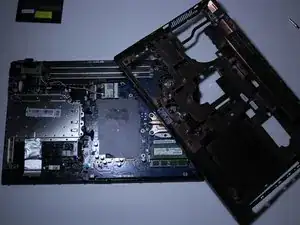

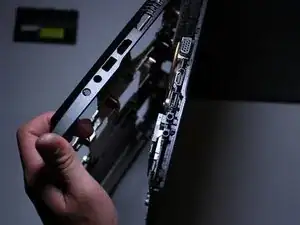

Gently pry around the edges with your fingers or a plastic separator to separate the middle layer from the base.
-
-
-

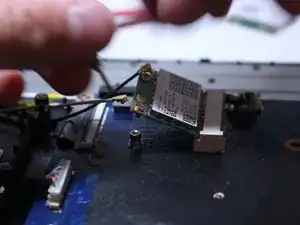

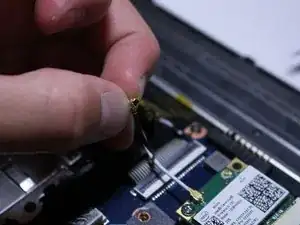

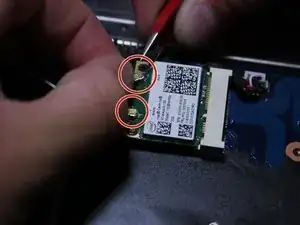

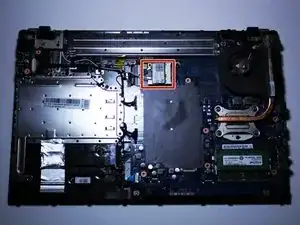

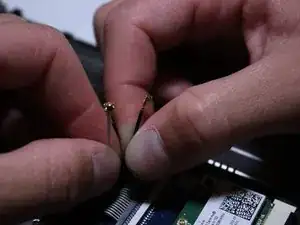

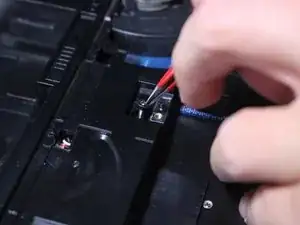

Remove the snap-on cables from the Wi-Fi card using the tips of your fingernails and the assistance of your tweezers.
-
-
-

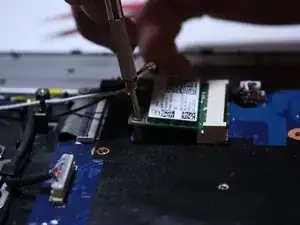

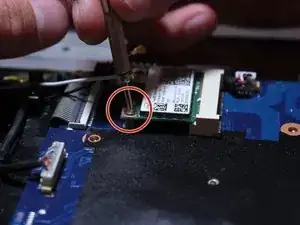

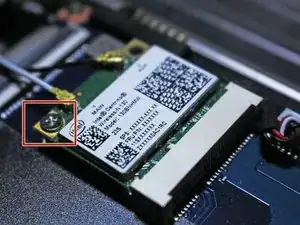

Using a Phillips #00 screwdriver, remove the single 4.5mm screw that secures the Wi-Fi card.
-
-
-

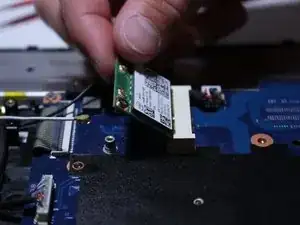

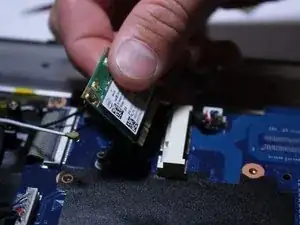

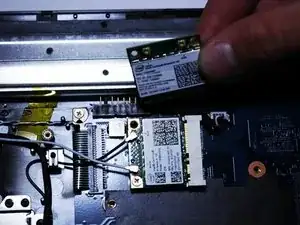

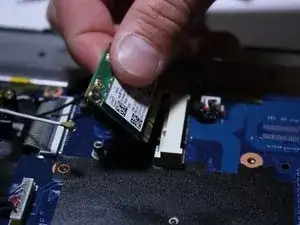

Insert your new Wi-Fi card into the mount.
-
Secure the new Wi-Fi card by replacing the 4.5mm screw using a Phillips #00 screwdriver.
-
Reconnect the two snap-on cables to the Wi-Fi card.
-
To reassemble your device, follow these instructions in reverse order. Getting the plastic shell to snap back over the back of the motherboard may take some time to get it on correctly. Start at one side of the laptop and work your way to the other.
