How to Reset the Automatic Mechanism in an Audio Technica AT-LP60BK Turntable

Geschrieben von: Devin Hoopes
  • Kommentare: 0
How to Reset the Automatic Mechanism in an Audio Technica AT-LP60BK Turntable

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to reset the automatic mechanism of your Audio Technica AT-LP60BK turntable’s needle. This fix involves no replacement parts and is an incredibly easy fix to execute. The one tool you will need is a Phillips head screwdriver. Use this screwdriver to unscrew the central screw in the middle white gear. Have a cup or bin ready to secure the screw and make sure to carefully remove the central white gear revealing the automatic mechanism. Carefully handle the parts of the turntable disk to prevent any parts from breaking.

  1. TAFXK2Lii3VYIi1s
    TAFXK2Lii3VYIi1s
    ViZhwlIBKgV5Krxp

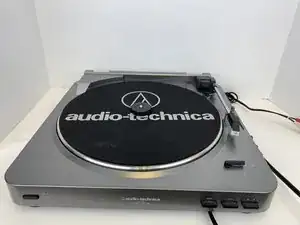

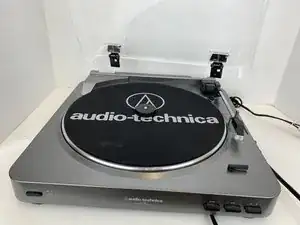

    • Carefully remove the plastic cover and set aside.

  2. oK3XCPLQrIW6ltAH
    oK3XCPLQrIW6ltAH
    JjwesUYmTLRPXqnR
    UhopCTQo6nDws1Gp

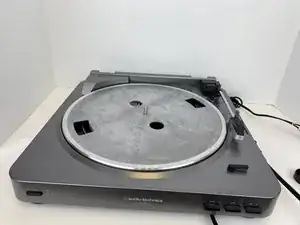

    • Remove the pad if there is one.

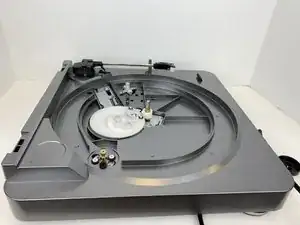

    • Spin the turntable until the belt and drive motor can be seen through a hole.

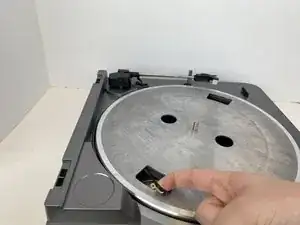

    • Gently pull the belt off of the motor, and make sure that the belt doesn’t bend or flip over.

    • Take off the turntable platter and set aside.

  3. 2aHVDEZ25KctqokS
    2aHVDEZ25KctqokS
    G2dvGTOheWE3URCQ
    h3Rj3FfeRnGFpNsC

    • Remove the single screw from the middle white gear with a Phillips #00 screwdriver.

    • Have a cup or bin so you don’t lose the screw!

    • Gently pull the gear out, revealing the automatic mechanism.

  4. ZoWybJFFlhL4GKfI
    ZoWybJFFlhL4GKfI
    fTlRHoEPlN6NPJlH
    Zq1sSlRGDunqMFqd

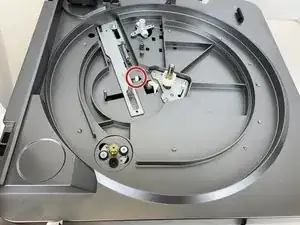

    • Push the metal part away from the center. It should click into place.

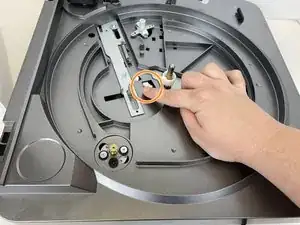

    • Push the small metal part back to the center, towards the gear axle.

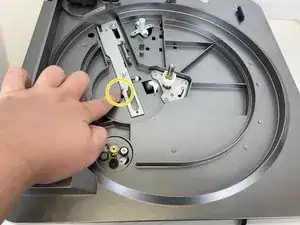

    • Push the metal part inward, close to the gear’s mounting point.

  5. IOHbAX3gmLBUEhuu

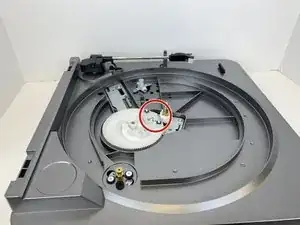

    • Replace the gear, making sure that the the metal latch on the gear is pushed back.

    • The central shaft should spin freely without hooking the gear.

    • Don't forget to put the band back on the drive motor when reassembling.

Abschluss

To reassemble your device, follow these instructions in reverse order.
