How to Resolder the LEDs on a Seville Classics MSC10166

Geschrieben von: Queena Phung
  • Kommentare: 4
How to Resolder the LEDs on a Seville Classics MSC10166

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to get to the LEDs on your Seville Classics MSC10166 Tower Fan and how to inspect the circuit board. If there is a faulty connection or a loose wire, this guide demonstrates a quick solution.

  1. 6b6oh5hUCcQUSf6Z

    • Use the Phillips #2 screwdriver to remove the four 6 mm screws by unscrewing counterclockwise.

    Hi I had the same problem where the fan would turn on it just wouldn't rotate. So I read all these solutions and right before I started to take the fan apart,my husband toke it and sprayed some WD-40,along the base above the plug where it rotates. Spray all around. Wait about 3mins,plug it in, and BAM it works great…. Thank God for husband's,

    tiffany Gallardo -

  2. Y6vJmjOmxG61bPM5

    • Pull the front and back cover apart.

    • Be careful not to pull the front cover off completely. It holds the wires.

  3. XHWvyaWwUpep1wpM

    • Remove the Phillips 6 mm screw that holds the circuit board to the outer shell of the fan.

    • Shock warning: Make sure the fan is unplugged before removing the circuit board.

  4. sLTRIkGcZTmBxkVi

    • Remove the top cover containing the circuit board and the wires by pulling it away from the outer shell of the fan.

  5. UdtUj1sbSgcTgTEE
    UdtUj1sbSgcTgTEE
    eIAOH6xoNckJNyLh

    • Remove the screws from the four corners of the circuit board.

    • Remove the circuit board from the top cover.

    • Do not touch the other side of the circuit board to avoid damaging the circuit elements.

  6. SiLKPWUBcTMpOWXZ

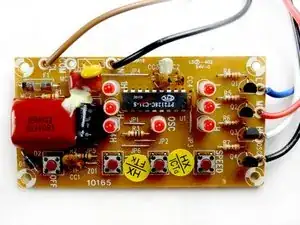

    • Shown is the top side of the printed circuit board that contains the LEDs.

    • Inspect the PCB for any faulty connections or loose components.

  7. JWT6bWpwvxH1hJoo
    JWT6bWpwvxH1hJoo
    WSmlbWCuJL1heHCl
    gnxVMqehZrMCuG6o

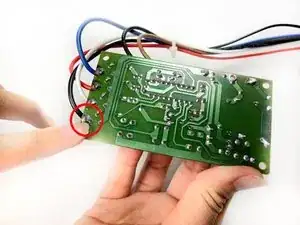

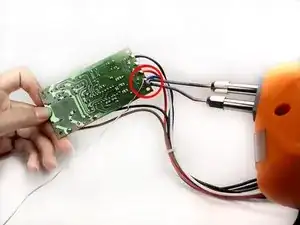

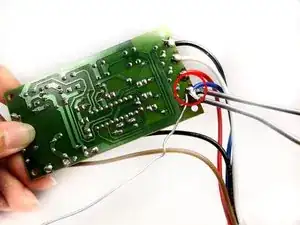

    • Make sure the wires on the side of the board are properly connected.

    • If the wires have are not connected properly, re-solder them to the board using the soldering iron.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Queena Phung

Mitglied seit: 26/09/12

114 Reputation

3 Kommentare

Good stuff except for the fact that the most common problem(fan not working) that is for me, the first and simplest repair listed is referred to a dead end in led repair section. I could be wrong, but still, where is the fuse and how does the ohm meter work for a fuse test again? Hey, your fixer guide is the one that brought it up in the first place. Just saying.....

Finner 69 -

Agreed with Finner 69, that where is the fuse and how does the ohm meter work for a fuse test again? I have Seville Ultraslimline tower fan and fan not working. Power there.

Ava -

Did you fix your fan? The fuse is on the printed circuit board with the LEDs. Set your multimeter to ohms. Touch the red lead to one side of the fuse and the black to the other. If the fuse is good, the reading should go to zero or near zero. If it's blown, it will stay at one. Mine was good, so I have to continue looking for the problem.

edtrembickiguy -
