How to Test the Valve System on a Fisher Paykel Neopuff

Geschrieben von: Constantine Yap
  • Kommentare: 0
How to Test the Valve System on a Fisher Paykel Neopuff

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

Please refer to page 7 of the device’s Technical Manual for source information.

    • Set the gas supply to 5 L/min.

  2. fILdgF1GNROQmoiD

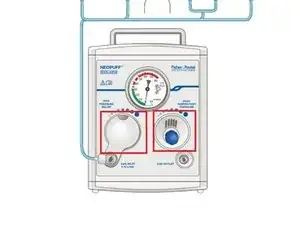

    • Completely close the Peak Inspiratory Pressure control and the Max Pressure control by turning both knobs completely clockwise.

  3. dWKPi41hes4tmBF3

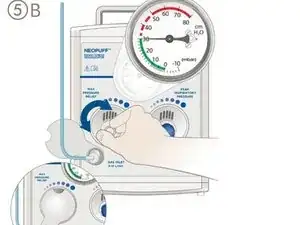

    • Close the bleed valve and check that the gauge reads at least 60 cmh2O.

    • Set the gas supply to 15 L/min.

  5. VHxncCTCrmykZ3Hu

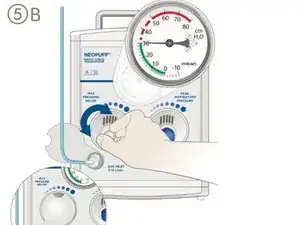

    • Close the bleed valve and check that the gauge reads no higher than 80 cmH2O.

    • Set the gas supply to 10 L/min.

    • Close the bleed valve and turn the Max Pressure Relief valve until the manometer reads 40 cmh2O.

    • Check that the manometer needle rises and falls smoothly.

    • Gently rotate the Max Pressure Relief cover over the Max Pressure Relief knob.

  10. nFAgTFYQ4ORPWfAr

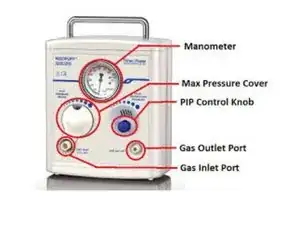

    • Reset the peak inspiratory pressure to 20 cmh2O and turn off the gas flow. Testing is now complete. If the F&P Neopuff/Perivent Infant Resuscitator fails any of these tests, the valve assembly should be regarded as faulty and replaced with a new valve assembly (see the parts list (section 4.1.2) for part numbers).

Abschluss

To reassemble your device, follow these instructions in reverse order.
