This is guide on opening up your Panasonic DVD/VCR and cleaning the DVD optical head.
Werkzeuge
-
-
With the front display of the device facing you, rotate the device 90 degrees counter clockwise.
-

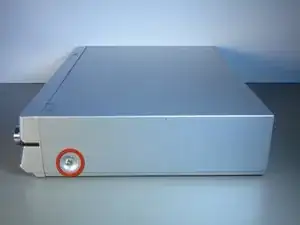

Remove the screw that is on the right side of the panel facing you.
-

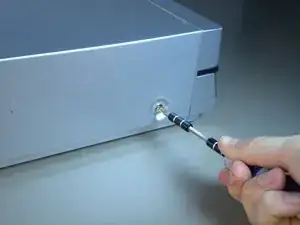

Now rotate the device 180 degrees and remove the second screw.
-
Remove all screws with a phillips head screwdriver.
-
-
-
Rotate the device so that the back faces you.
-

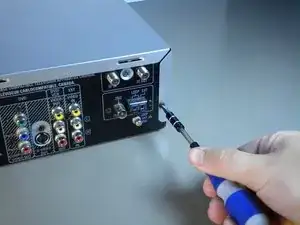

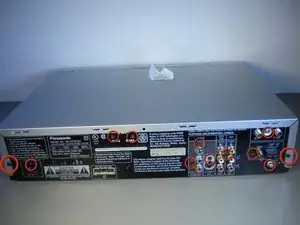

With a phillips head screw driver, locate and remove the 12 screws highlighted by the red circles in image one.
-
-
-
Before removing cover make sure that the back of the device is facing you.
-

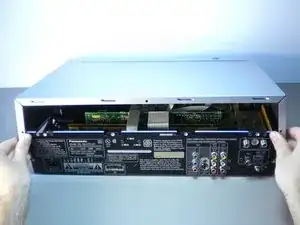

Remove the top cover by bending out on the sides, and pulling the cover towards you while applying upward pressure.
-
-
-

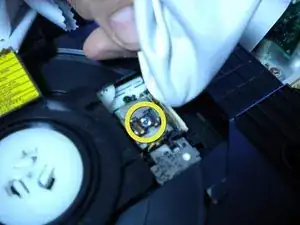

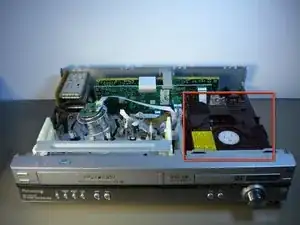

Before cleaning DVD lens, make sure that the front of the device is facing towards you.
-

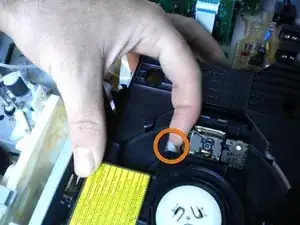

To access the DVD lens, spin the gear circled in image two counter-clockwise until the lens is exposed.
-
To reassemble your device, follow these instructions in reverse order.
