How to clean the CPU fan on Asus VivoBook Q200E-BHI3T45

Geschrieben von: Bryann Tan
  • Kommentare: 1
How to clean the CPU fan on Asus VivoBook Q200E-BHI3T45

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

25 Minuten

Einleitung

This guide will show you how to clean the CPU fan on the VivoBook.

  1. XUSDCZl26PvV5S6R
    XUSDCZl26PvV5S6R
    idqyDyxsBKFlMFNu

    • Use a Phillips 0 screwdriver to remove nine Phillips screws from the back of the laptop (four 7mm from the top hinge, four 5mm from the bottom hinge, and one 10mm screw from the center).

  2. DjWKTq3a55PjSInU

    • Use a plastic opening tool to pry the back panel off.

    I don't have this tool is there a different method to remove back panel?

    Liliane Poirot -

  3. HfH3XFq6nHkAmZdJ
    HfH3XFq6nHkAmZdJ
    ZdYQeDlMeGxbrdsX

    • Use a Phillips 0 screwdriver to remove the eight 5mm Phillips screws holding the battery in place.

  4. t2xcmcK5gXBGRZnd
    t2xcmcK5gXBGRZnd
    NGhRtcmKexVFFogT

    • Remove the ribbon cable with a pair of tweezers.

  5. d2VIdaN6Or1OJp2L

    • Lift and remove the battery.

  6. 6CyHF2jARpAaoYbH

    • Gently peel off the tape from the fan.

  7. V1kgclXnFR6CjwXt
    V1kgclXnFR6CjwXt
    4OauqdnWBsMSg1RG

    • Remove five 5mm screws using a Phillips 0 screwdriver.

    • Remove the two 2mm screws with a Phillips 000 screwdriver.

  8. cBRDyLN6yBjsUlqD

    • Disconnect the fan's power cable by pulling upward on the pin connector with a pair of tweezers.

  9. TkEoWAsCEGyNlFkX
    TkEoWAsCEGyNlFkX
    BNqAVgDoSDyXuueV

    • Grab the sides of the fan assembly and remove it by lifting upwards.

  10. lHFG6GdIKXwsVS4G

    • Remove the tape connected to the fan covering plate.

  11. KoAwfcCZdvL4n3gh

    • Gently pull the covering plate from the covering tab.

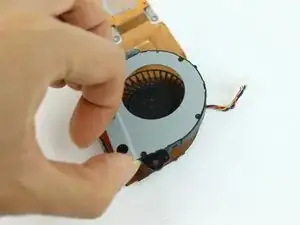

  12. KTxHBhfgrYd4hHIW

    • Remove the covering plate.

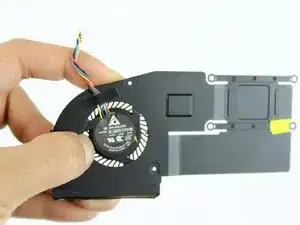

  13. FPwgTCqGA5fklcIE
    FPwgTCqGA5fklcIE
    tjDTH6shWqGxEbqN

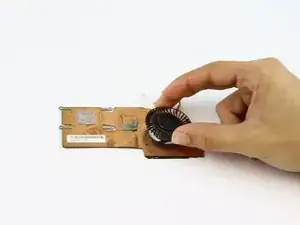

    • From the back, push the fan out of the motor.

    • Clean the fan using a damp cloth, and allow to dry.

Abschluss

To reassemble your device, follow these instructions in reverse order.
