How to clean your Roomba 4100's air filter.

Geschrieben von: Scott Leonard
  • Kommentare: 1
How to clean your Roomba 4100's air filter.

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

This guide will walk you through the steps to cleaning the Roomba air filter. A clean filter will improve performance and should be checked regularly.

  1. 3xBlCYm5XNPSVbbO

    • Slide out back bin by pressing the unmarked button on top of the Roomba.

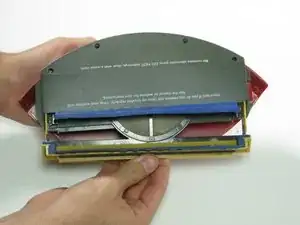

  2. CHGialEiKVmeK6le

    • Slide out yellow bar on particle bin to access filter

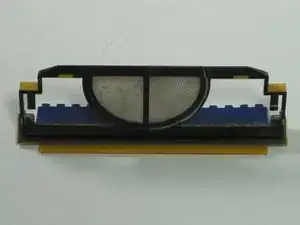

  3. GLiyHLIIxHYVTA1T

    • This is the air filter assembly

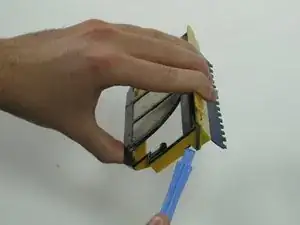

  4. jc6Pv6UxItQXbaN4

    • Pop out filter mount by prying 2 points that hold it to the rest of the assembly

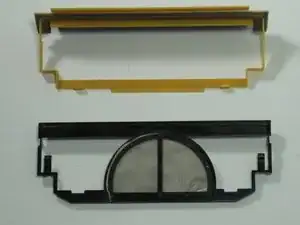

  5. LIJpJLnshtPt15km

    • Thoroughly clean or replace the air filter. This can be done with compressed air or by rinsing it with water.

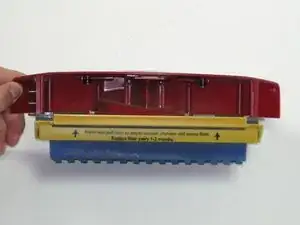

  6. TXSpdyswiewutbAS

    • Reassemble the air filter assembly and slide the particle bin back into place

Abschluss

To reassemble your device, follow these instructions in reverse order.
