How to clean/replace buttons on the Skytex SP728

Geschrieben von: Chris Nelson
  • Kommentare: 0
How to clean/replace buttons on the Skytex SP728

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show how to remove the back cover of the Skytex SP728 and identify the buttons on the side of the device. These buttons are used to raise or lower the volume and to power the device on or off.

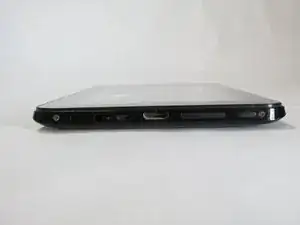

  1. lQLyV26ONQSvfSoD

    • Make sure the device is powered off

    • Rotate the device so the ports and screws face you

  2. liiHDKiyuTipOc2k

    • Using a small phillips screwdriver, unscrew both end screws

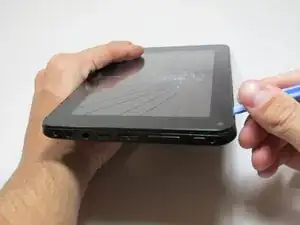

  3. xJspClACaKvU1YvO

    • Using a plastic opening tool, work your way around the edge of the device, separating the case from the rest of the device

  4. YXGXMqGDsXWdkSaL

    • Once the case has been loosened, pry the backing off gently with your hands.

    • Make sure to remove the case gently as extra force can break the clasps or the case itself.

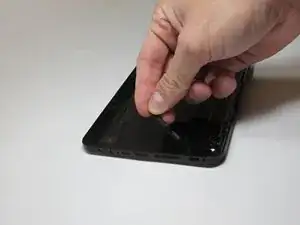

  5. RPnRStplac6nyjuq

    • Remove the black buttons (they should not be directly attached to the device and may fall out).

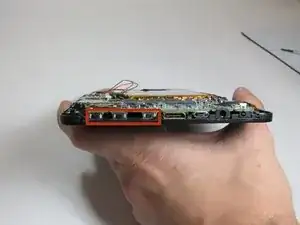

  6. CJcYyKsCpYoyIVDl

    • On side the circuit board there will be three buttons. One is the power button, and the other two are volume buttons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
