How to deoxidize Onkyo TX-800 circuits

Geschrieben von: Kevin Barton
  • Kommentare: 1
How to deoxidize Onkyo TX-800 circuits

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Metals used in circuits can react with oxygen. It's a common and natural reaction and can cause connection problems, but the process is reversible with deoxidizing sprays which can improve the sound quality of your amplifier.

  1. ix6KwcUJI5MwbjfJ
    ix6KwcUJI5MwbjfJ
    xnd5otveFW1OyKKF
    YWhJEXW3qGgwkjVY

    • Remove the two screws on both sides of the receiver. Keep these and the rest of the screws in a safe place.

  2. ejY1sGgG1WIqWN2O
    ejY1sGgG1WIqWN2O
    2IGKvJuX3cEHRhe6

    • Remove the top screw on the back panel.

  3. QHhfuxrID3Id52LM
    QHhfuxrID3Id52LM
    oRF6swHN6NrHJnv2

    • Slide off the case to expose the internal components of the receiver.

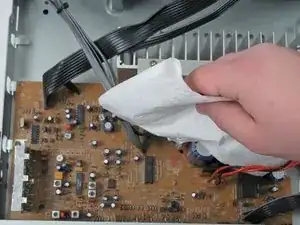

  4. BBCZCweDOAPs2N3v

    • Carefully wipe the circuit board and its components to remove any dust.

    • Failing to remove any dust before applying DeoxIT may cause the dust to get trapped on the components, increasing the risk of overheating.

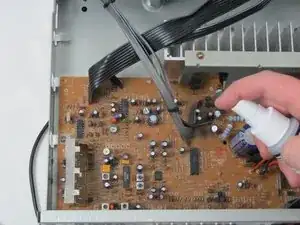

  5. gLAUrZ5u1idUHTQg

    • Lightly spray the circuit board with DeoxIT.

    • Take care to evenly coat the circuit board with DeoxIT. Excess liquid will dry slowly. If power is reapplied before it has completely dried, it can cause short-circuits and damage to the device.

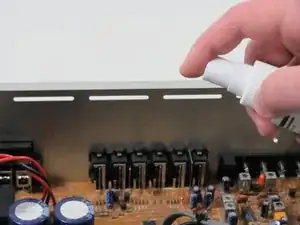

  6. BbnpmZnRYAqpCqtn
    BbnpmZnRYAqpCqtn
    aUZatrcrUfpVwoAh

    • Lightly spray the input and output connectors with DeoxIT on the inside of the back panel.

Tinte & Feder

Kevin Barton

Mitglied seit: 13/04/10

116 Reputation

Ein Kommentar

As an electronic repair technician I would never advise spraying deoxit on a circuit board or removing dust with a papertowel. May I suggest using a can of compressed air to remove any dust inside the unit and focusing the use of contact cleaner on potentiometers, input/output jacks, sockets/plugs etc. Cleaning the top of the circuit board will do little to nothing to improve the performance or sound of your amplifier as you will simply be cleaning the top side of components that are physically soldered to pads on the other side of the PCB.

Muham -
