Einleitung
If your Wacom is doing something like this: https://www.youtube.com/watch?v=XP6V8eya...
You will be disassembling your Wacom tablet and disconnecting a tiny ribbon cable.
Werkzeuge
-
-

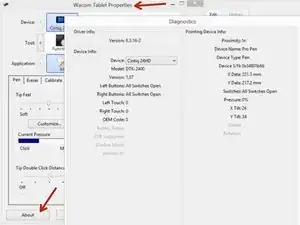

Confirm your buttons are not working by opening the diagnostics (Wacom Tablet Properties application -> About -> Diagnose.
-
In my case, I didn't do this. In frustration, I just started on the teardown. So it is possible this issue is caused by software and not hardware, but rest assured, this fix will work for either situation.
-
-
-

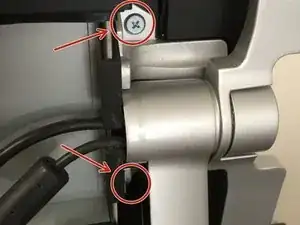

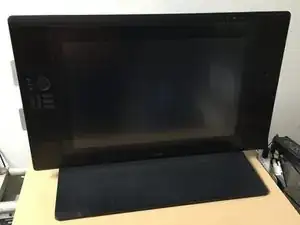

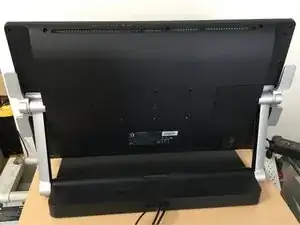

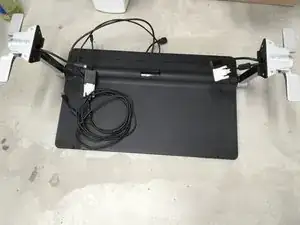

If you have the ERGO stand, we need to start removing that first. Turn the Wacom around so you can start on the back.
-

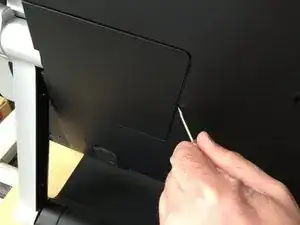

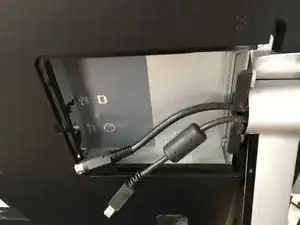

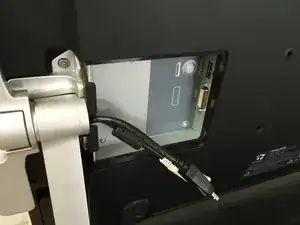

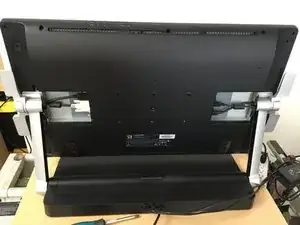

Pry off the rear covers.
-
-
-
Place Wacom tablet face down on towel
-

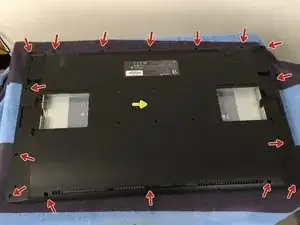

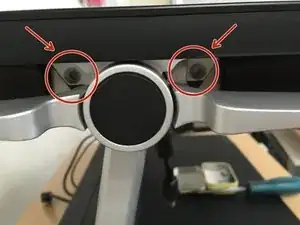

Remove rear screws
-
All screws are the same, except the center one.
-

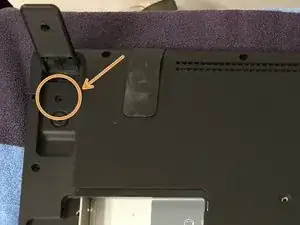

Don't forget to lift up these things and get the hidden screws (2)
-
-
-

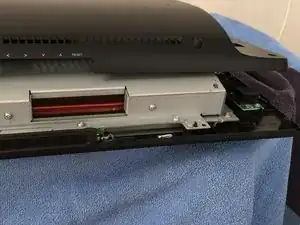

Now carefully pop off the rear plastic cover. Start at the top near the buttons and work toward the bottom.
-
-
-

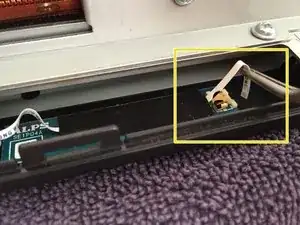

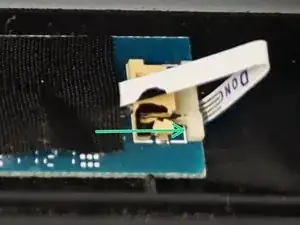

Carefully push the flex cable connector away from the connector
-
Carefully remove the cable from the connector with tweezers
-
-
-

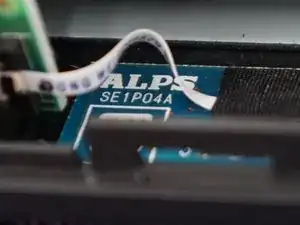

Assuming you can find a replacement switch board, replace it. It is made by ALPS, but a quick search on the part # did not reveal anything.
-
To reassemble your device, follow these instructions in reverse order.
