When you want to clean the inside of sawdust, or replace a part, you will need to open up the jigsaw. This guide will not only show how to open it, but also which specific steps are needed to close it again.
Werkzeuge
-
-

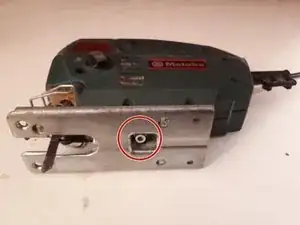

Unscrew the bolt holding the guide plate to the jigsaw.
-

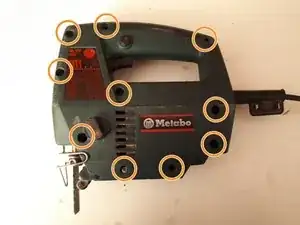

Unscrew the 10 screws holding the 2 frame halves together.
-
-
-

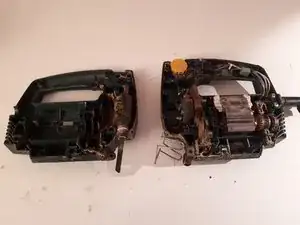

Separate the 2 halves by slowly prying them apart, going around the edges evenly.
-

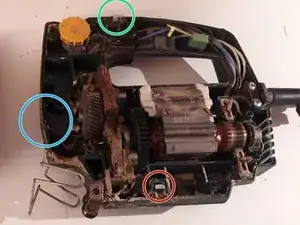

When separated, take care of some loose parts.
-
The nut holding the guide plate bolt.
-
Piece of plastic holding some cables.
-
Metal strip pushing the blade back.
-
-
-
Regardless of how the halves are separated, to put them back together, it is practical to put the saw blade mechanism in the halve with the rest of the parts.
-
Then, make sure the right parts line up and are fitted correctly:
-
The holes for the blade holder. The axis is located on the other halve.
-
The blade driver.
-
The blade guide.
-
The metal strip.
-
-
-
Now, add the empty halve on top of the halve containing the parts.
-
Screw everything back together.
-
