Einleitung
For any internal work on the N9, you'll need to open up the device. This guide will show just that part.
Werkzeuge
-
-
Click open the USB input protector lid and pull it from the housing.
-

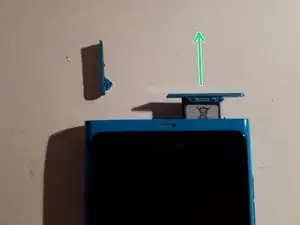

Also remove the SIM card holder.
-

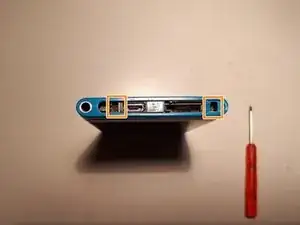

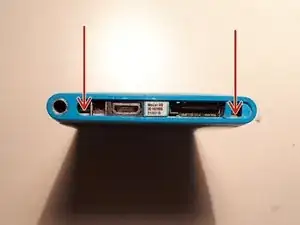

Remove screws from the top using the T3 torx screwdriver.
-
-
-

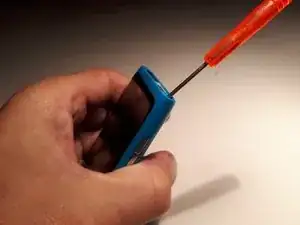

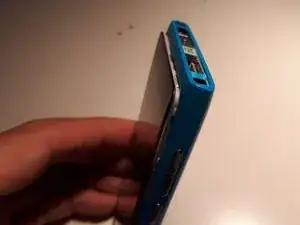

Press your screwdriver against the backside of the white pieces of plastic, and the screen will click out at the top side of the phone.
-
-
-

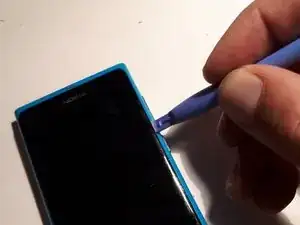

Using a plastic tool, carefully open up the distance between the screen and the housing until the screen is only attached with 2 cables.
-

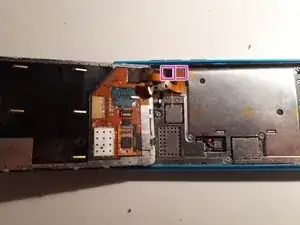

With the same plastic tool, disconnect the screen cables still attached to the phone.
-

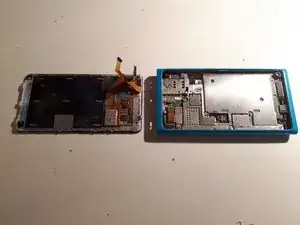

The screen is now separated from the rest of the phone.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
