Einleitung
Removing the back cover from the Afterglow Wireless PS3 Controller requires the removal of seven screws.
Werkzeuge
-
-
Lay the controller face down on a flat surface and remove the seven 9mm Phillips #0 screws on the back of the controller.
-

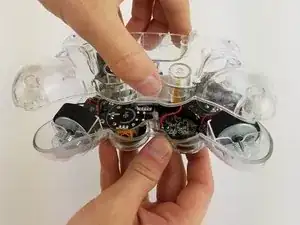

Lift up and remove the controller back plate.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
It should be noted that the screws that are just above the vibration wheels, at the thickest part of the handles, are ever so slightly longer than the clearance of the bit when it’s in the driver. This is easy to get around by just using the bit by itself.
Daniel Anderson -
