If your Arbor Rally longboard has felt sluggish recently or you're not satisfied with it's performance, this guide will help you improve your ride.

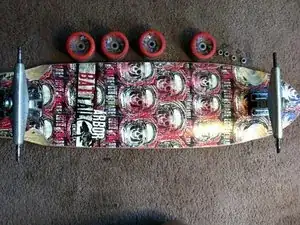

  1. ifmDQqJo4qXTTSHN
    ifmDQqJo4qXTTSHN
    cbPdJBx5K1jUXEXU
    • Use the half inch wrench to remove the nut on each wheel. Then remove each wheel.

    • Be careful not to lose the washers that sit between the nut and wheel, they are small and hard to find after you lose them.

  2. H4MPt5PTu4kqb6NY
    H4MPt5PTu4kqb6NY
    luTIxvBN1a5ksiDQ
    Ja45o1FGPX44NyJe

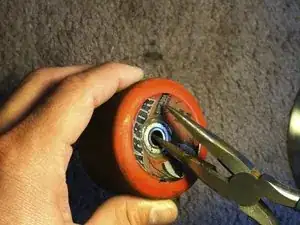

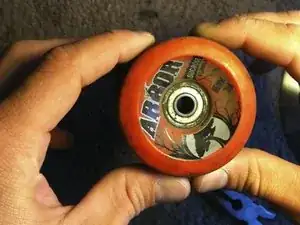

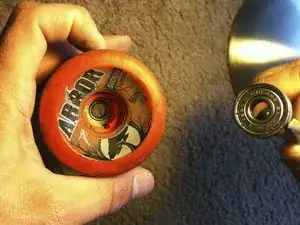

    • Use needle nose pliers to remove the bearings from both sides of each wheel.

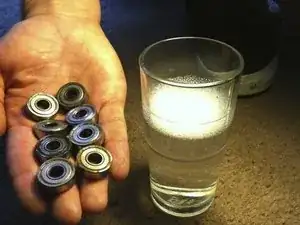

  3. tOK3Zb6Vkf2xHvPE
    tOK3Zb6Vkf2xHvPE
    WYHAOMGo6steUPUU

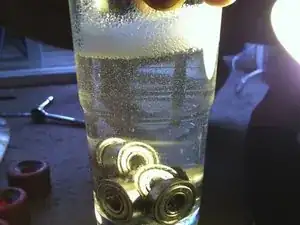

    • Place the bearings in soapy water and let them soak for 5 minutes.

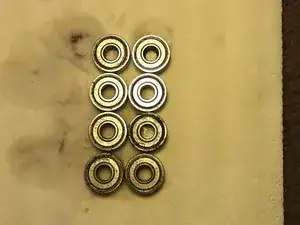

  4. crTDVMZohtSGVfbZ
    crTDVMZohtSGVfbZ
    tDyScC1QTTilHXGy
    Zad5tSP3IwWkPnhV

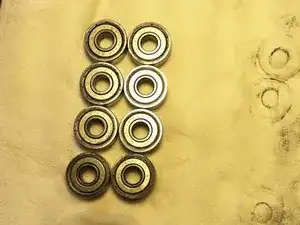

    • Wipe off the dirt from each bearing and dry them thoroughly with a paper towel.

  5. c62DxNIQDAfn41Xe
    c62DxNIQDAfn41Xe
    3Q6w6ukGElj1dv3A

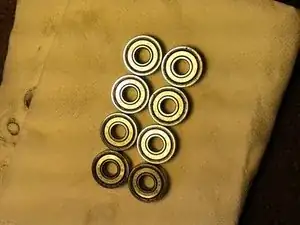

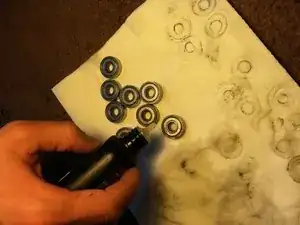

    • Apply a few drops of lubricant to the inner portion on both sides of each bearing.

    • Spin the bearings and wipe off any extra lubricant that has not settled in.

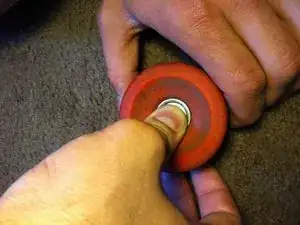

  6. 3LCqyCQ6KWTTKeXV
    3LCqyCQ6KWTTKeXV
    Ulf3YdSn1MKJOrbG
    aJMEWBAV2EMOu6Fg

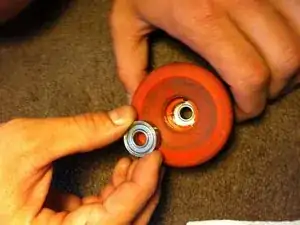

    • Push the bearing into the wheel by applying even pressure with your thumb.

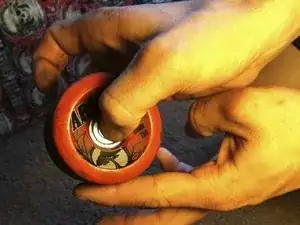

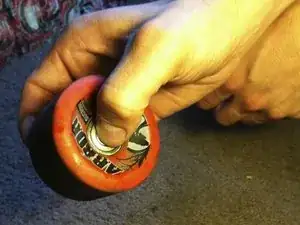

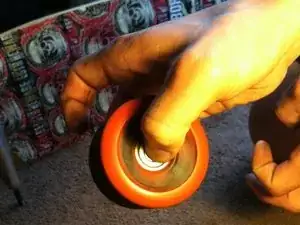

  7. qmBcU2mZuYiKcdAF
    qmBcU2mZuYiKcdAF
    b3jOseHj5rSwyLjl
    GsKBUaHcUl2eNoUh
    • Spin the wheel to make sure that the bearings are properly aligned and running smoothly.

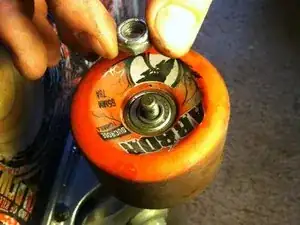

  8. TVmIoDBhQNjNsuwd
    TVmIoDBhQNjNsuwd
    VdJInMYtfOsQCdVt
    TcJTuxInlWERgKKb

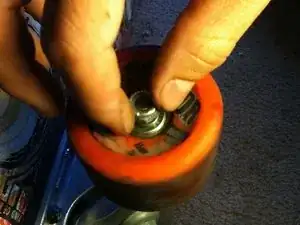

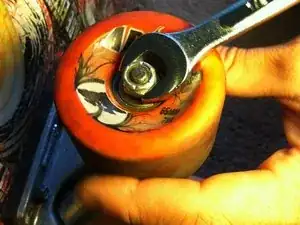

    • Place the wheel on the axle followed by washer and then the nut.

    • Tighten the nut with your fingers as much as you can first and then use the wrench to finish the job.

    • Do not tighten the nut too much or else the wheel will not be able to spin. You should be able to slightly shake the wheel up and down along the axle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
