This very brief guide will explain how I mended my Bose headphones but will refer to the other two guides here for images as I have none.

  1. U5UIabLKLUDoCGgP
    U5UIabLKLUDoCGgP
    GdG4xJKwuRjYgpfb
    3PxoNgOvA5EZpvtY
    • Here is the Bose Tricore OE headset. Slightly worn, it does not produce any sound to the right side driver

    • Remove the ear pads by simply applying a bit of force between the ear pads and the housing. The ear pad will simply snap off

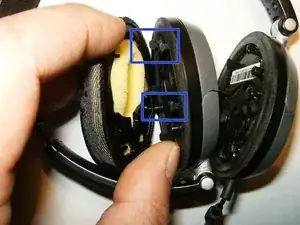

    • This shows the snaps that attach the ear pad to the case.

  2. TQOOWcUxVMa6XUGV
    TQOOWcUxVMa6XUGV
    WXwPQPOns3MtMXIi
    eJSAuC6FnQLjdGgR

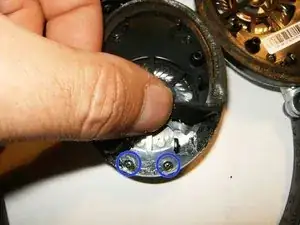

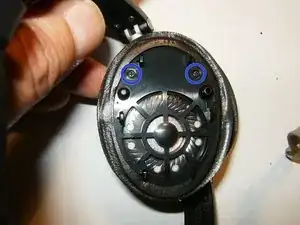

    • With the ear pad removed, the Phillips screws that hold the drive to the case, are now visible.

    • Remove the two screws on top

    • There are two more under the padding on the bottom. Remove those as well.

  3. ZNfNfmy21pelyWen
    ZNfNfmy21pelyWen
    1EjhR56P6lmj6g1c
    BhOrcebxrh3S1VBq

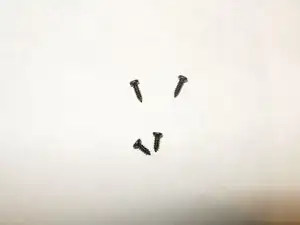

    • The first two screws are longer than the two from under the padding, so keep them separate.

    • With the screws removed, the driver (speaker) can now simply removed by just folding it over.

    • There is a small PCB to which the driver (speaker) mounts. Check the solder connections of the driver (speaker) to the board, as well as the components on this board. It consist of a few caps, resistors, and a coil.

    All four screws are the same length, 6mm. No need to separate them.

    Obviously not. The upper screws are a bit longer. The picture actually shows this.

    Besides that, thanks for the guide!

    Frank Olieu -

  4. 6Jmou3TskSVOAfvi
    6Jmou3TskSVOAfvi
    SLlqtDakyC1CbN6W
    3mRTq4pnQloxTQJ4

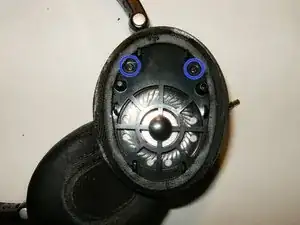

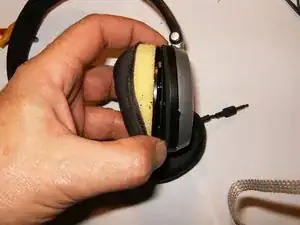

    • Since both driver (speaker) wiring will be checked, remove the left ear pad as well.

    • Same screw configuration. Two screws on top,

    • two screws under the bottom pad,

  5. lQoFaJBUYZL6FGQt
    lQoFaJBUYZL6FGQt
    LCsCaiqwkjNJXdsK
    w6VWXd4FZGA6yGBQ

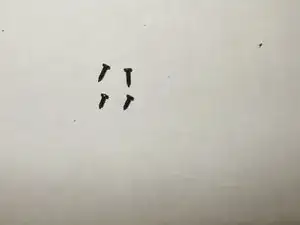

    • The Phillips screws are identical and do not need to be separated

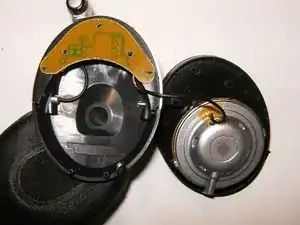

    • Remove the driver from the case by simply flipping it to the side.

    • Same PCB on both sides. Check the solder connections from the driver (speaker) to the PCB.

  6. HNNgR2U3XGTgCc2D
    HNNgR2U3XGTgCc2D
    Amv2fLXvannNUmkJ
    AT5RJcVcFgJTHskG

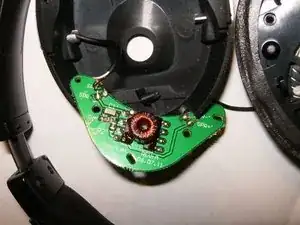

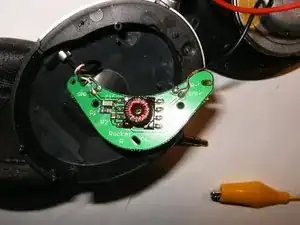

    • Here is the PCB of the right side driver (speaker)

    • Simple setup to test the driver (speaker) Two leads with alligator clips, connect those to an 3.5mm audio jack extension.

    • Use those leads and touch the connector of the driver (speaker) on the PCB. There will be sound if the driver (speaker) is working.

  7. uthHXSCqlKlHpIdb
    uthHXSCqlKlHpIdb
    y1KR4LWxM1M3MkfQ
    xqOPWpQG14jcG1Eo

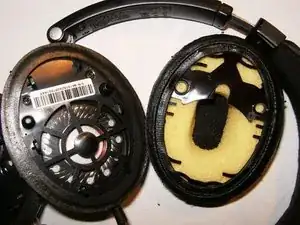

    • Time to disassemble the left side. Remove the ear pad

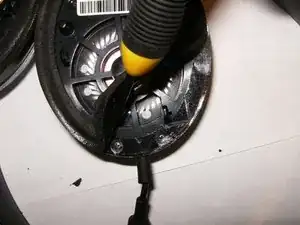

    • Remove the two screws on top

    • then the two on the bottom.

  8. 4mjuLdPhvyodmMOZ
    4mjuLdPhvyodmMOZ
    MSQ2BjhVxecJ2H6V
    XkysAicjFDPHjeVi
    • Remove the driver (speaker) from the case

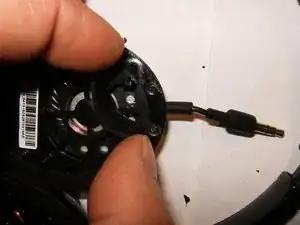

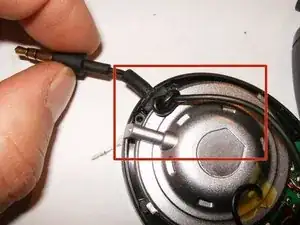

    • Make note off how the audio jack cable is fastened.

    • Remove the audio jack cable from the case. It is simply a rubber plug that is pressed into the case.

  9. yFhwvWNDnHPUwZoc
    yFhwvWNDnHPUwZoc
    DkwsBTttNUcQGPHW
    NyOFeVLryIF2jcxs
    • Check the driver (speaker) the same way as on the left side.

    • On this headset, both drivers worked while being tested, but not when the audio was connected to the audio jack. The jack needed to be replaced.

    • Desolder the audio jack cable by using a soldering wick. Apply flux to the wick prior to unsoldering.

    • Remove the old audio jack cable.

  10. F1goKZb6H3fXjGkf
    F1goKZb6H3fXjGkf
    1kNaJrtKC4iACxXj
    cWLP5DiPdoAQNaOx

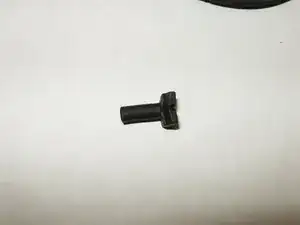

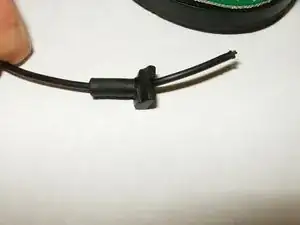

    • Here is the rubber boot that holds the audio jack cable in place.

    • Insert the replacement cable as shown through the boot. Solder the new cable to the PCB.

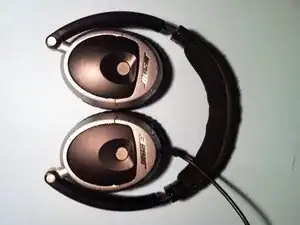

    • Reassemble the headphones after double checking the solder job. This one also received new ear pads (readily available at online auction sites) and works perfectly.

  11. MJJsBUeTgtX2MBYX
    • Refer to the other guides on how to disassemble the left side headphone which the headphone jack is inserted into. Once you have removed the headphone socket use a thin ended tool to bend the metal contacts at the end of the chamber (where the tip of the jack would sit). You can test if it’s making contact by inserting the jack whilst disassembled.
