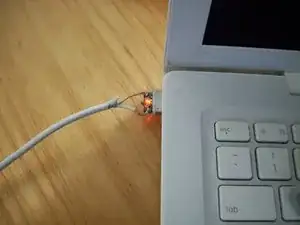

As you can see by the photos, I took a broken and otherwise useless magsafe end and made a splice. After a resolder, the LED shows the computer charging.
-
-
This is a hyper extended end of a magsafe. It is no longer working due to the wire having pulled apart.
-
-
-

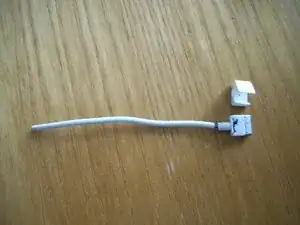

Use wire cutters to cut the wire of the magsafe some distance back from the magnetic end. I cut about 4 inches back. You can get much closer like maybe an inch, as you will see in the next step.
-
-
-

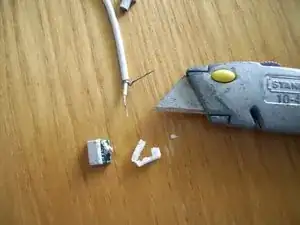

I used a utility knife to cut the nice white cover off the tiny printed circuit board. There is a molded plastic cover similar to hot glue which had to be stripped off the PCB.
-
-
-
1.) Take the good end of the existing wire and strip it.
-

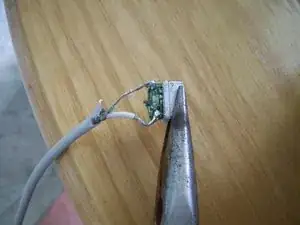

2.) The interior wire, which is coated in white should be soldered on a square metal plate about one eighth inch square. This plate is opposite a small chip for reference.
-
3.) The braided wire coats the white interior wire, and is wrapped around it in two different directions. This wire should be peeled off and then twisted together.
-
4.) Then solder it in place opposite the chip and the other wire.
-
To reassemble your device, follow these instructions in reverse order.
