How to tighten the Razor A handlebar clamp

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

1 - 2 Minuten

Einleitung

If your steering column suddenly collapses into itself, this guide is for you. This guide will show you how to tighten the T-tube column to prevent that from happening.

  1. FLQwloTmxYLxeVdP

    • Locate the T-tube clamp. It is in the middle of the steering column.

  2. hF4AjMNCdV6COXQW
    hF4AjMNCdV6COXQW
    1fipMsH4ZfmMEPbw

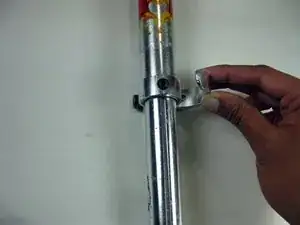

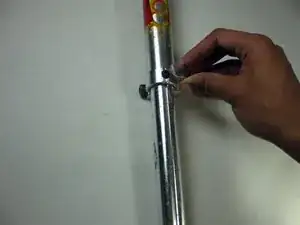

    • Open the clamp by pulling the lever away from the scooter.

  3. TMDki2mZDyKrmgrg
    TMDki2mZDyKrmgrg
    HoAyYZhKPcvb4TPY

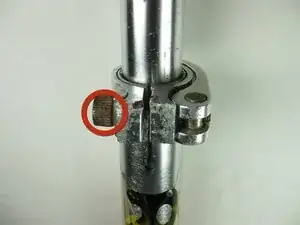

    • Locate the screw on the side of clamp.

    • Turn the screw on the side of the clamp by hand in a clockwise direction.

    • Attempt to close the clamp. If the lever is too tight to close, loosen the screw slightly and try again.

    • The T-tube should now be locked in place. If it continues to fall down, repeat the instructions in this guide.
