Hp Zbook studio g3 RAM Replacement

Geschrieben von: jort
  • Kommentare: 6
Hp Zbook studio g3 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

Replacing the 8GB of ram in my HP zBook studio g3 mobile workstation to 16 GB

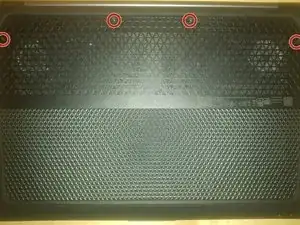

  1. WMFIwty364OEVoMp

    • Remove the 4 screws holding down the dust filter

    • Remove the dust filter

    I lost all my screws from this step and the next :( What size should I be ordering to replace them?

    No Foloj -

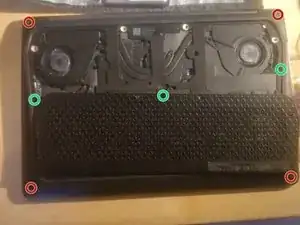

  2. 5YaGCfDJ1OrEs2Z4

    • Remove the 4 outer screws.

    • Remove the 2 inner screws holding the housing down.

    • Now lift the housing. This may require some force

    just in case you didn't notice it when dismantling the housing in this step the photo forgot to highlight one more inner screw that's dead in the middle of the laptop

    Sasquatch Jones -

    Correct, I did forget to explicitly mention it

    jort -

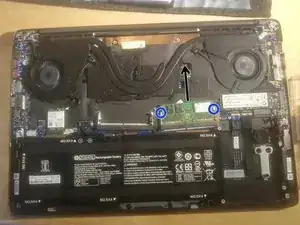

  3. MBUMQ6QMjhYAqIIN
    MBUMQ6QMjhYAqIIN

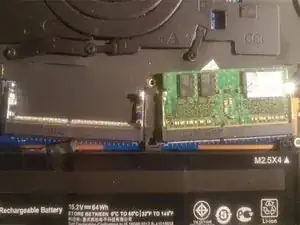

    U15LTGwiCdXMAEYW

    • Remove the old ram module by pushing these two tabs outwards. The module should swing up

    • Now pull the module out away from the holder

    • Note: The removal of the module should not require a lot of force

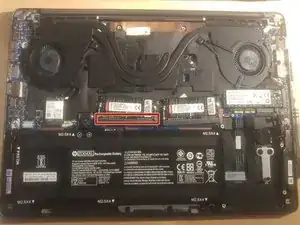

  4. gdu2EK6Ip32FGkN2

    • Orient the memory modules such that then notch in the connector lines up with the grove in the module

    • slide the module all the way into the holder such that the pins are in the connector

    • Push down on the module to lock it in the holders

    • Note: Make sure the module is in straight

Abschluss

To reassemble your device, follow these instructions in reverse order.
