Huawei Ascend G510 disassembly

Geschrieben von: Mateusz
  • Kommentare: 3
Huawei Ascend G510 disassembly

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

  1. pVdljDuqjZD3GaIf

    • My friend gave me it for 5€ (broken lcd and touch) so i took it apart

    • Yours may look different but tutorial like this should help you anyway :)

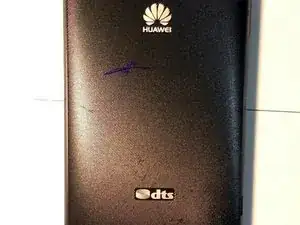

  2. X6T1ljaFHeOxRPDC

    • That's back of Huawei ascend g510

    • It's Inexpensive android phone

    • To open pry left down corner

    • You don't need any tools for this... You can pry any corner to pop the back open

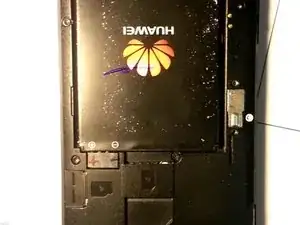

  3. GUncJ4DSnAkWBjTC

    • First remove battery

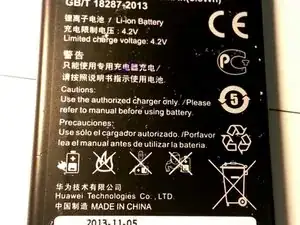

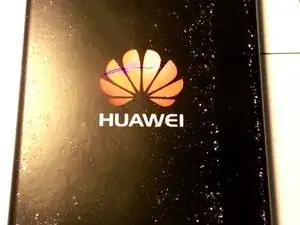

  4. ROeqDXcxsOxUbBJb
    ROeqDXcxsOxUbBJb
    WBc3e1bMGpbXcktC

    • It's HB4W1H 3.7v 1750mAh (6.5Wh) Li-ion battery

    • Don't mess with Lithium ion batteries... (And don't take apart)

    • MADE IN CHINA... As everything

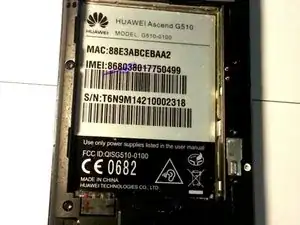

  5. 22NnKacpqEMVQTN3

    • There are

    • 7 black T5 screws

    • 1 white T5 screw

    • 1 black Philipps #0 screw

    • Just remove all and sort them so you don't mix them

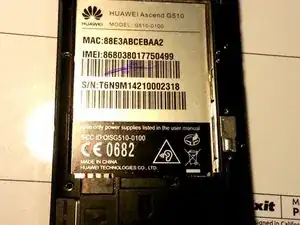

  6. pH4YvEi2FZ6RRNi2

    • There are many clips along the sides

    • Don't pry to hard or you'll break some plastic

    • These clips really suck

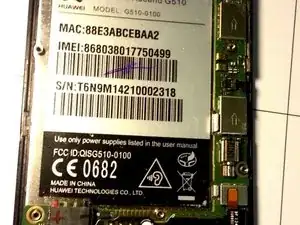

  7. HHoANfStChZs6H1p

    • First undo all connectors (lcd, touch, camera, sim/sd slot)

    • Main PCB is hold with clips and glue

    • Really frustrating to remove it... Glue or clips are everywhere

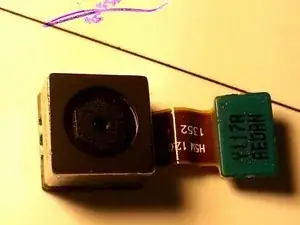

  8. HvKICoJMOofS3ZVD

    • That's the camera

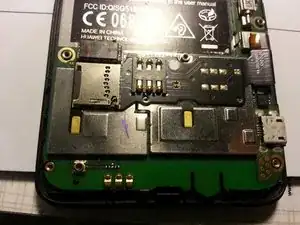

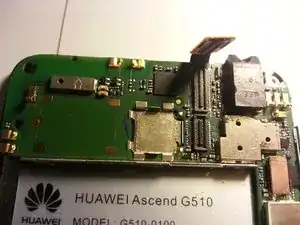

  9. 5UfsNOHf1P3JDt6F
    5UfsNOHf1P3JDt6F
    HPciNLqJbTmdFwyM

    • Let's take look at pcb.

    • Unmodular and crusty... I don't like it at all

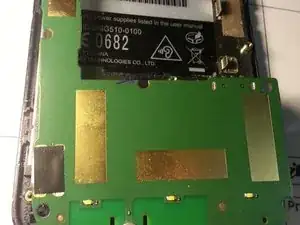

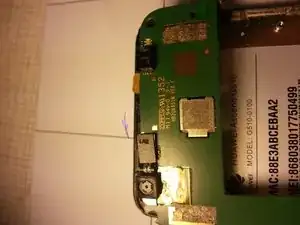

  10. PSUVMMMdamJvYiI3
    PSUVMMMdamJvYiI3
    4KHHpBfLU3ZkMxaP

    • As bad as front

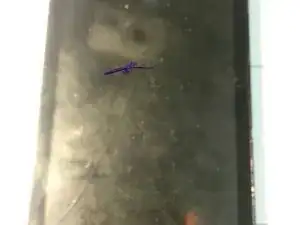

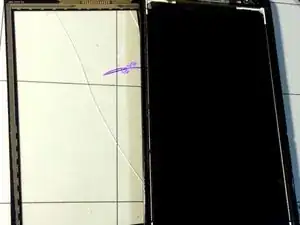

  11. JqWuAnjfFM1DjgoO
    JqWuAnjfFM1DjgoO
    UiJTCad1OSCKCmsi

    • To separate glass (with touch) just heat it up to loosen adhesive

Abschluss

To reassemble your device, follow these instructions in reverse order.
