Einleitung

For those who aren't confident for the replacement of the screen, you have to know that it was my first time i changed a screen, so don't worry.

    • Required tools:

    • Tools

    • LCD Screen and Tactile touch screen

    • Optional: Double sided adhesive tape

  2. lGmwJimGKCT3svdv

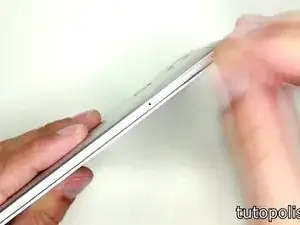

    • Don't forget to remove the SIM card and the SD card.

  3. D23SL53AOodCTHOR

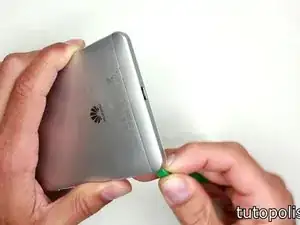

    • Remove the case tab on the bottom of the phone with a spudger or a pick.

  4. Dr5sSYM5iuAiUBES

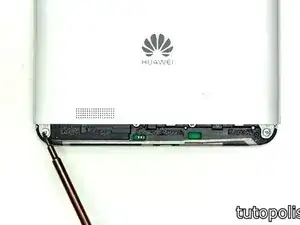

    • Unscrew the two screws on the left and right of the case.

  5. XLQUlDuPDeOMXt4w

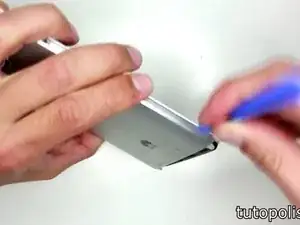

    • Using the spudger/pick, remove the rest of the rear case.

    • Once this has been un-clipped, slowly lift the case until you can see the connector between the case and the main body of the phone. Un-clip this with your tool too.

Abschluss

To reassemble the device, follow the instructions in reverse order.
