Use this guide to replace the front screen on your Huawei Ascend W1. This guide will show you how to remove the old display. Remember to be careful when removing all the parts as parts can break easily.
-
-
Flip the device over so that the back of the phone is facing you and the screen is against your palm.
-
-
-
Locate the slit at the bottom of the back cover.
-
Using your fingernail, lift up on the back cover to expose the battery.
-
-
-
Find the indented notch at the base of the battery.
-
Lift the battery out of the phone with your fingers by pressing forward and lifting upward.
-
-
-
After removing the battery, remove the screws using a T6 screwdriver.
-
There are eleven screws that hold the middle cover to the rest of the phone.
-
The screw that is marked by the orange circle is covered by a white dot.
-
-
-
After all the screws are removed, use your fingers to remove the lower section of the middle cover.
-
Pull the lower section of the middle cover outward towards you, exposing the circuit board underneath.
-
-
-
Begin working your way around the sides of the cover plate, unsnapping it gently.
-
The middle cover is a thin piece of plastic with the external speaker inside of it.
-
-
-
Use a plastic spudger or your fingers to gently pry up the four flex cables from the main board.
-
-
-
Gently pry up near the small black clip with your fingers or a plastic spudger to detach the main board.
-
-
-

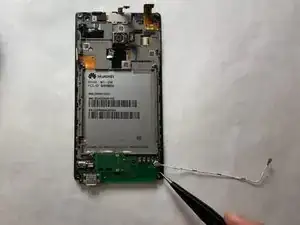

Gently pry up near the small black clip with a plastic spudger to detach the charging board.
-
-
-

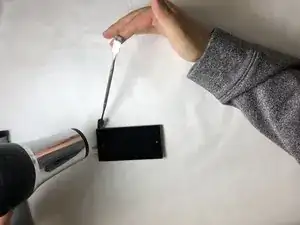

Apply heat using a heat gun or blow dryer in close proximity to the device. Then use the metal spudger to pry the display screen from the frame.
-
To reassemble your device, follow these instructions in reverse order.
