Einleitung
Use this guide to remove a broken or defective screen in your the Huawei Honor 10.
Before disassembling your phone, discharge the battery below 25%. The battery can catch fire and/or explode if accidentally punctured, but the chances of that happening are much lower if discharged.
Note: This guide instructs you to replace only the screen while leaving the original frame and motherboard in place. However, some replacement screens for this phone come pre-installed in a new frame (a.k.a. chassis), which requires a very different procedure. Make sure you have the correct part before starting this guide.
You’ll need replacement adhesive to reattach components when reassembling the device.
-
-
Before you begin, switch off your phone.
-

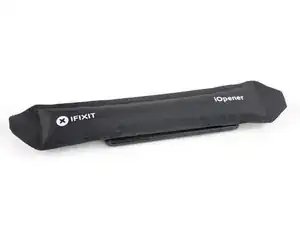

Apply a heated iOpener to a long edge of the phone to loosen the adhesive beneath the rear glass. Apply the iOpener for at least two minutes.
-
-
-
Press a suction cup onto the back cover.
-
Lift the back cover's right edge with your suction cup, opening a slight gap between the back cover and the frame.
-

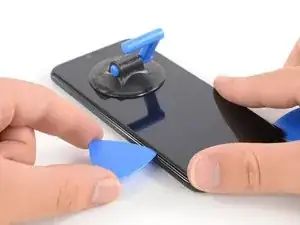

Insert the tip of an opening pick in the gap you created and slide it to the bottom right corner.
-
-
-

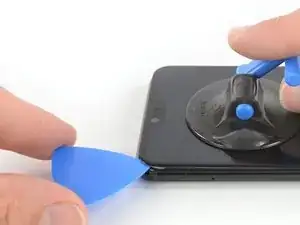

Insert a second opening pick at the bottom right corner of the rear glass.
-
Slide the opening pick along the bottom edge of the rear glass to cut the adhesive and leave it in the bottom left corner.
-
-
-
Insert a third opening pick at the bottom left corner of the rear glass.
-
Slide the opening pick along the left edge of the rear glass to cut the adhesive.
-
Leave the opening pick at the top left corner of the rear glass.
-
-
-
Insert a fourth opening pick at the top left corner of the rear glass.
-
Slide the opening along the top edge of the rear glass and cut the remaining adhesive with it.
-
-
-
Use a pair of tweezer to carefully peel the black foil off the loudspeaker and daughterboard cover.
-
Remove the foil completely.
-
-
-
Remove the three Phillips #00 screws (2.9 mm length) that secure the metal bracket on top of the battery, interconnect, and display flex cable.
-
-
-

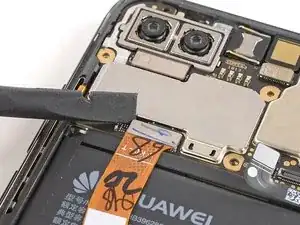

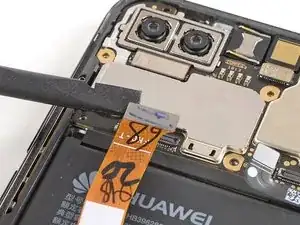

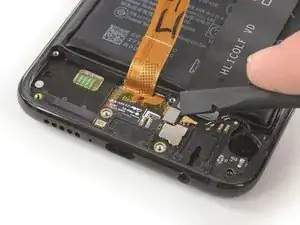

Use a pair of tweezers to remove the metal shield that covers the connectors of the interconnect cable, the battery and the display flex cable.
-
-
-
Remove the seven Phillips screws securing the loudspeaker unit:
-
Three silver 2.9 mm long screws
-
Four black 3.4 mm long screws
-
-
-

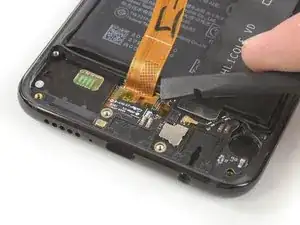

Slide the flat end of a spudger under the right side of the loudspeaker unit.
-
Pry up the loudspeaker unit until you can get a good grip.
-
Remove the loudspeaker unit.
-
-
-
Apply a heated iOpener to the screen to loosen the adhesive beneath. Apply the iOpener for at least two minutes.
-
-
-
Once the screen is warm to the touch, apply a suction cup near the top edge of the phone right under the earpiece speaker.
-

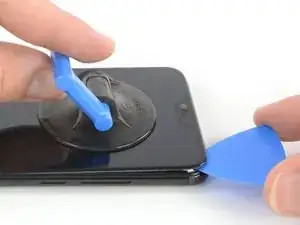

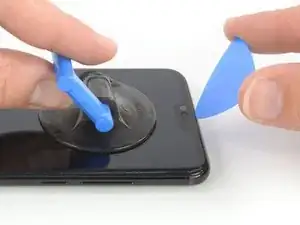

Pull up the suction cup, and insert the tip of an opening pick under the display where the earpiece speaker is located.
-
Slide the opening pick to the top right corner of the phone to cut the adhesive.
-
-
-

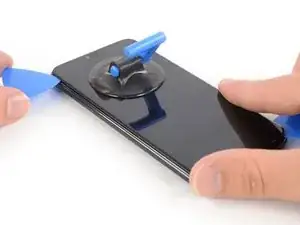

Slide the opening pick from the top right corner down the edge of the phone to cut the adhesive.
-

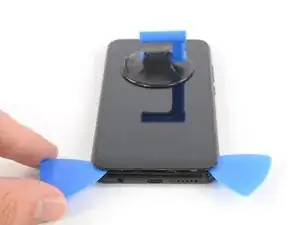

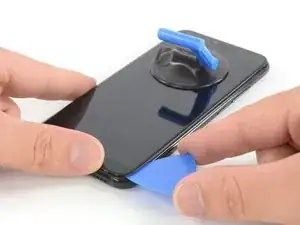

Leave the opening pick at the bottom right corner of the screen to keep the adhesive from resealing
-
-
-

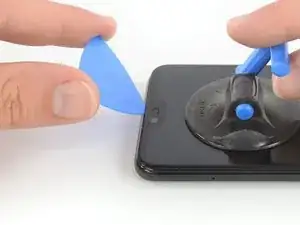

Pull up on the suction cup, and insert the tip of a second opening pick under the display where the earpiece speaker is located.
-

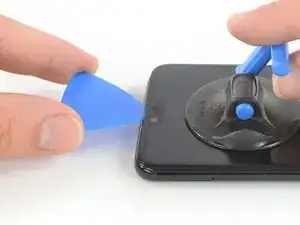

Slide the tip of the opening pick to the top left corner of the phone to cut the adhesive.
-
-
-

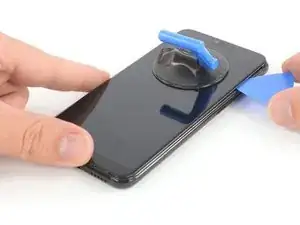

Slide the opening pick from the top left corner down the edge of the phone to cut the remaining adhesive.
-
-
-

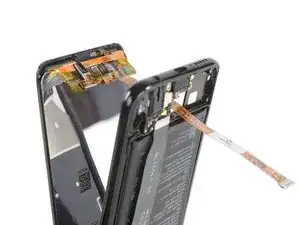

Make sure the flex cable does not stick to the frame and carefully thread it through its gap.
-

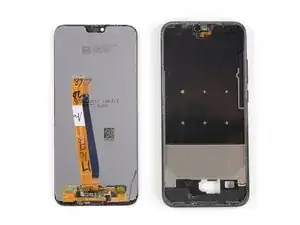

Remove the screen.
-
If possible, turn on your phone and test your repair before installing new adhesive and resealing the phone.
The best way to secure the new screen is with a sheet of custom-cut double-sided tape. Apply the tape to the back of the screen, then carefully feed the display cable through the frame. Align the screen and press it into place.
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
