Huawei Ideos S7 Slim Camera Replacement

Place the tablet on a flat clear surface to keep the screen safe.

Slide the larger portion of the back cover off the tablet.

This will reveal the battery.

Lift the battery out with your finger.

Using a plastic opening tool, pry off the top cover casing gently by moving the tool along all three sides.

With a T5 hexagonal head, remove the nine black 2.5 mm torx screws. Place them carefully aside on the magnetic mat.

Using a plastic opening tool, pry off the back casing gently on each side of the tablet.

Using a Phillips #00 screwdriver, remove the following screws:

Four 5mm wide grey Phillips screws on the logic board.

Seven 3mm small grey Phillips screws (four on one side, three on the other) from the black side casing.

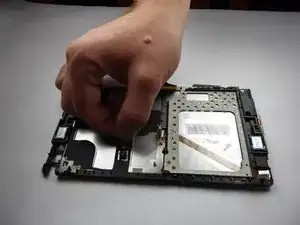

Disconnect the five cables connected to the logic board and then carefully lift the logic board out of the casing.

Detach the camera by removing the attached cable.
