Huawei Mate 10 Pro Daughterboard Replacement

Geschrieben von: Annabelle Harding

Kommentare: 2

Huawei Mate 10 Pro Daughterboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 - 45 Minuten

Einleitung

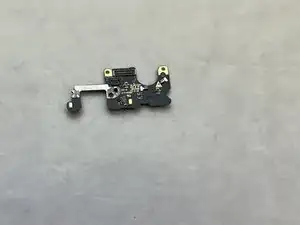

This guide will show how to access and remove the daughterboard of this device.

Werkzeuge

Schritt 1

Insert a SIM opening tool in the hole on the left side and push it in.
Remove the SIM card tray.

Schritt 2

Switch off your phone.
Prepare an iOpener and apply it to the back of the phone for about two minutes to loosen the adhesive beneath the back cover.

Erm… Simply impossible to open the phone this way…

I used the iOpener for 2 mins as instructed, I’ve used even an hair drier for 30 secs on max power (could barely touch the phone after) and still with the suction tool I was not able to open the phone.

It simply doesn’t budge!!!

Miguel Oliveira - 15/09/19

Schritt 3

Lift up the back cover with a suction cup until you can insert the flat end of a halberd spudger.
Use the halberd spudger to cut the adhesive beneath the back cover on all sides of the phone.
Use opening picks to avoid the adhesive from sticking to the back cover again while cutting the adhesive on all sides.

Faire attention à ne pas enfoncer trop le cutter/spatule hallebarde. Surtout à l’approche des boutons ON/OFF et volume, la nappe ne passe pas loin et se branche à coté de l’empreinte digitale.

Bilan, j’ai coupé cette nappe et n’ai plus de bouton volume et on/off.

Plus qu’à chercher la piece de rechange pendant que le telephone est ouvert ;)

NeoX - 29/02/20

Schritt 4

Don't remove the back cover all the way, yet. The fingerprint sensor cable is still connected to motherboard.
Flip the back cover over to the side.
Remove the Phillips #00 screw which holds down the metal shield, sitting on top of the connection of the fingerprint sensor cable.

Schritt 5

Use a pair tweezers to remove the metal shield covering the connector of the fingerprint sensor.

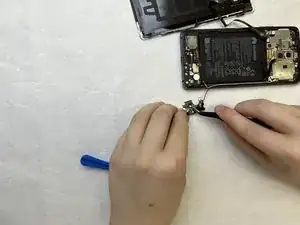

Disconnect the fingerprint sensor cable with a spudger.
When reassembling your phone apply new adhesive where it is necessary.
