Einleitung

If your Huawei MultiPad M3 (model 9599773) is not providing sufficient battery life or taking too long to charge, use this guide to replace the battery in the tablet. Before deciding to replace the battery, inspect the charging chord for damage or a short in the wiring causing the device not to charge properly. Typically, a new chord will give the device sufficient battery life.

Before beginning make sure to power off your phone completely and disconnect from any external power.

  1. ABhcCWEFGHtI531D
    • Using the Jimmy tool, gently pry the display open.

    • Wear ESD bracelet to ensure you are electrostatic safe.

  2. Xlldximsh2BILtY2

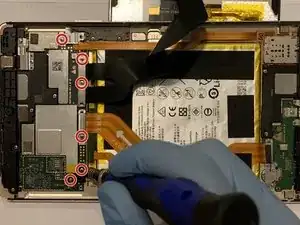

    • Using a Phillips #00 screwdriver, remove the six 3.0mm screws.

  3. ltDpJJPgC14RubMC

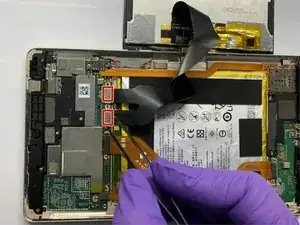

    • Using the tweezer tool, remove the ribbon cable attached to the main display in two places.

  4. xB25TPMn6jAinUTj
    xB25TPMn6jAinUTj
    fb2tqsdHOnUlEten
    LsJJTqkE1i6W6NAf

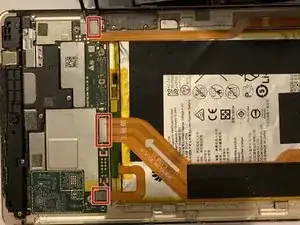

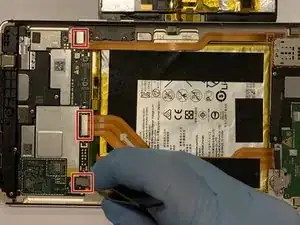

    • Using the tweezer tool, remove the three remaining ribbon cables.

  5. uvAgj6c6lJGfXkZH

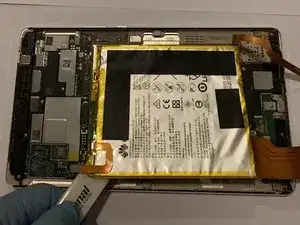

    • Using the Jimmy, break the adhesive that holds the battery to the main body and remove the battery from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
