This guide is about how to replace the motherboard of Huawei MediaPad M3. A prerequisite of this guide is removing the display. The motherboard requires the removal of multiple screws; please store screws carefully for reassembly.

  1. 1YDoxBBDcMlvjRY4
    1YDoxBBDcMlvjRY4
    ce4QGxbRLNRYGwbO
    • Use a heat gun to heat the display. It may take up to 30 seconds.

    • Slide in the opening picks to the four corners of the tablet and peel off the display carefully.

  2. BfKMRs6fJZtVwITn
    BfKMRs6fJZtVwITn
    poaqamJnPSaIuD6L
    • Open the display carefully.

    • Use a Phillips #00 screwdriver to remove the two 3.0mm screws.

  3. OfTONBigZr6VUPaZ
    OfTONBigZr6VUPaZ
    6ACEEBkb6aqKhAq1
    • After removing the two screws, use your hand to take out the silver metal bracket.

  4. wCLxtIkgIXlVsnLL
    wCLxtIkgIXlVsnLL
    YUCJgMuSUtOWo6VD
    mTMpwSMpWFg5WnWo
    • Use the plastic opening tool to disconnect the two ribbon cable connectors.

  5. aSxOBX6b5xwtxPL6
    aSxOBX6b5xwtxPL6
    5Mv2iU5hU4aG5diL
    • Remove the display assembly from the device.

  6. jTrcoMGOnUBkZG1A
    • Use a Phillips #00 screwdriver to remove the six 3.0mm screws.

  7. OhmwtJbiR62xqKMq
    • Use your hand to remove the silver metal bracket.

  8. OwQnPMtBgpacBFwG
    OwQnPMtBgpacBFwG
    xPFWe3HTTbfTRpgX
    • Use your hand to remove the two black plastic covers.

  9. UfNHChPJYcATDfof
    UfNHChPJYcATDfof
    DnQAFAHfVcnhdK6F
    NYdINPZieWmjRGPp
    • Use a plastic opening tool to remove the front camera.

  10. FNxOOnOwssEIxcJ5
    FNxOOnOwssEIxcJ5
    SdDjvVbo4k6AB3qi
    HnBbrlaZE1vcL23J
    • Disconnect and remove the camera from the motherboard.

  11. lfeasBZYuYUAHfGY
    lfeasBZYuYUAHfGY
    QH1l1EFQP4BOfGqy
    • Use a Phillips #00 screwdriver to remove this 3mm screw.

    • Remove the small silver metal bracket.

  12. NWjv4W2YpfuHwOGW
    NWjv4W2YpfuHwOGW
    TMa3LZoDEUTxvwjr

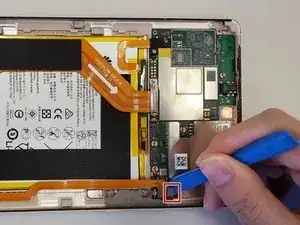

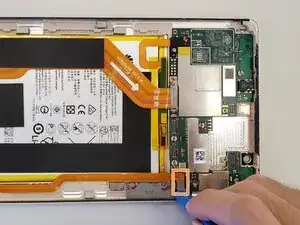

    • First, remove the right ribbon cable from the board.

    • Next, remove the left ribbon cable from the board.

  13. U2ECIOHIFQxQwCeP
    U2ECIOHIFQxQwCeP
    2uh4uxpFTskCJb5g
    VB2d4kWuUr4JB2IS

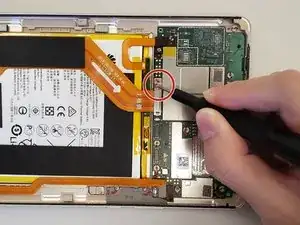

    • Use a Phillips #00 screwdriver to remove the 3mm screw present on top of the silver metal bracket.

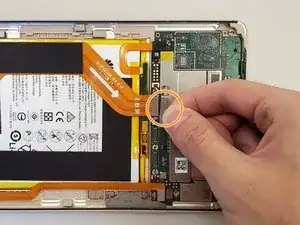

    • Remove the silver metal bracket from the board.

    • Remove the yellow ribbon cable using a plastic opening tool.

  14. ZJGPiIQxtWJQwZqv
    ZJGPiIQxtWJQwZqv
    UjSWYMxMAULn2VMO
    K5ZSxrtHt3DFtk2W

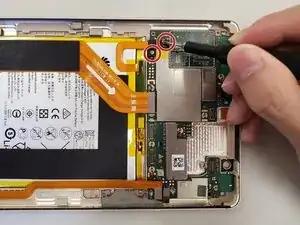

    • Use a Phillips #00 screwdriver to remove the two 3mm screws.

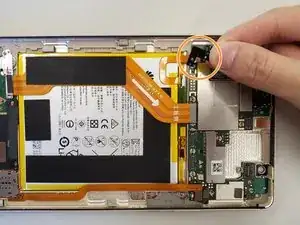

    • Remove the black plastic cover from the board.

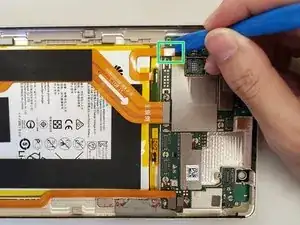

    • Remove the yellow ribbon cable using a plastic opening tool.

  15. HYs2cPcSMHQwIpJf
    HYs2cPcSMHQwIpJf
    WI5LqhpvuakFZksJ
    CatABuG1dNReYPDt

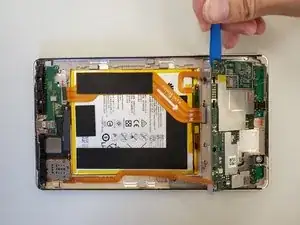

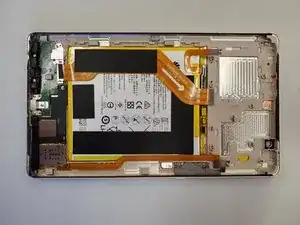

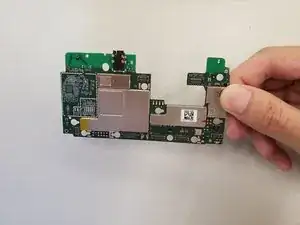

    • Carefully remove the motherboard from the device by using a plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
