Huawei MediaPad M3 Rear Camera Replacement

Geschrieben von: Kefan Lin
  • Kommentare: 0
Huawei MediaPad M3 Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide is about how to replace the back camera of Huawei MediaPad M3. A prerequisite of this guide is removing the display. Please see the “Display assembly” guide. Rear camera has 8-mega pixels with a flashlight. Screws and the camera itself are relatively small; please store them carefully for reassembly.

  1. 1YDoxBBDcMlvjRY4
    1YDoxBBDcMlvjRY4
    ce4QGxbRLNRYGwbO

    • Use a heat gun to heat the display. It may take up to 30 seconds.

    • Slide in the opening picks to the four corners of the tablet and peel off the display carefully.

  2. BfKMRs6fJZtVwITn
    BfKMRs6fJZtVwITn
    poaqamJnPSaIuD6L

    • Open the display carefully.

    • Use a Phillips #00 screwdriver to remove the two 3.0mm screws.

  3. OfTONBigZr6VUPaZ
    OfTONBigZr6VUPaZ
    6ACEEBkb6aqKhAq1

    • After removing the two screws, use your hand to take out the silver metal bracket.

  4. wCLxtIkgIXlVsnLL
    wCLxtIkgIXlVsnLL
    YUCJgMuSUtOWo6VD
    mTMpwSMpWFg5WnWo

    • Use the plastic opening tool to disconnect the two ribbon cable connectors.

  5. aSxOBX6b5xwtxPL6
    aSxOBX6b5xwtxPL6
    5Mv2iU5hU4aG5diL

    • Remove the display assembly from the device.

  6. jTrcoMGOnUBkZG1A

    • Use a Phillips #00 screwdriver to remove the six 3.0mm screws.

  7. OhmwtJbiR62xqKMq

    • Use your hand to remove the silver metal bracket.

  8. OwQnPMtBgpacBFwG
    OwQnPMtBgpacBFwG
    xPFWe3HTTbfTRpgX

    • Use your hand to remove the two black plastic covers.

  9. UfNHChPJYcATDfof
    UfNHChPJYcATDfof
    DnQAFAHfVcnhdK6F
    NYdINPZieWmjRGPp

    • Use a plastic opening tool to remove the front camera.

  10. FNxOOnOwssEIxcJ5
    FNxOOnOwssEIxcJ5
    SdDjvVbo4k6AB3qi
    HnBbrlaZE1vcL23J

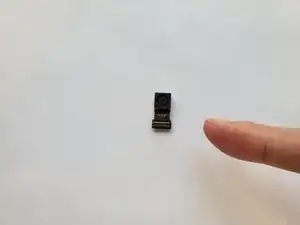

    • Disconnect and remove the camera from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
