Huawei P7 Screen Assembly Replacement

Geschrieben von: Maxim
  • Kommentare: 12
Huawei P7 Screen Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

Repairing a broken screen of the Huawei P7 is a much less daunting task than it was with its predecessor.

  1. OTUu3BBJR212qAJf

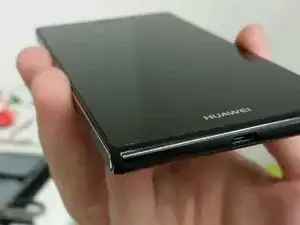

    • Cracked screen, but no idea how to start?

    • Keep calm

    • Follow my guide

  2. sD2qg2WsrHcFouC4
    sD2qg2WsrHcFouC4
    r3piITp6bimsJtA2
    MjxBOgH2XWiuCX6J

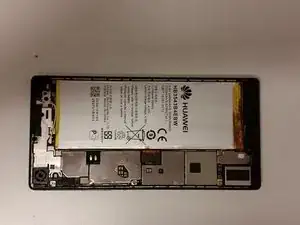

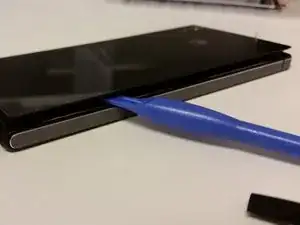

    • Heat the glass panel on the back to around 85°C so the adhesive loosens

    • Use a plastic spudger or opening tool to gently pry up the glass

    • Carefully work your way around the edges

    • Be careful at the bottom. There is a flex cable running near the back-glass

    • Never use metal tools for this. Metal will scratch the black paint off the backplate

  3. 2sv3tXx4cNY4YNPa
    2sv3tXx4cNY4YNPa
    EmSWq4CVyQAWemSc
    DEk1wnoiFHdNvmyU

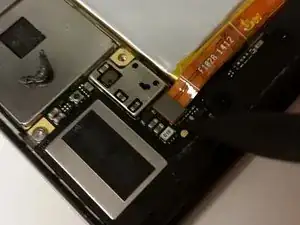

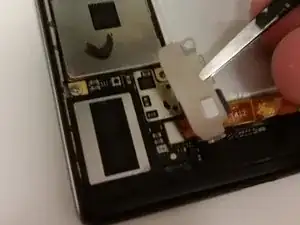

    • First, we'll disconnect the battery cable

    • Use a philips screwdriver to remove the shield, revealing the battery connection

    • Next, disconnect the LCD/Digitizer ribbon

  4. GVItX1uC2YBfx3Gk
    GVItX1uC2YBfx3Gk
    EoBaWIg1Smv4YhR2

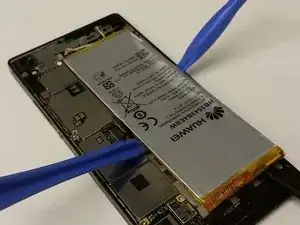

    • Remove the battery

    • Use plastic tools to pry the battery off its adhesive

    • Patience is key here

    • Don't bend, puncture or heat the battery.

  5. L3icFALCLpmuKdtB
    L3icFALCLpmuKdtB
    AkGaTDGwSkpIF6Il

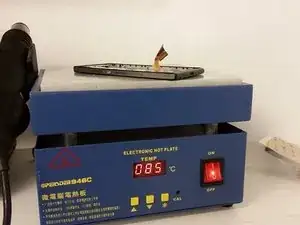

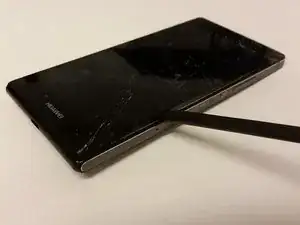

    • Heat the front side to about 85°C

    • Using a plastic tool, seperate the display from the frame, but don't pull it too far away.

  6. 2AeZwbYdsKVAokUR
    2AeZwbYdsKVAokUR
    QtQKrgyZHvAYSxec

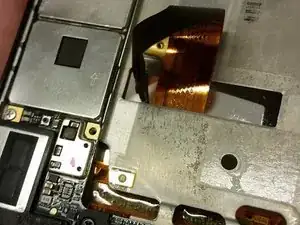

    • Flipping the phone over, we can see the display ribbon

    • Make sure none of this cable is stuck to the frame

  7. BdWVAeG5HnCLrf5X
    BdWVAeG5HnCLrf5X
    MLBNqybMwl2l1CWZ

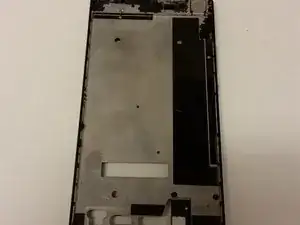

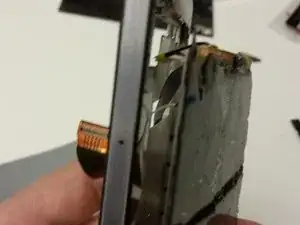

    • Pull the display ribbon through the frame

    • Make sure there is not a single glass-shard left on the frame. Any little splinter will cause significant damage to the new screen you're about to place

  8. RdgWgp1hWrJ124nL
    RdgWgp1hWrJ124nL
    Dda2rfrvZeLelGJM

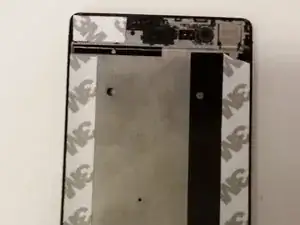

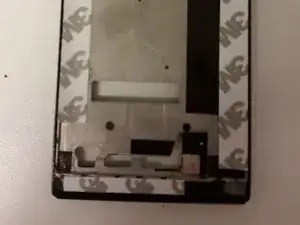

    • Tape up the whole frame with double-sided tape for a perfect fit that won't come loose

    • Make sure you don't cover important holes

    • Put the new screen in, sliding the cable first, making sure the whole cable (aswell as the little part sticking out)

  9. ljfpqRUdaxkYRdIW
    ljfpqRUdaxkYRdIW
    ZE1A2ChMqNQmZtlD

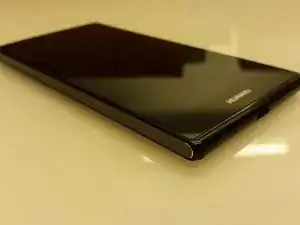

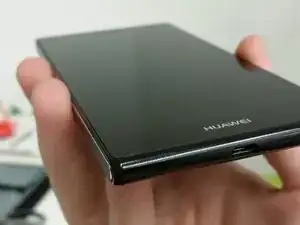

    • As good as new

Abschluss

- Never use metal opening tools

- Remove ALL the glass splinters from the frame before re-attaching the new one

- Have fun
