Huawei P8 Lite Camera Replacement

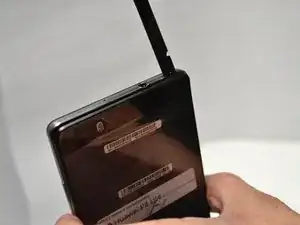

Using the Spudger, begin by removing both of the SIM slots from the side of the device.

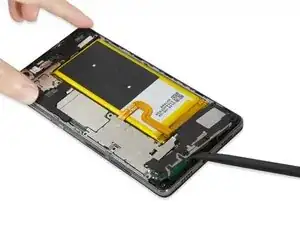

Then remove the back cover of the device with the Spudger. To prevent damage to the back cover, begin removing the cover half an inch to the right of the headphone jack and continue prying around the perimeter of the device.

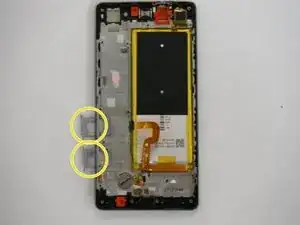

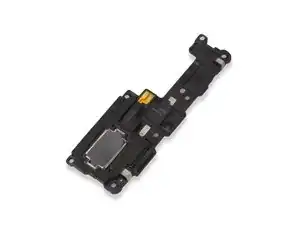

Locate the Loudspeaker at the bottom of the device.

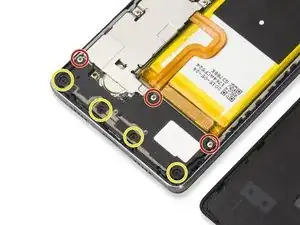

Remove the four black screws using the T5 Torx Schraubendreher.

Then use the Kreuzschlitzschraubendreher #000 to remove the three silver screws.

Use the Spudger to gently remove the Loudspeaker from the device. Place the replacement Loudspeaker into the device and follow these steps in reverse order to reassemble the device.

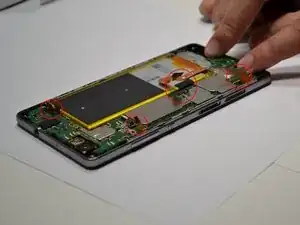

Gently separate the connectors attached to the motherboard.

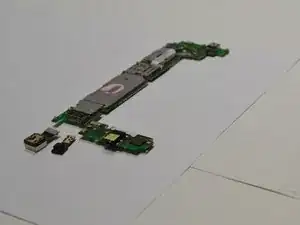

Carefully remove the motherboard from the device.

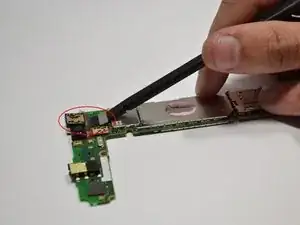

Once the motherboard is removed use the Spudger to remove the Front Camera.

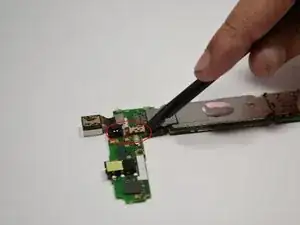

Similarly, use the Spudger to remove the Rear Camera.
