Huawei P9 Lite Akku austauschen

Geschrieben von: Tobias Isakeit
  • Kommentare: 50
Huawei P9 Lite Akku austauschen

Schwierigkeitsgrad

Mittel

Schritte

9

Zeitaufwand

50 Minuten

Einleitung

Verwende diese Anleitung, um den Akku deines Huawei P9 Lite auszutauschen.

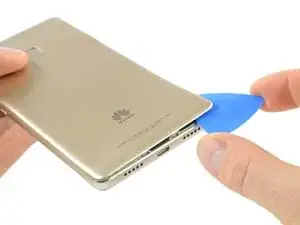

  1. TEq5nM4U4sDEDHNx
    TEq5nM4U4sDEDHNx
    l2sFSkJVVUauFbPP

    • Benutze ein Plektrum um die Rückabdeckung abzulösen, beginne damit an der unteren Kante.

    • Arbeite dich entgegen dem Uhrzeigersinn um die Rückabdeckung herum und löse vorsichtig nach und nach die Klickverbindungen.

    What could you use instead of an opening pick??

    Alfredo -

    Like, could a guitar pick wor? Or anything else?

    Alfredo -

    A guitar pick will also do.

    Tobias Isakeit -

    what can still be used besides guitar pick

    Tarshia Thompson -

    I had a hard time to open the back cover by opening pick. Then I used little, really little knife at first, and I continue to opening back cover using opening pick.

    Andy B -

    Heating up aroud the finger sensor to loosen the square adhesive tape ..

    Hishamchohan -

    If you do not have any picks, You can also adapt an old credit or utility card by cutting it in to thirds. Then with some fine emery or sand paper, rub a sharp point on the one edge of the card. This will help you get access to the clips that hold the rear cover on. The one i did yesterday had quite a lot of adhesive around the edge & around the finger print sensor. Another tip with an old credit card is to cut it in to narrow strips to insert in to where you have separated the cover from the frame to stop it getting stuck to the adhesive again.

    gazza667 -

  2. HHkVVuLiGxGZQ3JZ

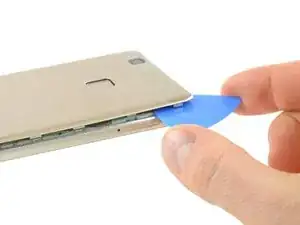

    • Unter der Rückabdeckung befindet sich etwas Klebstoff, mit dem sie am Akku und an der Metallplatte im oberen Bereich befestigt ist.

    • Sei vorsichtig mit dem Flachbandkabel auf der rechten Seite.

    • Verwende das Opening Pick, um die Rückabdeckung nach oben zu hebeln und vom Klebstoff zu lösen.

    Most of the adhesive is around the fingerprint cell and on the battery itself. You can slowly pull the back cover from its side but make sure not to break it. Push the mediator or a longer piece of plastic under the back cover to slowly destroy the adhesive.

    Nicolas Combaret -

    Slowly, slowly wins the day. Nicolas is right and comes off a charm. The most nerve wracking part of this longish repair.

    John Nordstrom -

  3. IWjHQtQ5StgPJEIy

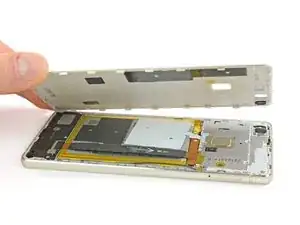

    • Wenn die Rückabdeckung vom Kleber befreit, kannst du sie vollständig abnehmen.

    Hi! Im so sad! At the begginig of the operation i ve broken the white seal/connector that in one side is connected to the board and the other side is "glued" to the battery. Can someone help me? how can i solve this?? There is no image displayed on the screen. but there is vibration, sound, notifications... can someone help me please???

    Diogo -

    What you broke is handling the NFC, and doesn’t have anything to do with the display. You probably damaged the ribbon right below the battery, since that’s what links the display to the motherboard.

    Polaris -

    Oups ! L’antenne NFC était solidement collée à l’intérieur de la coque et j’ai donc déchiré sa nappe en ouvrant la coque. Heureusement, je n’utilise pas les fonctions NFC et, à part cela, tout a l’air de fonctionner normalement.

    Michel Orban -

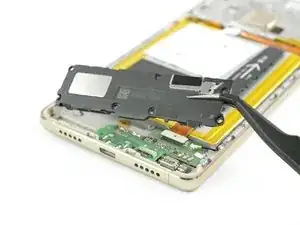

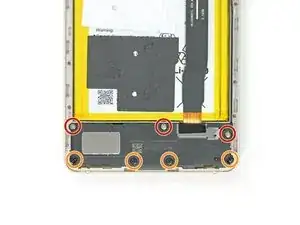

  4. YkHOhGYJUh6tCuYS
    YkHOhGYJUh6tCuYS
    1faC3OelbUdVZYRO
    iUJfE4DfWyUTQuZw

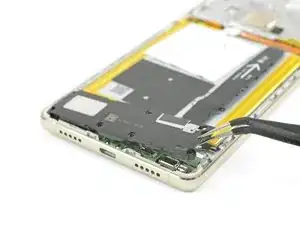

    • Entferne im unteren Bereich folgende Schrauben:

    • Drei 2,9 mm Kreuzschlitzschrauben #00

    • Vier 3,8 mm Kreuzschlitzschrauben #00

    • Nun kannst du die Lautsprechereinheit heraus nehmen.

  5. cEIdkjnxJ2ABeg1m

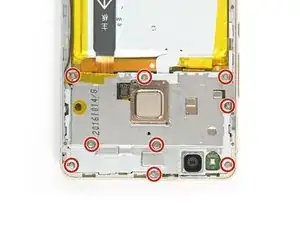

    • Entferne die neun Kreuzschlitzschrauben #00, mit denen die Metallabschirmung befestigt ist.

    • Auf einigen der Schrauben sind Aufkleber zur Manipulationssicherung. Nimm sie ab, damit du den Schraubendreher korrekt einsetzen kannst.

    Qu’est ce qu’un “indicateur d’eau”?

    chevaliernoir -

    Une petite pastille qui change de couleur au contact de l’eau. Les fabricants s’en servent pour nullifier la garantie : si ta pastille indique que de l’eau s’est infiltré, tu devra payer ta réparation.

    Polaris -

    Are all the screws the same size ?

    Hishamchohan -

    yes they are

    Adam M -

  6. MterKwicy2L12yfj
    MterKwicy2L12yfj
    tZRxJIr3qNvXpXLj

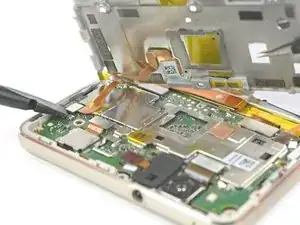

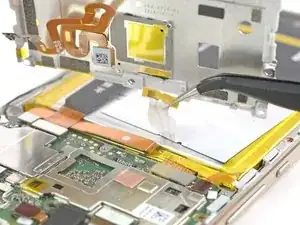

    • Entferne die Abschirmplatte noch nicht, sie ist noch durch einen Stecker und ein angeklebtes Kabel verbunden.

    • Löse den Fingerabdrucksensor mit einem Spudger vom Motherboard ab.

    • Löse das NFC-Antennenkabel von der Metallplatte ab.

    can we just remove NFC antenna and dont want to install int back?

    Mohd Danial Bin Harun -

    Note there are two plastic tabs at the top of the shield plate. Unlock them with a mediator, the plate will come easily after that.

    Nicolas Combaret -

    Buongiorno,

    va sostituita l'intera piastra metallica contenente il sensore impronte e la fotocamera, oppure il sensore é estraibile dalla piastra?

    Grazie

    LUIGI

    GI GI -

    Yes, it is possible to remove just the fingerprint sensor from the motherboard shield. Remove the small metal plate on the inside of the shield covering the sensor and push the fingerprint sensor through from the other side.

    Tobias Isakeit -

    Grazie mille.

    GI GI -

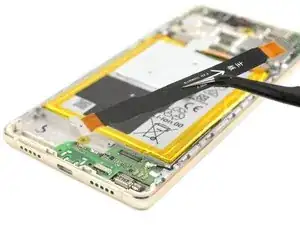

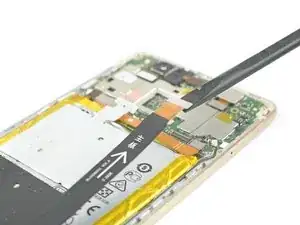

  7. AqGI52cRiqLhMWHm
    AqGI52cRiqLhMWHm
    ykIbMsOT3E2MrwjY
    cTOFAgwqU2ECbvLM

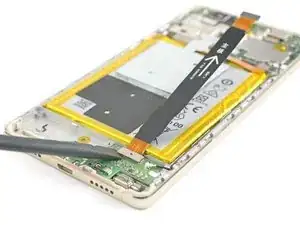

    • Trenne das Motherboardkabel an beiden Enden und lege es zur Seite.

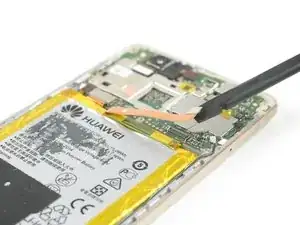

  8. rjFLSyZDPSGAAETp
    rjFLSyZDPSGAAETp
    3QUK3wOoMBToHUig

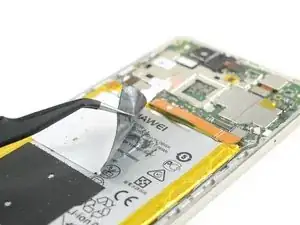

    • Löse die NFC-Antenne vom Akku ab.

    • Achte darauf, die Antenne nicht einzureißen oder zu knicken.

    • Wenn du den Akku nur ausbaust, um an das Display zu gelangen, kannst du die NFC Antenne am Akku lassen.

    • Trenne den Stecker des Akkus.

    The NFC Antenna is delicate. If you are just replacing the batter then i had to use a bit of heat to soften the adhesive before gently peeling it away from the battery. The adhesive is quite stubborn.

    gazza667 -

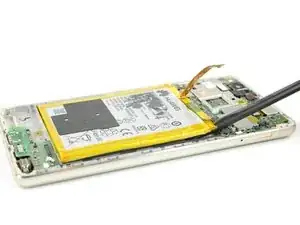

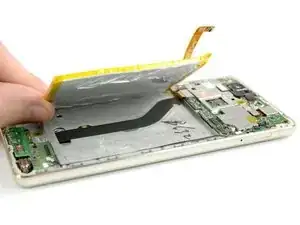

  9. 2HNcNE6A4oojisLq
    2HNcNE6A4oojisLq
    VRoanFSZAVRPaXFR
    jdEa1lbcvSxsAFwD

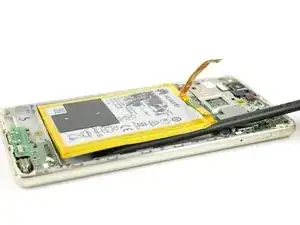

    • Schiebe den Spudger unter den Akku an der gezeigten Stelle und hebele ihn langsam heraus.

    • Vermeide es, den Akku zu verbiegen und erwärme ihn nochmals, falls dies nötig ist.

    • Achte darauf, das Displaykabel, das in der Mitte unter dem Akku verläuft, nicht zu beschädigen.

    • Ersetze beim Zusammenbau den alten Kleber durch doppelseitiges Klebeband oder vorgestanzte Klebestreifen.

    Bonjour j'ai réalisé toutes les etapes mais mon telephone ne se charge plus.que faire ?

    Amenis -

    Bonjour ! Alors deux options sont possibles :

    1) la batterie était complètement vide et cela prend du temps avant que le téléphone s’allume et affiche que la batterie est en train de charger.

    2) vérifiez que les connexions des nappes à l’intérieur, surtout celle de cette étape. Cette nappe relie en effet le circuit inférieur au supérieur, fait donc le lien entre la batterie et le port de recharge.

    Bonne chance !

    Claire (iFixit EU)

    Claire Miesch -

    Super !

    J’ai réussi. Le plus pénible sont les différents endroits collés.

    Particulièrement sous la batterie… et l’antenne NFC ! Qu’on ne peut pas recoller ! (jai mis du scotch, j’espère que ça ira…)

    A priori, le sèche-cheveux aide un peu pour ramollir la colle sous la batterie.

    J’ai pu aussi enlever de la colle en soulevant l’autre côté (doucement). Prendre son temps est essentiel ^^

    Par contre pas remis de l’adhésif dessous comme indiqué.

    ChtiClem -

    The battery i removed yesterday had way more adhesive on the under side than in the above pic. I ended up having to get the old battery fairly warm before the adhesive would release. A tip if you are doing this is to use an old credit card cut in to narrow strips and insert them in to the gap where the adhesive release. That way the battery shouldn’t re-stick before you remove it.

    gazza667 -

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
