Huawei Phone P7 Headphone Jack & Vibration Motor Assembly Replacement

Geschrieben von: Sophia
  • Kommentare: 0
Huawei Phone P7 Headphone Jack & Vibration Motor Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. UbjIVw5TnIoV4CTA
    UbjIVw5TnIoV4CTA
    SjPqXFXyZsUb2ENP
    s11cGqWMwrEmeK6T

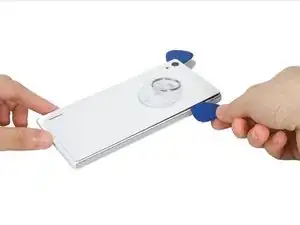

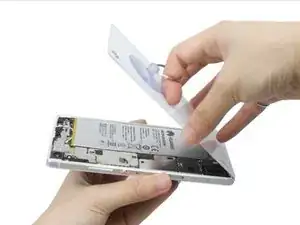

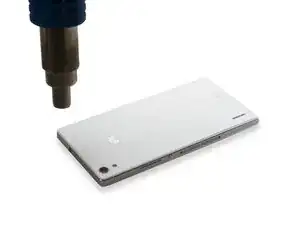

    • Remove back cover.

  2. 5aBvbXV2vACxxkoe

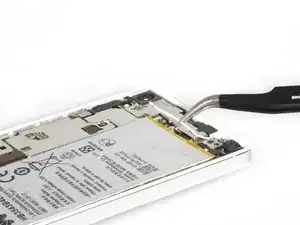

    • Remove small signal cable.

  3. Ro1ErZGUlTYCQTsR
    Ro1ErZGUlTYCQTsR
    bGHm1WGlVBW4vGEW

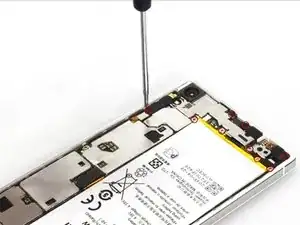

    • Twist off those nine screws and remove the bracket.

  4. qLLPdf1HJVF3BAum
    qLLPdf1HJVF3BAum
    tXWtTNDEsjaYbqVi
    nkpTscBVeEskFuxy

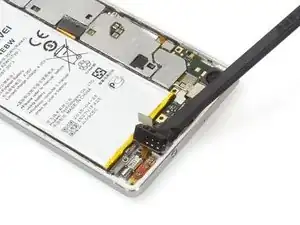

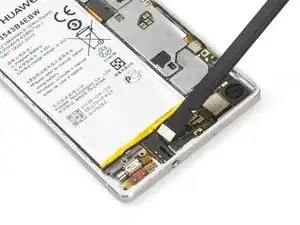

    • There is adhesive under the vibration motor, so release the connector and pry up to remove the assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
