Huawei Pronto LTE Display Screen Assembly Replacement

Geschrieben von: Crystal Edwards
  • Kommentare: 0
Huawei Pronto LTE Display Screen Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

The display screen is a vital part of the device. Seeing what you're doing on your phone helps to navigate each move you make in the correct order.

  1. wjgLba53dRYUaC3I
    wjgLba53dRYUaC3I
    yueo2UYsSyaYs5xt

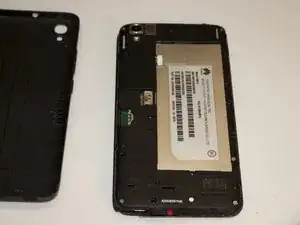

    • Remove the back cover of your Huawei Pronto LTE using an opening tool.

    • Lift the back cover off of the device after the four corners are unlatched.

  2. RNK2I2CtCvbTULnL
    RNK2I2CtCvbTULnL
    tPxLVQUkn2UBvIUW
    HMCOPyWZpTBwvCZR

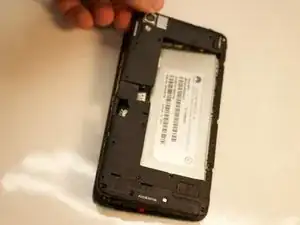

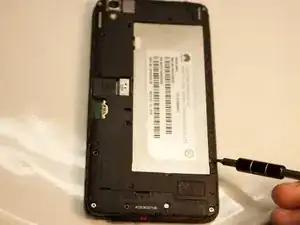

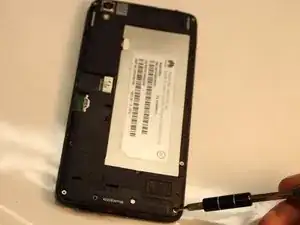

    • Remove the 15 screws on the back of the device using a Phillips #000 screwdriver.

    • Hold the device in place while you are doing this step.

    • Lift the inner cover gently by using a spudger.

  3. htwydyArBG6AObau
    htwydyArBG6AObau
    GLVdrs6nsiZkhwrA
    Jn4F4sSWG4OTfQGM

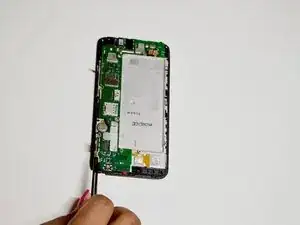

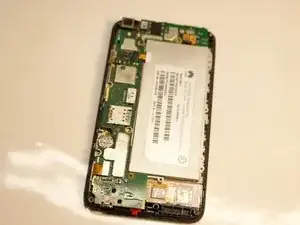

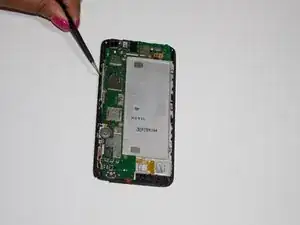

    • Detach the yellow latches along the sides to remove the motherboard.

  4. bvHQpTcKogRT5w6h
    bvHQpTcKogRT5w6h
    AbEoFmKAFLOKcC5U
    PVTLyqCufdA1uiyc

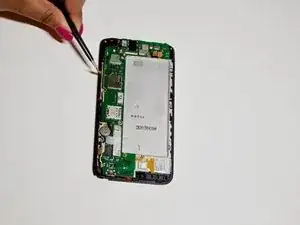

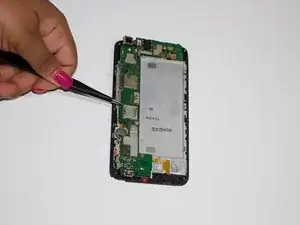

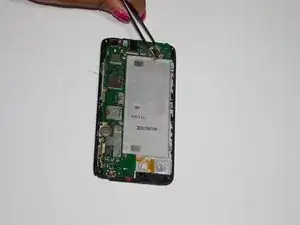

    • Ensure that all latches are detached and that there are no extra screws to avoid damaging the motherboard.

    • Use tweezers to gently remove the motherboard from the device.

  5. FPtwZkR5wPSsE3eG
    FPtwZkR5wPSsE3eG
    YOsAWcQcqowuv3mr
    s4vTQr1kLYWpIH6x

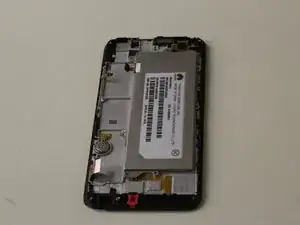

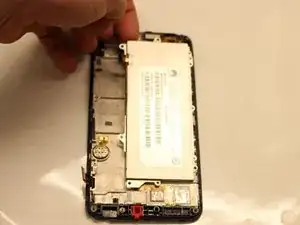

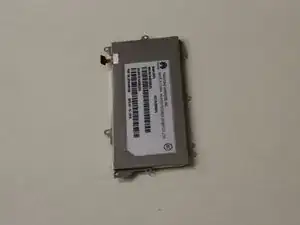

    • The battery should be revealed once the motherboard is removed.

    • Lift the battery from the top left corner.

  6. wpHJHfVJwASBhGJE
    wpHJHfVJwASBhGJE
    yZ6IKDEM2NjYIVhi

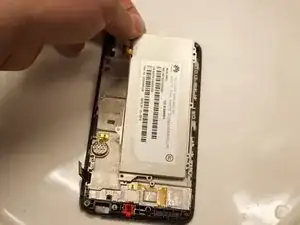

    • Remove the motherboard. Refer to the Motherboard Replacement Guide.

    • Remove the battery.

  7. wTSxHNtcY64FZRKj
    wTSxHNtcY64FZRKj
    Qnafc53gR2JZPsru

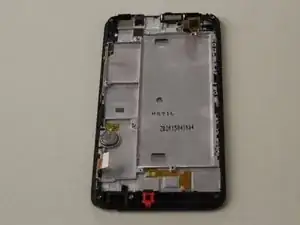

    • Once the battery is removed the screen will be visible.

Abschluss

To reassemble your device, follow these instructions in reverse order.
