Huawei SnapTo G-620 Battery Replacement

Geschrieben von: Brian Omer Uzan
  • Kommentare: 0
Huawei SnapTo G-620 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

If your Huawei SnapTo G-620 fails to charge the battery may need to be replaced. This guide shows how to replace your SnapTo's battery.

  1. UPZ15DSQlWTTyNdm
    UPZ15DSQlWTTyNdm
    jfbG5AEnQHvLNGnI
    htUIQoiAEjA6BiOS

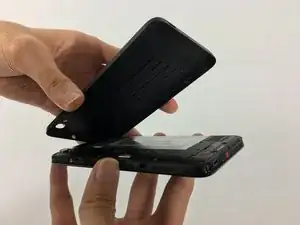

    • Pry open the back cover with your fingernail, using the divot to the lower left hand corner.

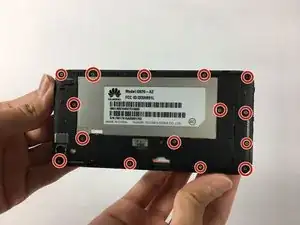

    • Remove all fifteen 4mm Phillips J00 screws on the back panel.

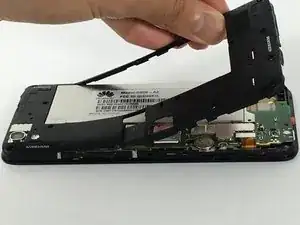

    • Using a metal spudger or your fingernail, remove the back panel.

  2. pc1pI46cL4K5Y126

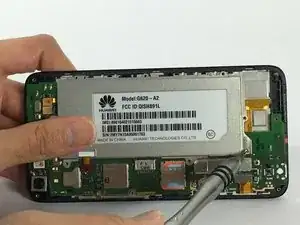

    • Remove the pictured 4mm Phillips J00 screw.

  3. NvDbDneYE6YO2pOU
    NvDbDneYE6YO2pOU
    JuFZubjCaGrQlMIE

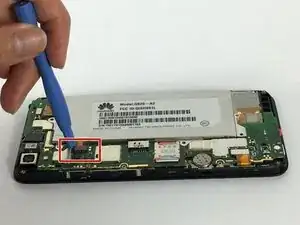

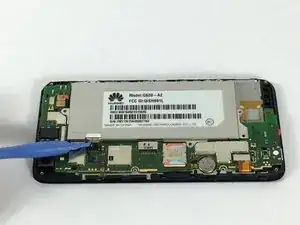

    • Use a plastic opening tool to remove the pictured flat-top connector.

  4. N55CpGDX5kDVpFJC

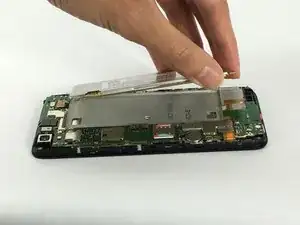

    • Remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
