Huawei SnapTo G-620 Motherboard Replacement

Geschrieben von: Brian Omer Uzan
  • Kommentare: 0
Huawei SnapTo G-620 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

If your Huawei SnapTo G-620 won't turn on, then the motherboard may need to be replaced. This guide shows you how to replace the motherboard in your SnapTo.

  1. UPZ15DSQlWTTyNdm
    UPZ15DSQlWTTyNdm
    jfbG5AEnQHvLNGnI
    htUIQoiAEjA6BiOS

    • Pry open the back cover with your fingernail, using the divot to the lower left hand corner.

    • Remove all fifteen 4mm Phillips J00 screws on the back panel.

    • Using a metal spudger or your fingernail, remove the back panel.

  2. pc1pI46cL4K5Y126

    • Remove the pictured 4mm Phillips J00 screw.

  3. NvDbDneYE6YO2pOU
    NvDbDneYE6YO2pOU
    JuFZubjCaGrQlMIE

    • Use a plastic opening tool to remove the pictured flat-top connector.

  4. N55CpGDX5kDVpFJC

    • Remove the battery.

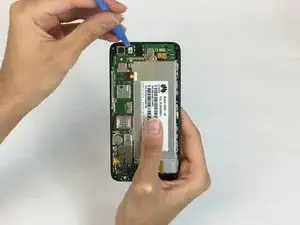

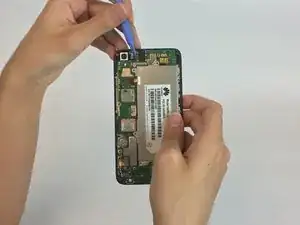

  5. fTCvPgeKAvb2NrCL
    fTCvPgeKAvb2NrCL
    PkuqmwQVtwHZUdHZ

    • Use a plastic opening tool to remove the pictured flat-top connector.

    • Using the plastic opening tool remove the camera.

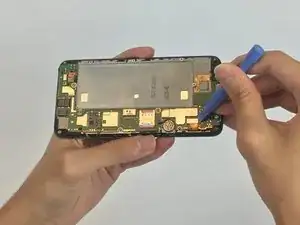

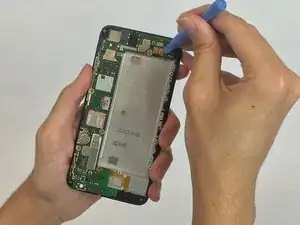

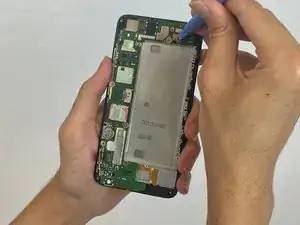

  6. QZJWT2DaSfWRqkHj
    QZJWT2DaSfWRqkHj
    XNRMGvm5xoiyN1yC
    rVA1yRFPJpUCQSZD

    • Use the plastic opening tools to remove all the remaining flat-top connectors

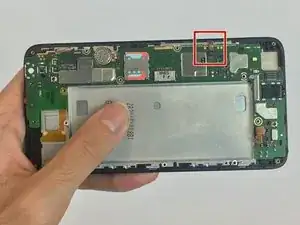

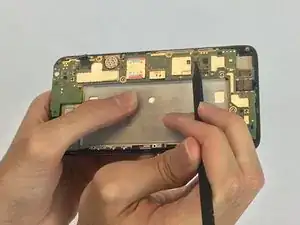

  7. EaOONstrRduUuAis
    EaOONstrRduUuAis
    yocdXAZ4KaOSvaYG
    gRYniHut3Rqbq1rx

    • Using the spudger, pry open the zif connector, and remove the cable.

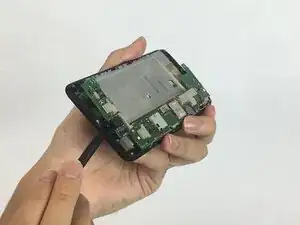

  8. s2SGRNUj6ZhjlBac

    • Using flat-side of spudger, remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
