Huawei Y7 2019 Charging Board Replacement

Geschrieben von: ZFix
  • Kommentare: 0
Huawei Y7 2019 Charging Board Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

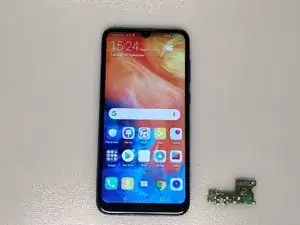

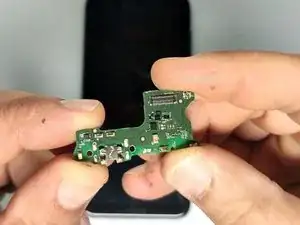

  1. UG2FJOQ5TyYEZWxw
    UG2FJOQ5TyYEZWxw
    ulABO2L6I6aRILCj

    • Huawei Y7 2019 Charging board / Sub Board Replacement

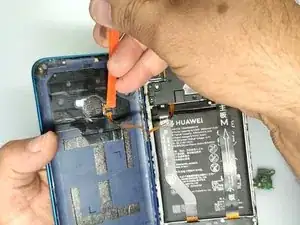

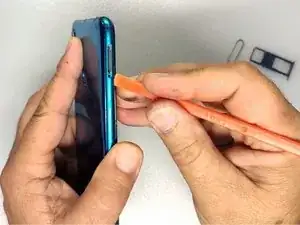

  2. SCKDojMcJfftYxG1
    SCKDojMcJfftYxG1
    JFKhOhmgRgPY5KNI
    5ADKVRNjjngqKBjw

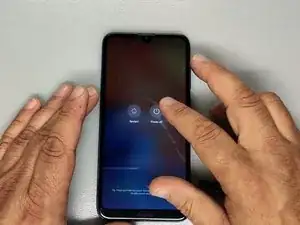

    • Switch off the device.

    • Remove the SIM Tray.

    • Use plastic opening tool to remove the back / battery cover.

    • Gently disconnect the Fingerprint Flex Cable.

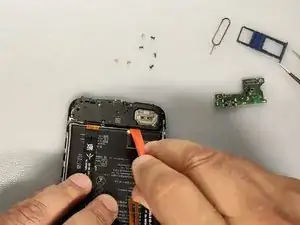

  3. sqLKYDCv3gXrkTie
    sqLKYDCv3gXrkTie
    KFeQkOBBGrpILjWR
    L4hidQDnwIaRRHv5

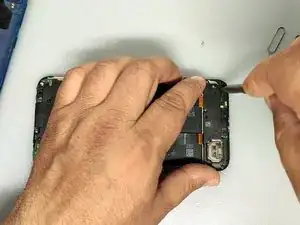

    • Unscrew the 7 Phillips screws.

    • There are 3x white screws and 4x black screws.

    • Use the plastic tool to unstick the daughter board plastic cover.

    • If you find it difficult to remove the plastic cover - use hot air to melt the adhesive.

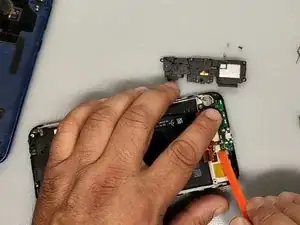

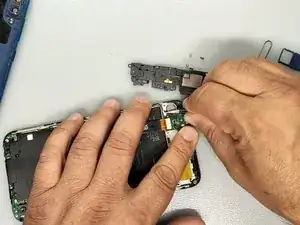

  4. jSC5DNydGBTnfBsQ
    jSC5DNydGBTnfBsQ
    5GkUWXUmyAdeuKgP
    TGTLIBlGKPPEffyZ

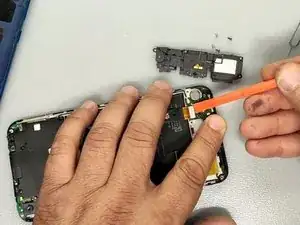

    • Gently disconnect the main flex and the coaxial antenna cable.

    • Use Plastic tool to remove the charging board.

    • If you find it difficult to remove the plastic cover - use hot air to melt the adhesive.

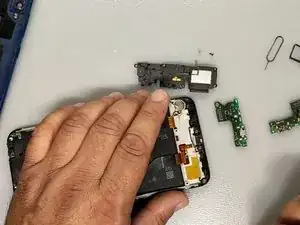

  5. SsvYpwMQRVuYDoGZ
    SsvYpwMQRVuYDoGZ
    bx23KKJswmHfwQlh
    tEWTZFq2JJcDPBbo

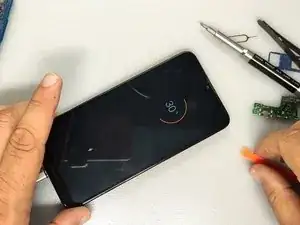

    • Test the charge before assembling the device.

    • Thank you :)

Abschluss

To reassemble your device, follow these instructions in reverse order.
