Huffy Kids Tricycle Seat Replacement

Geschrieben von: Babatunde Adewunmi

Kommentare: 0

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

15 Minuten

Einleitung

This guide is used for the replacement of a Huffy Kids Tricycle seat. A broken or damaged seat caused by either falling hard on the ground or being crushed accidentally, these guides would make replacement easy and faster. You would be needing just two tools to complete this guide.

SKN(Stock Keeping Number): 62960
ID: 34634A3E
UPC (Universal Product Code): 2891429161
Brand: Huffy Bicycle Company
Manufacturing Number: 29161C
Item Height: 9 inches
Item Length: 3 inches
Item Weight: 0.15 lbs
Item Width: 3 inches

Werkzeuge

Ersatzteile

Schritt 1

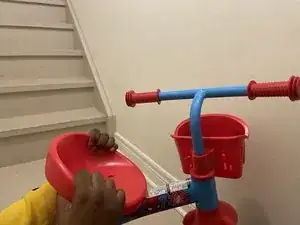

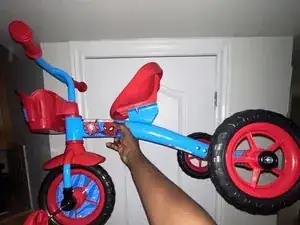

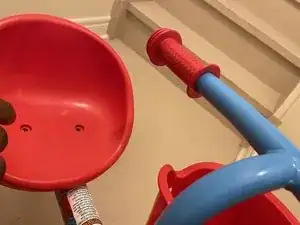

Focus on the seat area for the replacement.

Schritt 2

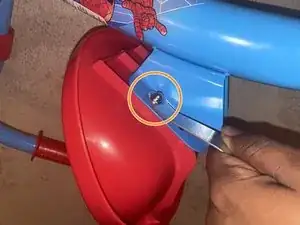

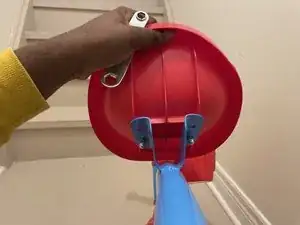

Place the spanner on the bolt on the underside of the seat.

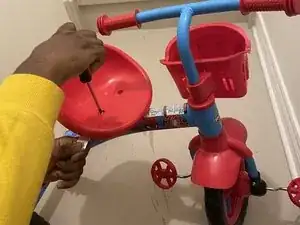

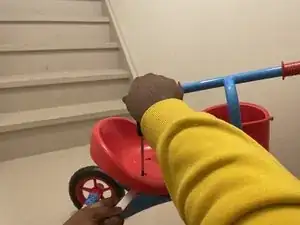

Then use a Phillips #2 screwdriver to remove the screw on the top of the seat.

Schritt 3

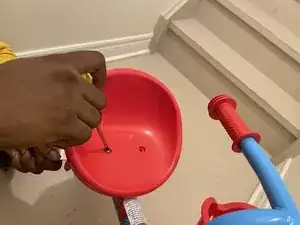

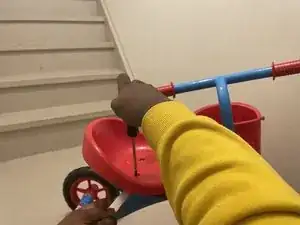

Repeat for the other screw.

Schritt 4

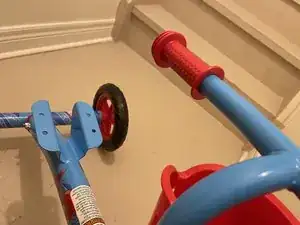

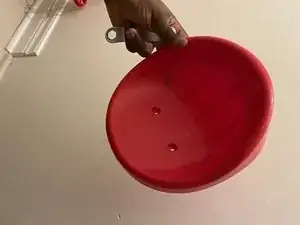

Lift the seat off of the trike frame.

Schritt 5

Place the new seat on the seat bracket, lining up the screw holes in the seat with the appropriate holes on the bracket.
Note that the bracket has two sets of holes for mounting the seat, so choose the appropriate set for the height of the rider. A taller rider will use the further set while a shorter rider will use the set closer to the handlebars.

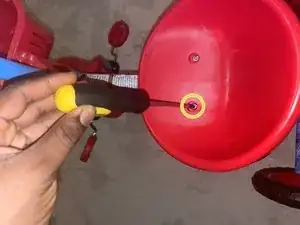

Insert the screws from the top of the seat, using your spanner to hold the nuts under the screws.
