Hytera TC-580 Microphone Replacement

Geschrieben von: Stuart
  • Kommentare: 0
Hytera TC-580 Microphone Replacement

Schwierigkeitsgrad

Very difficult

Schritte

15

Zeitaufwand

15 - 25 Minuten

Einleitung

Remove and replace the microphone built into the TC-580 circuit board. This will require soldering that could permanently damage the circuit board of your radio so please consider other options for repair. This repair is for users that can't have other parties hear them on the radio.

  1. TUeXthX2xoUDZUfE
    TUeXthX2xoUDZUfE
    YEakyvIrjgbISMAk

    • Remove the two 10mm Phillips #0 from the belt clip.

  2. vWxtEHAxHvAWjFGQ
    vWxtEHAxHvAWjFGQ
    QmChGBNjAS2tBNgw

    • Push in the release button and pull up on the battery to remove.

  3. B5hAOc6ICGkvnYbo

    • Twist antenna counter-clockwise and set damaged antenna aside.

  4. PAFMKaoLTKje2ZHC

    • Remove the volume knob by firmly lifting up on both sides of it.

  5. ycbTbMXFAoQsMakY

    • Remove the orange o-ring around volume knob using tweezers.

  6. MPJC2KJW2rKnZLwP

    • Remove grey nut from base of volume knob by turning it counterclockwise with a set of tweezers.

  7. 1DTTrJedWeWKg1Ra

    • Remove the brass washer from the base of the antenna slot by turning it counterclockwise with a set of tweezers.

  8. hsIQLjXYrWpR4N6F
    hsIQLjXYrWpR4N6F
    1XsDZwKfaZGI3M2E

    • Remove the two 15mm T8 Torx screws from the base of the battery cavity.

  9. HBjUIHbGDjIaCGD5

    • Using a plastic opening tool, pry in between the plastic case and metal circuit board to remove the board.

  10. ZnJQAvYhOLrrcjKA

    • Peel off the keypad by hand.

  11. LgOkYYjqj5eLsWpb
    LgOkYYjqj5eLsWpb
    VhtIcDRSdH2oQxCY
    isPtgnWkWVeN4Z2a

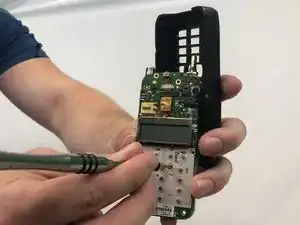

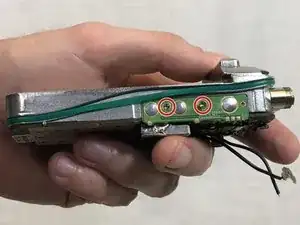

    • Remove eleven 4mm Phillips #00 screws.

  12. X4cYmcKWFSkputuv

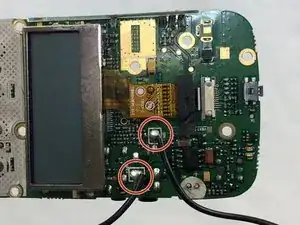

    • Apply a soldering iron to the solder joints to remove the two wires connecting the speaker to the circuit board.

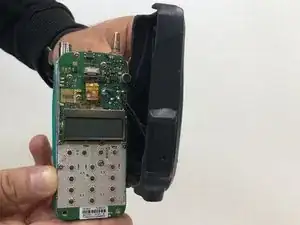

  13. DZyX4FMoZ3jbeUcZ

    • If not already done, remove the circuit board completely from the case.

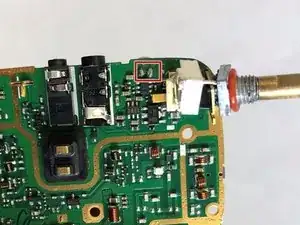

  14. YKWHGIfcv3PClL5N

    • Desolder the two microphone solder joints.

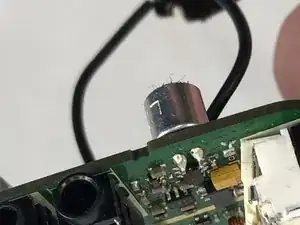

  15. jvabdcsQMcn22IyY

    • The microphone should fall out after all the solder has been removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
