Hyundai Sonata Battery Replacement

Geschrieben von: Kace Coble

Kommentare: 4

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

15 Minuten

Einleitung

When someone discovers that their car won’t start, and that they may need to replace their car battery. These simple steps will show them how to accomplish this task on a Hyundai Sonata.

Werkzeuge

Ersatzteile

12V Car Battery

Schritt 1

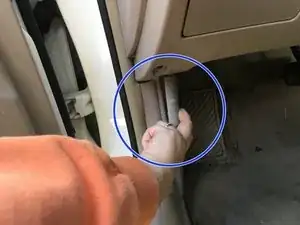

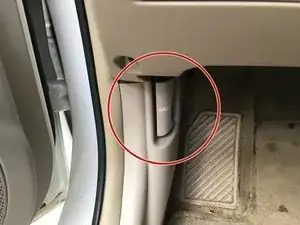

Locate the Hood Latch in the car door.

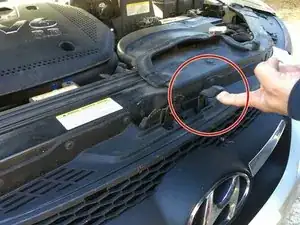

Pop the hood.

Schritt 2

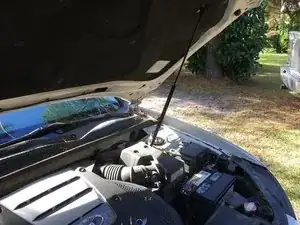

Open the hood and secure the arm.
Not securing the lift arm could result in injury!

Schritt 3

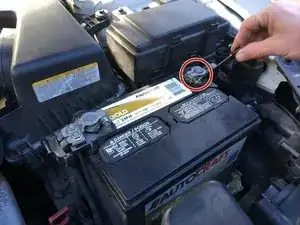

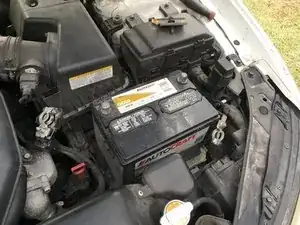

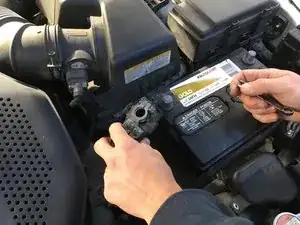

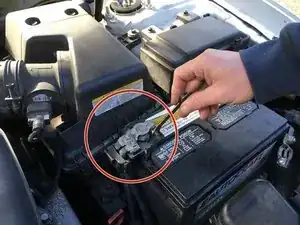

Locate the car battery and use the ratchet to loosen the negative (-) cable.

Thank you, you saved this women's battery from death to get to the garage the next day and a whole lot of headache. Lol. Defective rear brake light switch. Thank you, thank you.

slscharneck35 -

Schritt 4

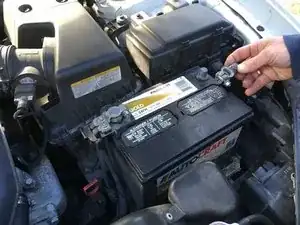

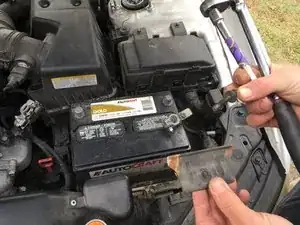

Next, use the ratchet to loosen and remove (+) the positive cable.

Schritt 5

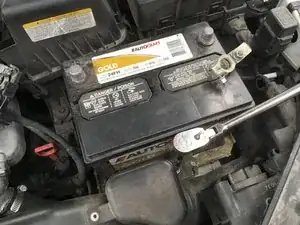

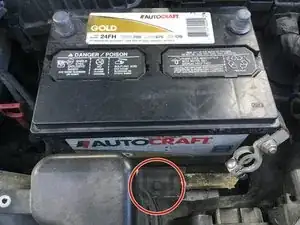

Loosen the bolt that secures the battery in place.
You can use either a 12 mm wrench, or in the example we used a ratchet extension with a 12mm socket

Schritt 7

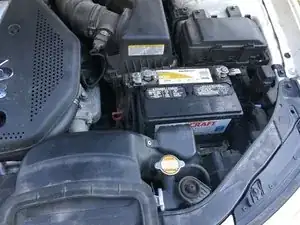

Insert the new car battery.
Do not place the new battery on the ground. Place it on a piece of cardboard or plywood, but not dirt or asphalt.

Abschluss

To reassemble your device, follow these instructions in reverse order.

3 Kommentare

If the bolt that secures the battery is rusted to the nut on the underside of the battery tray, the bolt will spin freely without loosening. This has the potential to be time consuming, because it is difficult to access the nut on the underside of the battery tray.

Justin Viener - 02/10/18

there is a ductwork over the batery in my car that goes to the air clener assembly, so how do you remove this part before the bolts for the battery?

Bruno85 - 04/10/20

I found out that the ductwork for the fresh air is held on by three plastic screws that come off then pop out the plastic retainers and lift the air duct out of the way and reverse to install

Bruno85 -
