IBM ThinkPad 560z Hard Drive Replacement

Geschrieben von: Derek Driscoll
  • Kommentare: 1
IBM ThinkPad 560z Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will show you how to remove and replace the hard drive in an IBM ThinkPad 560z.

  1. VLkFL2UfT6Avn6wX

    • Remove the 7 mm Phillips #0 screws.

    • Remove the 10 mm Phillips #0 screws.

    • Remove the 14 mm Phillips #0 screw.

  2. rqiK4t1SMgjWJd3E
    rqiK4t1SMgjWJd3E
    usAFDpMjSYxJoFyN

    • Open the flap on the left hand side.

  3. KdhnFNUWxMDIFbht
    KdhnFNUWxMDIFbht
    RBfWQgDyMXEGKqN1

    • Insert the plastic opening tools between the right and left sides of the latch.

    • Pry the right side of the latch, and then pry the left side to detach the laptop's cover.

  4. Ro5COeuEA5aqJLNB
    Ro5COeuEA5aqJLNB
    qXOgpy1FtrImEMkr

    • Open the flap on the right side.

  5. YZb4nrmyEiOPCkvT

    • Insert the plastic opening tools towards the right side of the latch.

    • Gently pry the right side out to release the top cover.

  6. v6xk3s11FGIGoEuL
    v6xk3s11FGIGoEuL
    4rssWmqTTQafTdhg

    • Lift the keyboard slowly.

    • A cable connects the keyboard to the motherboard. If you are not careful, you will damage the cable.

  7. Fsqs41ePJIKwPW1j

    • Use your fingers or a spudger to detach the connector.

  8. UyDXc35JRDNJVCjX
    UyDXc35JRDNJVCjX
    HCyNMETCC5vDRCiV

    • Carefully lift and remove the keyboard.

  9. 2nxCJTgJyiltNQJB

    • On the back of the computer, use a Flathead screwdriver to remove this lone screw.

  10. 5bjLTiNnvuIaxPAX
    5bjLTiNnvuIaxPAX
    Pkls6ZoZqkaCKJvD

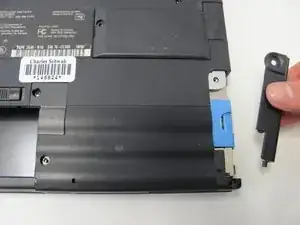

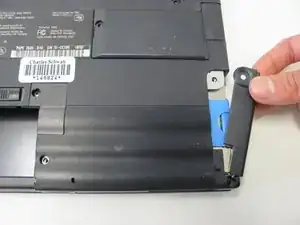

    • After the screw is out, gently remove the cover.

  11. SVS6FOt5v4clAOBW
    SVS6FOt5v4clAOBW
    WJpE2PGu3RHf2jCO
    PWUlViX5yonPA4MO

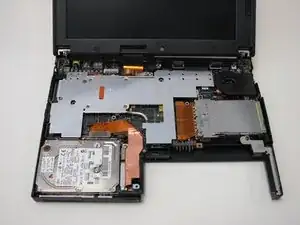

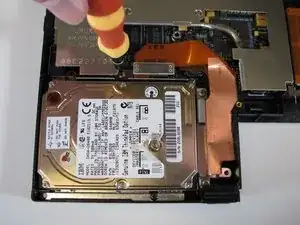

    • Turn the computer back over so the hard drive faces up. Remove the shown screw with a Phillips screwdriver.

  12. EdFD4WUO5BYdoILR

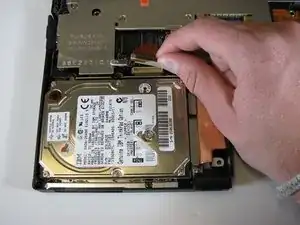

    • Make sure you are grounded and detach the IDA cable connecting the hard disk to the motherboard.

  13. 2Z4wISqQG1uLBlhc
    2Z4wISqQG1uLBlhc
    WfjQBHDfLLM2CCxR

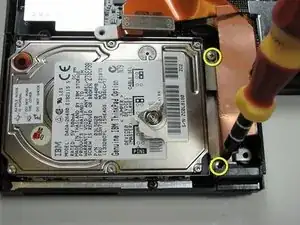

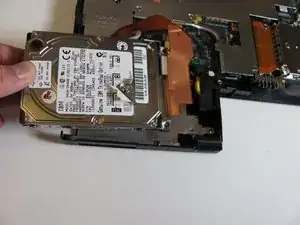

    • Remove the final two screws (shown) and slide out the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Derek Driscoll

Mitglied seit: 15/04/10

119 Reputation

Ein Kommentar

You don't have to go to this length to remove the hard drive on a 560Z. Only do steps 0 (remove battery), 9 (remove screw) and 10 (remove cover). Then simply grab the blue tab of the hard drive caddy and pull the drive out of the bay. Complete directions on maintenance of the IBM Thinkpad 560Z can be found here:

http://www.thinkpads.com/support/hmm/hmm...

The Hardware Maintenance Manual has all of the information you need to take a 560Z apart and put it back together.

The procedure outlined here is similar to what the 560, 560E and 560X systems required; the 560Z is totally different when removing the hard drive.

Raymond -
