IBM ThinkPad 560z Keyboard Cover Replacement

Geschrieben von: Derek Driscoll
  • Kommentare: 0
IBM ThinkPad 560z Keyboard Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

This is a step by step guide to removing the keyboard cover of an IBM ThinkPad 560z. The keyboard cover is most commonly removed to facilitate the cleaning or replacement of the keyboard.

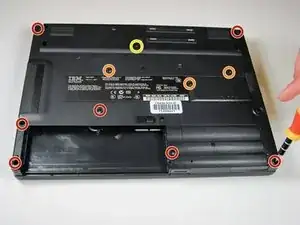

  1. VLkFL2UfT6Avn6wX

    • Remove the 7 mm Phillips #0 screws.

    • Remove the 10 mm Phillips #0 screws.

    • Remove the 14 mm Phillips #0 screw.

  2. rqiK4t1SMgjWJd3E
    rqiK4t1SMgjWJd3E
    usAFDpMjSYxJoFyN

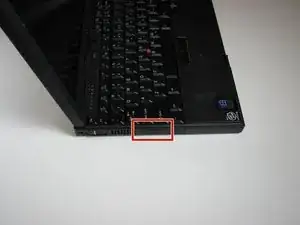

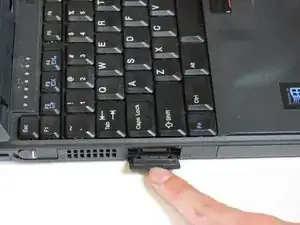

    • Open the flap on the left hand side.

  3. KdhnFNUWxMDIFbht
    KdhnFNUWxMDIFbht
    RBfWQgDyMXEGKqN1

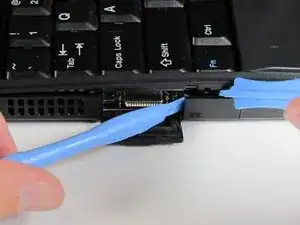

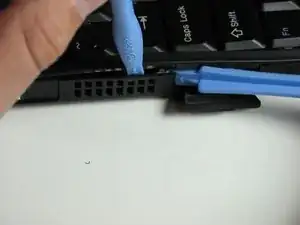

    • Insert the plastic opening tools between the right and left sides of the latch.

    • Pry the right side of the latch, and then pry the left side to detach the laptop's cover.

  4. Ro5COeuEA5aqJLNB
    Ro5COeuEA5aqJLNB
    qXOgpy1FtrImEMkr

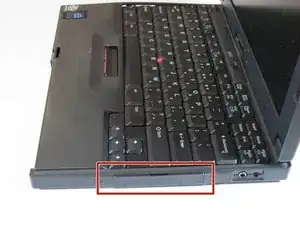

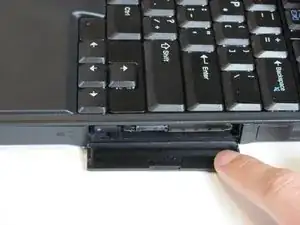

    • Open the flap on the right side.

  5. YZb4nrmyEiOPCkvT

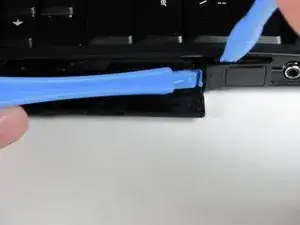

    • Insert the plastic opening tools towards the right side of the latch.

    • Gently pry the right side out to release the top cover.

  6. v6xk3s11FGIGoEuL
    v6xk3s11FGIGoEuL
    4rssWmqTTQafTdhg

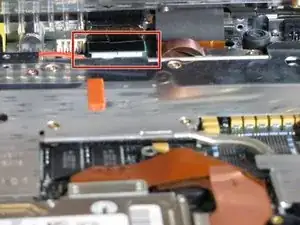

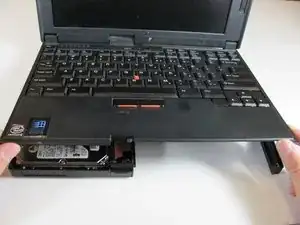

    • Lift the keyboard slowly.

    • A cable connects the keyboard to the motherboard. If you are not careful, you will damage the cable.

  7. Fsqs41ePJIKwPW1j

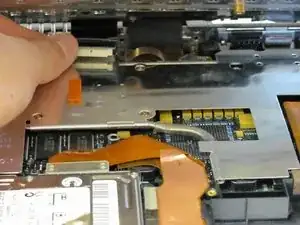

    • Use your fingers or a spudger to detach the connector.

  8. UyDXc35JRDNJVCjX
    UyDXc35JRDNJVCjX
    HCyNMETCC5vDRCiV

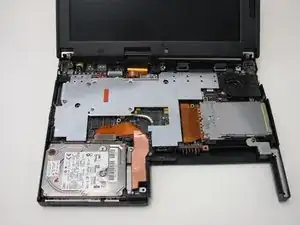

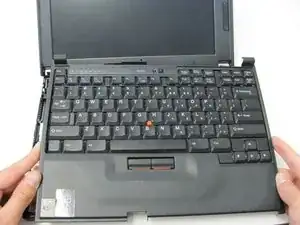

    • Carefully lift and remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
