IBM ThinkPad 600E RAM Replacement

Geschrieben von: Harold Rocha
  • Kommentare: 1
IBM ThinkPad 600E RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you how to replace the RAM from your laptop. There are several reasons to replace your RAM. The most common reason is to increase your RAM memory. Other reasons could be that it could faulty or damaged.

  1. 5AqLI2NZESuDxHXF
    5AqLI2NZESuDxHXF
    qx4bG5qeWKrLOkUg
    KbUVUwNHkcNlkFQO

    • Flip the laptop over and find the battery latch.

  2. mjJfARTvHFCSHlRE

    • Move the latch to the side with the unlocked symbol.

  3. UjKm1OvEVSAjpATs
    UjKm1OvEVSAjpATs
    jRTQ2wbumwSfQVyo
    3AbDFDWh1en1YyO2

    • Pry the battery out using your fingers.

  4. 4vRWENQyK4t1ieVG

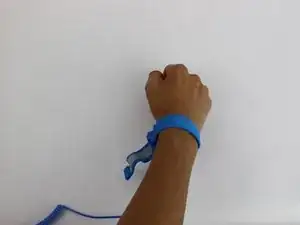

    • Put on the anti-static wrist trap and clip it to a large metal object.

    • If you do not have an anti-static wristband, make sure to touch a large metal object to ground yourself before beginning to work on your replacement. Occasionally touch the metal object.

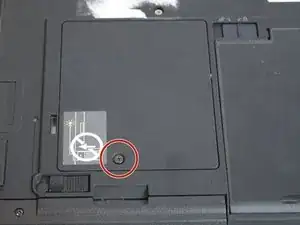

  5. XIKVwH1Rh2Rrgqig
    XIKVwH1Rh2Rrgqig
    eIbWm3DQOIMb2TxC
    yBalvuetkbZoCQcO

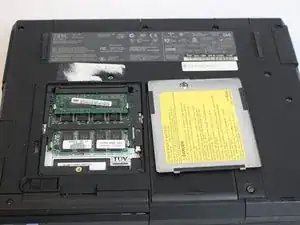

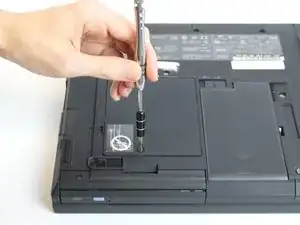

    • Using a screwdriver, loosen but do not remove the captive screw by turning counterclockwise.

    • One 3mm PH0 screw

  6. LlER6sx2B3luk6V5
    LlER6sx2B3luk6V5
    uDRAKT3swvgZREne
    ZrWcN4JQkN4niQtU

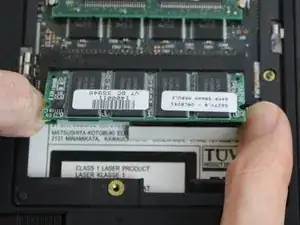

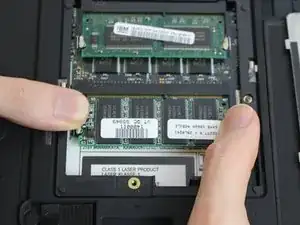

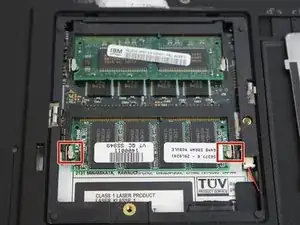

    • Using your fingers, pry the small retention clips apart until the ram pops up.

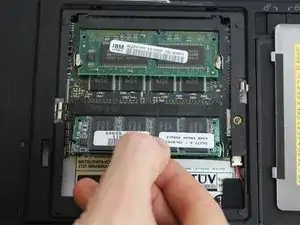

  7. 3xyIRbZDXapwBiR1
    3xyIRbZDXapwBiR1
    JaZyuD1QAnVLyIXt

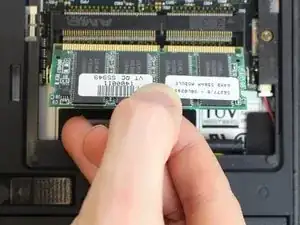

    • Using your fingers, pull straight in line with the ram to remove it.

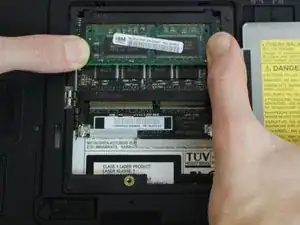

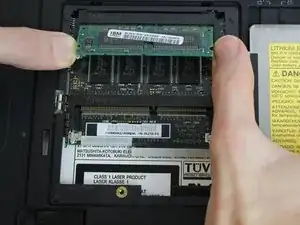

  8. DR1S1u6G4Fr5Sx1w
    DR1S1u6G4Fr5Sx1w
    TeJd2X6xedYUSbWS
    gEs5x2HWogae6X3C

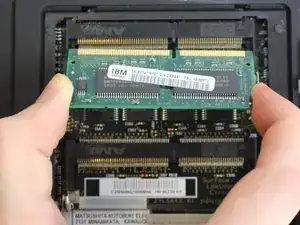

    • Repeat steps 3 and 4 if you want to remove the second ram stick.

    For the sake of people who can't see the images, like me, I looked up how much and what kind of ram it can take.

    Dr. Google says it can take "PC100, 144p SO DIMM, 3.3v, Sync," but I can't say that's correct, haven't tried it yet.

    From what I've read, it takes a max of 288MB, 2 x 128MB sticks. Yes, that is 32MB short of 288, but that''s what was suggested.

    Jason Custer -

Abschluss

To reassemble your device, follow these instructions in reverse order.
