IBM ThinkPad A30 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

  1. LojZOTKUVLIFLI2V
    LojZOTKUVLIFLI2V
    KFTIp3x1sSkAhvjA

    • Flip the ThinkPad over so that it is upside down.

    • Slide the highlighted tab to the left.

    • With your finger on the tab, remove the battery by lifting it upwards away from the laptop.

  2. ee1CFpM13bhSEib4
    ee1CFpM13bhSEib4
    rNdQdpkutsohBEfY

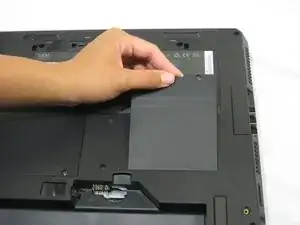

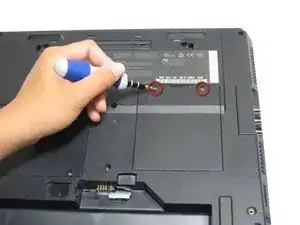

    • Remove the two 5.3mm cover screws.

    • Gently lift the cover containing the RAM.

  3. vwGdHvsshn1FuGHs

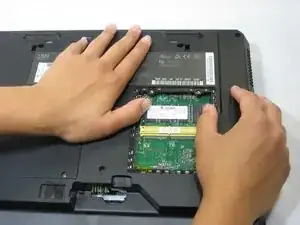

    • Remove RAM module by pressing the two metal pieces outward with your thumbs.

  4. fAKwjMiXm2n55PYX
    fAKwjMiXm2n55PYX
    UfwxXdWpWkbDOeWQ

    • Lift the RAM module up and out, away from the yellow connector.

    • Place the RAM module away from any magnets or static electricity prone areas.

Abschluss

To reassemble your device, follow these instructions in reverse order.
