IBM ThinkPad A31 CPU Replacement

Geschrieben von: Thomas Stone
  • Kommentare: 0
IBM ThinkPad A31 CPU Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

15 Minuten

Einleitung

  1. oFgel2lbxkgxxquL
    oFgel2lbxkgxxquL
    aQ2oYyHjMkp3FKyF
    Sl6km5QFBybAYptT

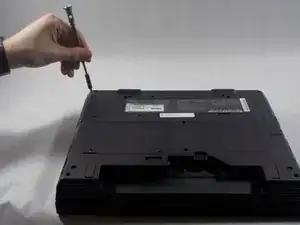

    • Remove the 6mm screw

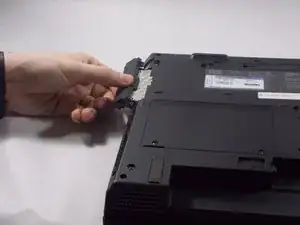

    • Pull out the hard drive

    • The hard drive might be a little tough to pull out

  2. 6YGJFAGUWFAbhC5Y
    6YGJFAGUWFAbhC5Y
    CFr5hdZheUuPUCxH
    noe5LULyA1nwK51J

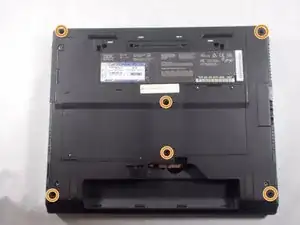

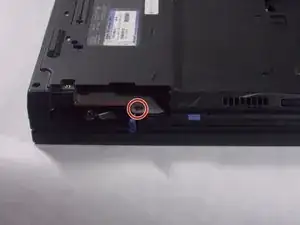

    • The sticker is to keep the warranty on the laptop so once removed the warranty is void

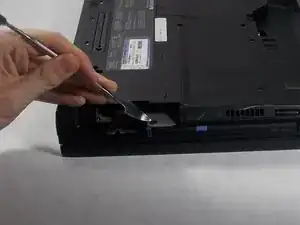

    • Peel the sticker and remove the 15mm screw

    • Remove all 6 of the 16mm screws

  3. bRbqTApQ13xXfJqD
    bRbqTApQ13xXfJqD
    uMQdQm4avRwYKFdy

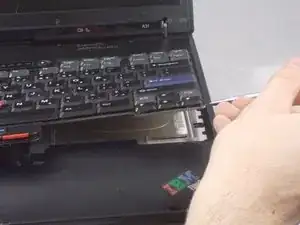

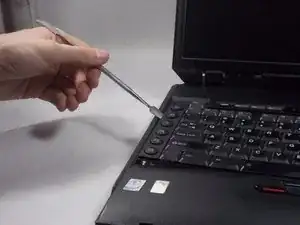

    • use a prying tool and insert it on the cracks on the sides of the keyboard and lift gently until you here a click

    • repeat this step on all sides of the keyboard until the keyboard is completely detached from the laptop

  4. mOPO5JS2eBlUc5Eo
    mOPO5JS2eBlUc5Eo
    iXCNvFwGUPyV6shP
    bPHYjFypfHSarP6f

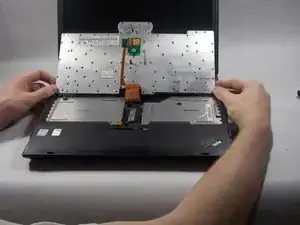

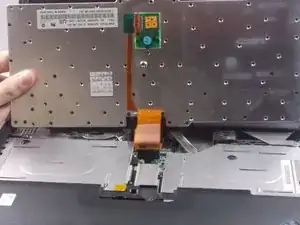

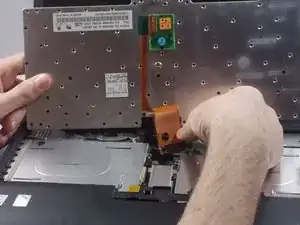

    • Lift the keyboard and remove the keyboard ribbon cable from the laptop

  5. ZQbKyOrtXWDRCkGb
    ZQbKyOrtXWDRCkGb
    qJCkyUZsKluCIGQu

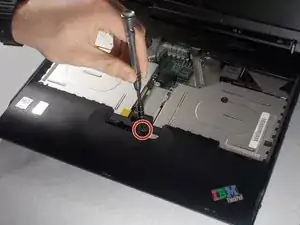

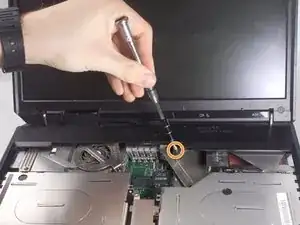

    • Remove the one 21mm screw

    • Remove the 6mm screw

  6. MhhGLRBiQIHQF2ZF
    MhhGLRBiQIHQF2ZF
    FBZGmVyebIAeSwoD

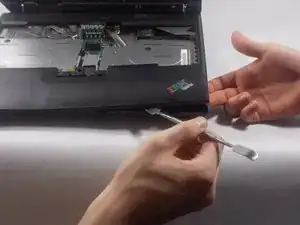

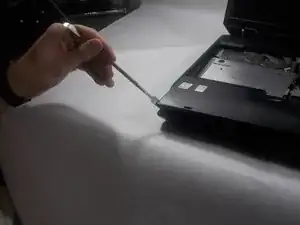

    • Take the tool and run it under the black case.

  7. adBjdaVFe21p2aEd
    adBjdaVFe21p2aEd
    upGuTTHB1dTRsy22
    YQXuKjLK2vMGQNMO

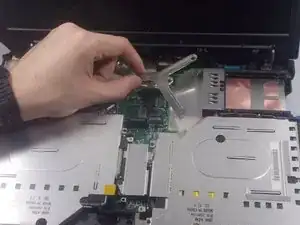

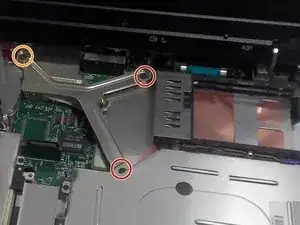

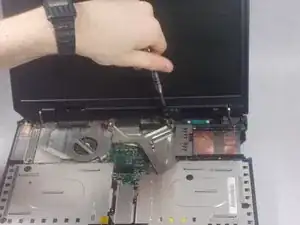

    • Unscrew the 2 (17mm) screws

    • Unscrew the 6mm screw

  8. YDBye1WNoibMMLqh
    YDBye1WNoibMMLqh
    MWxBP1esYP6MV6Up

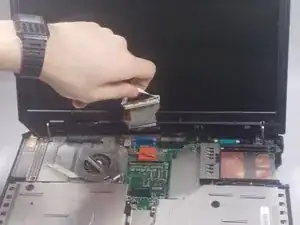

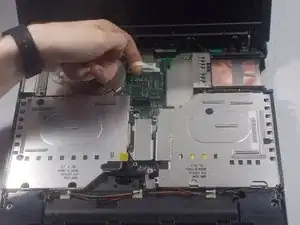

    • Gently disconnect the white display ribbon cable

    • Pulling on the ribbon cable too hard could result in worse or faulty connection.

  9. ZuWMlUaLstryPBkY
    ZuWMlUaLstryPBkY
    WFBBW4YuWuItKJSh
    iISwtgkfSG6GVohj

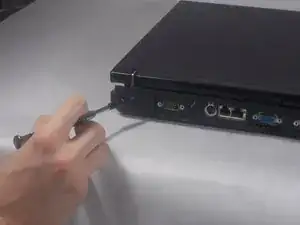

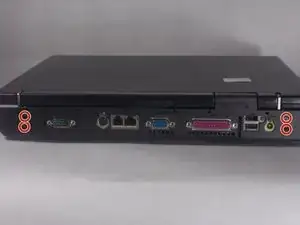

    • Unscrew 4 (6mm) screws

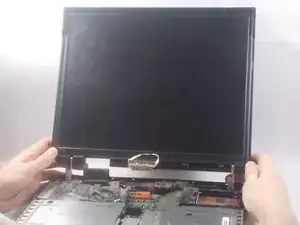

    • Lift screen straight up

    • If not lifted straight up the screen could get damaged

  10. fCuGpFPVCV2PFXOX
    fCuGpFPVCV2PFXOX
    RCD15RCHdlwNF3Ag

    • Flip the ThinkPad over so that it is upside down.

    • Push latch switch to the left.

    • Gently lift the battery out and away from the ThinkPad

    • You have to hold the latch to the left while you remove the battery. Simply pushing once will not unlock the battery

  11. UM13K1ReJgM4tRI2
    UM13K1ReJgM4tRI2
    mpj2BRxFFFJXsiNJ
    JkSshVRCcSL1oBHy

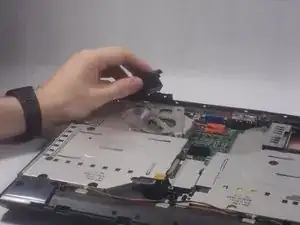

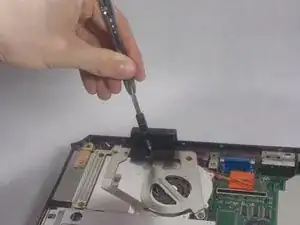

    • Remove the 6mm screw

    • LIft the bracket out

  12. MHiGXgJRuNx3ZSHG
    MHiGXgJRuNx3ZSHG
    Ghr1cIlB5MeW5lYs
    cG3BE1fxBXLfIU5y

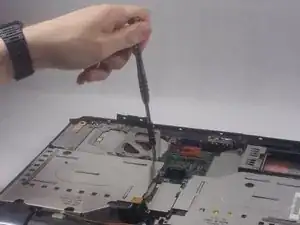

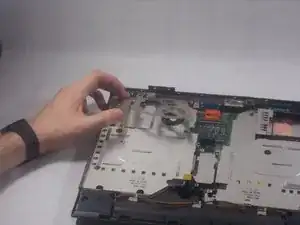

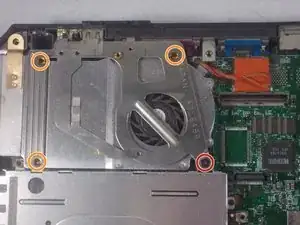

    • Remove one 6mm screw

    • Remove 3 18mm screws

    • Take off the bracket on the CPU fan

  13. J4AJAjXKEwFOdtNA
    J4AJAjXKEwFOdtNA
    WQabfwsnZLRY2LlB
    YUjq6Vpy2mGvlhRb

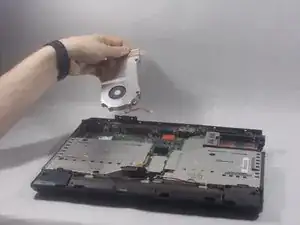

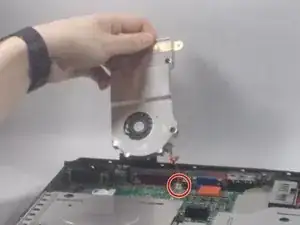

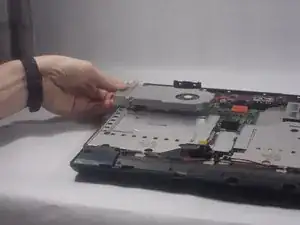

    • Lift the CPU fan

    • Pull out the cable attached to the motherboard

  14. AgYWfLuJG3dqXE5d
    AgYWfLuJG3dqXE5d
    HZmkOcAJAuYRArVj

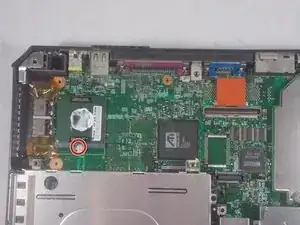

    • Turn the locking screw to unlock with the flat head screwdriver

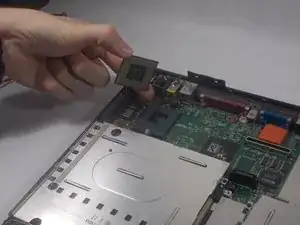

    • LIft the CPU out

Abschluss

To reassemble your device, follow these instructions in reverse order.
