IBM ThinkPad T30 Processor Replacement

Flip the ThinkPad upside down with the bottom facing you.

Slide the latch on the underside of the ThinkPad to the right into the unlock position.

While holding the latch in the unlock position, lift the battery out with your other hand.

Begin by removing the two black 16 mm Phillips #0 screws. The screws can be identified by the two notches next to each screw. One (marked in red) is near the battery lock and the other (not pictured) is next to the Wi-Fi cover.

Push up the bottom of the keyboard by poking your finger through the hole to the right of the yellow bios battery. You will feel slight resistance.

Lift the keyboard to expose the ribbon connector and lean it against the computer screen to keep the ribbon intact.

Use the plastic opening tool to gently pry the connector up from the motherboard.

You can now safely remove the keyboard.

Remove the three 4 mm Phillips #0 screws securing the fan assembly.

Using the plastic opening tool, gently pry the heat sink assembly up.

Using the plastic opening tool, gently lift the white connector out of its socket on the motherboard.

Follow iFixit's guide for [Ungültiger Anleitungslink] for a detailed explanation.

To remove the processor, set the dial on the processor socket to unlock using a small screwdriver

Unscrew until processor looks like it "lifts" a little.

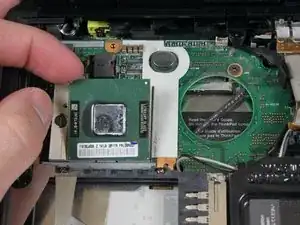

Gently lift up one side of the processor to unseat, then remove completely from device.
